FS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder

FS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder thumbnail-1
FS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Shining
Model Number:
FS-33
Contact Supplier Request Quote Chat Now
SHINING E&E INDUSTRIAL CO., LTD.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Shining
Model Number FS-33
Type Fuse Holder

Specifications

FS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder
Rating: 600V,32A,3P
Size: 72*52.5*56mm
Wire Size: AWG8-20/8.4mm2

FS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder

Product Description

•Item number: FS-033

•Rating: 600V, 32A, 3P

•Size: 72.0x52.5x56.0mm (LxWxH)

•Wire Size: AWG 20-8/ 0.52-8.4mm

•Molded from UL94-V2 material with excellent flame- and shock-resistance

•Suitable for 10x38mm fuse

•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.

•Without LED Indicator

Packaging & Shipping

•Packing: 5pcs/box, 100pcs/20box, N.W. :19.6kgs /carton

•Webpage: FS-03X Series 10x38 RT18-32 Cartridge 600V 32A Fuse Holder

FS-033 RT18-32 Without LED Indicator Inline Auto Fuse HolderFS-033 RT18-32 Without LED Indicator Inline Auto Fuse Holder

Item No. FS-031 FS-032 FS-033
Specifications/Dimensions
Length (L) 72 mm 72 mm 72 mm
Width (W) 17.5 mm 35 mm 52.5 mm
Height (H) 56 mm 56 mm 56 mm
Poles 1 2 3
Rated Toque [in-lb] 17 in-lb 17 in-lb 17 in-lb
Electrical Specifications
Rated Voltage 600 V 600 V 600 V
Rated Current 32 A 32 A 32 A
Wire Size (AWG) #8-20 AWG #8-20 AWG #8-20 AWG
Wire Size [mm2] 0.52~8.4 mm2 0.52~8.4 mm2 0.52~8.4 mm2
Materials
Body Materials PBT PBT PBT
Color White White White
Flame Retarded Grade UL 94V-0, V-2 UL 94V-0, V-2 UL 94V-0, V-2
Temperature [oC] 120oC 120oC 120oC
Accessories & Parts
Ava. Fuse Specifications 10x38 mm fuse (13/32"x 1 1/2") 10x38 mm fuse (13/32"x 1 1/2") 10x38 mm fuse (13/32"x 1 1/2")
Indicators N/A N/A N/A

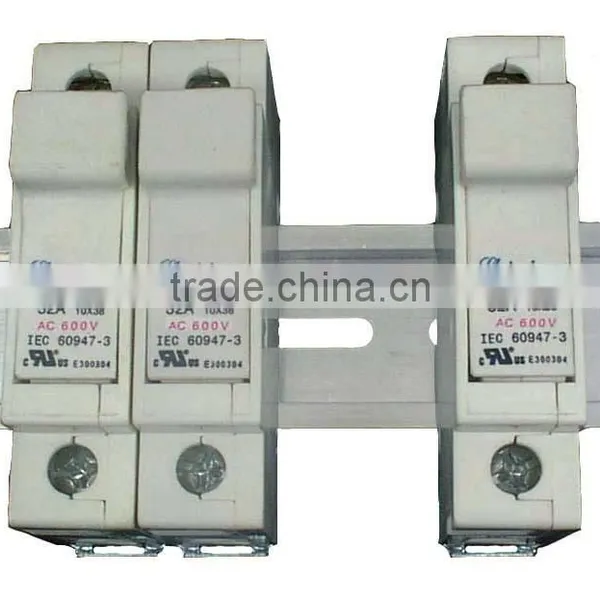

DIN Rail Adapter Embedded Embedded Embedded
Ava. DIN Rail TA-001A, TA-001S (35mm DIN Rail) TA-001A, TA-001S (35mm DIN Rail) TA-001A, TA-001S (35mm DIN Rail)
Ava. End Clamp TA-002, TA-002H TE-002 TF-ECL, TF-ECH TA-002, TA-002H TE-002 TF-ECL, TF-ECH TA-002, TA-002H TE-002 TF-ECL, TF-ECH
Approval N/A N/A N/A
