SCMOS Series USB2.0 CMOS Microscope 23.3mm Eyepiece Camera

SCMOS Series USB2.0 CMOS Microscope 23.3mm Eyepiece Camera thumbnail-1
SCMOS Series USB2.0 CMOS Microscope 23.3mm Eyepiece Camera photo-1
Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ToupCam Camera
Model Number:
SCMOS Series Camera
Contact Supplier Request Quote Chat Now
Hangzhou ToupTek Photonics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ToupCam Camera
Model Number SCMOS Series Camera

SCMOS Series USB2.0 CMOS 23.3mm Eyepiece Camera

     ToupTek SCMOS is an economic version with simple and compact structure CMOS  eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.

    The SCMOS eyepiece camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
     Also the SCMOE comes with advanced video & image processing application ToupView;
     The SCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.

     With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also change the stereo microscope to digital stereo microscope.

  • Microscope eyepiece camera with 23.2 diameter and compact size;
  • Easy to extend to C or CS- Mount camera with high quality lens(optional);
  • High-quality camera with Aptina CMOS sensor;
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
  • With advanced video & image processing application ToupView;
  • Custom programmable with SDK provided;



Order Code Sensor Sensor Size(mm) Pixel(μm) FPS/Resolution Binning Exposure

SCMOS05100KPA
TP505100A

Aptina(C)

1/2.5"(5.70x4.28)

2.2x2.2

2@2592x1944
3@2048x1536
5@1600x1200
7.5@1280x1024

N/A

Auto

SCMOS03100KPA
TP503100A

Aptina(C)

1/2.7" (4.506x3.379)

2.2x2.2

3@2048x1536
5@1600x1200
7.5@1280x1024

N/A

Auto



SCMOS02000KPA
TP502000B

Aptina(C)

1/3.2"(4.73x3.52)

2.8x2.8

5@1600x1200
7.5@1280x1024
7.5@1280x960
20@800x600

N/A

Auto

SCMOS01300KPA
TP501300A

Aptina(C)

1/3"(4.60x3.70)

3.6x3.6

7.5@1280x1024
12.5@1024x768
12.5@800x600

N/A

Auto

SCMOS00350KPA
TP500350A

Aptina(C)

1/4"(3.58x2.69)

5.6x5.6

30@640x480

N/A

Auto



OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White balance

Auto

Color Rendering Technique

NA

Capture/Control API

Native C/C++, Directshow, Twain

Recording System

Still Picture and Movie

Cooling System*

Natural
OPERATING ENVIRONMENT

Operating Temperature

-10℃~ 50℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port
SOFTWARE ENVIRONMENT

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM

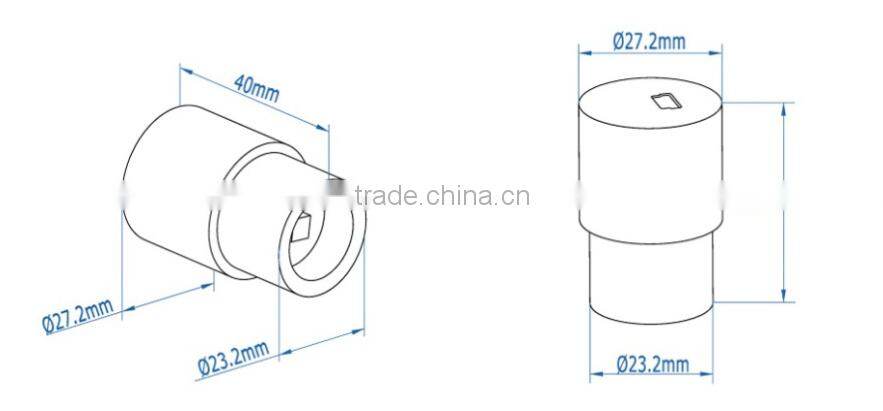

Dimension of SCMOS Series Camera

Installation drawings(Click to enlarge). The SCMOS Camera body, made from aluminum alloy blackening, ocular ousing:Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
SCMOS Series USB2.0 CMOS Microscope 23.3mm Eyepiece Camera
Dimension of SCMOS Series Camera

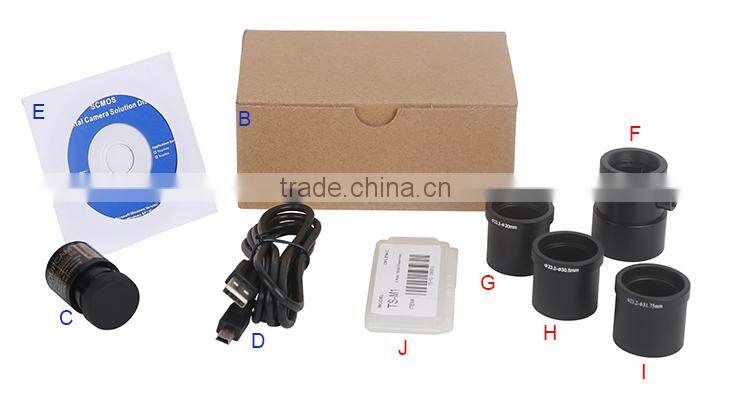

Packing Information of SCMOS Series Camera

SCMOS Series USB2.0 CMOS Microscope 23.3mm Eyepiece Camera

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/ box)

C

SCMOS series USB2.0 C-Mount camera

D

High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m

E

CD (Driver & utilities software, Ø8cm)
Optional Accessory
F C-Mount Adapter Housing:108027(HS502)

G

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

H

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
I
 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

J

Calibration Kit

 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
