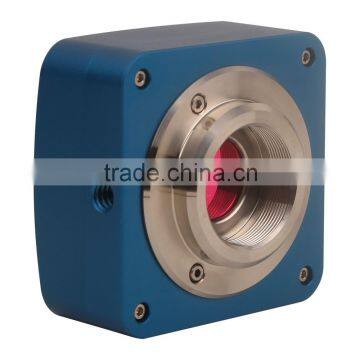

UCMOS Series C-mount USB2.0 CMOS Camera
|
UCMOS: ToupTek UCMOS camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. UCMOS camera hardware resolutions range from 0.35M to 25M and comes with the Integrated zinc aluminum alloy compact housing. UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API; The UCMOS can be widely used in brightfield light environment and microscope image capture and anaysis with moderate frame rate. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(μm) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
UCMOS14000KPA |
MT9F002(C) |
1/2.3"(6.451x4.603) |
1.4x1.4 |
1.8@4096x3288 |
1x1,2x2,4x4 |
0.4ms~2000ms |
UCMOS10000KPA |
MT9J003(C) |
1/2.3"(6.44x4.616) |
1.67x1.67 |
1.9@3584x2748 |
1x1,2x2,4x4 |
0.4ms~2000ms |
UCMOS09000KPB |
Special(C) |
1/2.4"(5.825x4.369) |
1.67x1.67 |
11.9@3488x2616 |
1x1,2x2,4x4 |
0.4ms~2000ms |
UCMOS08000KPB |
Special(C) |
1/2.5"(5.451x4.088) |
1.67x1.67 |
1.9@3264x2448 |
1x1,2x2,4x4 |
0.4ms~2000ms |
UCMOS05100KPA |
MT9P001(C) |
1/2.5"(5.7x4.28) |
2.2x2.2 |
5@2592x1944 |
1x1,2x2,4x4 |
0.294ms~2000ms |
UCMOS03100KPA |
MT9T001(C) |
1/2"(6.55x4.92) |
3.2x3.2 |
8@2048x1536 |
1x1,2x2,3x3 |
0.244ms~2000ms |
UCMOS02000KPB |
Special(C) |
1/2.6"(5.12x3.84) |
3.2x3.2 |
16@1600x1200 |
1x1,2x2 |
0.244ms~2000ms |
UCMOS01300KPA |
MT9M111(C) |
1/3"(4.60x3.7) |
3.6x3.6 |
15@1280x1024 |
1x1,2x2,4x4 |
0.14ms~2000ms |
UCMOS01300KMA |
MT9M001(C) |
1/2"(6.66x5.32) |
5.2x5.2 |
20@1280x1024 |
1x1 |
0.14ms~500ms |
UCMOS00350KPA |
MT9V011(C) |
1/4"(3.58x2.69) |
5.6x5.6 |
30@640x480 |
1x1,2x2 |
0.111ms~192.6ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

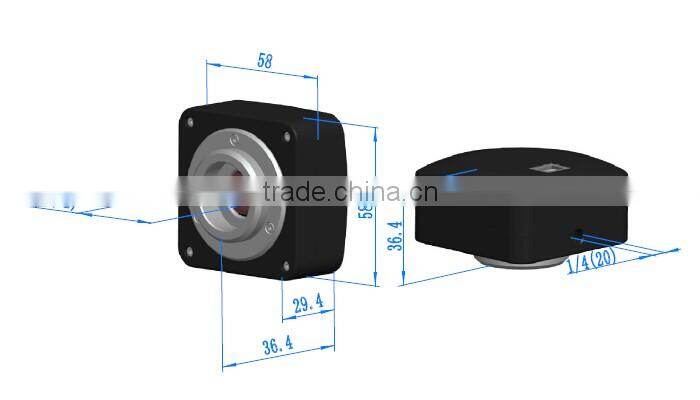

Dimension of UCMOS Series Camera
| Installation drawings(Click to enlarge). The UCMOS Series USB2.0 Camera body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension of UCMOS Series Camera |

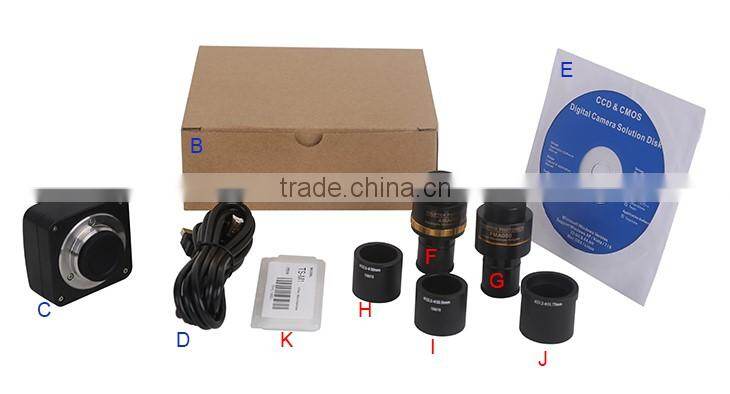

Packing Information of UCMOS Series Camera
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|||
B |
Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) |
|||
C |
UCMOS series USB2.0 C-mount CMOS camera |
|||
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
|||
E |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||

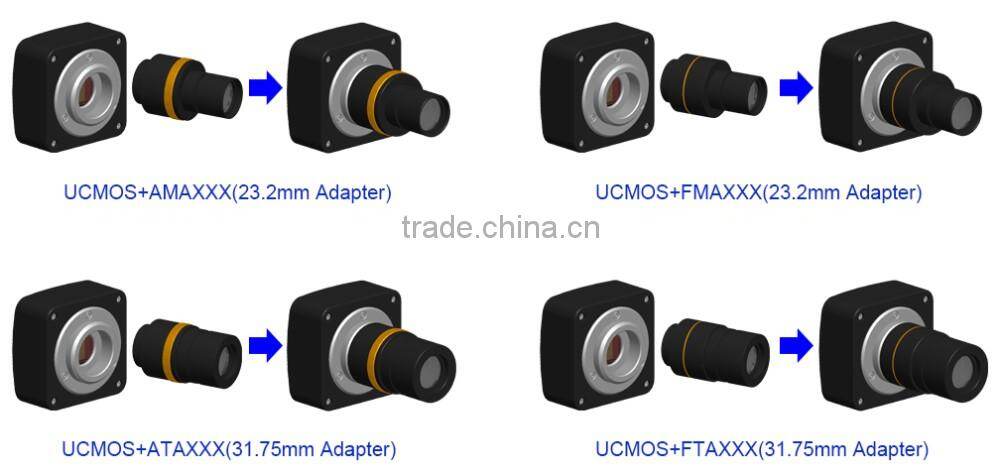

Extension of UCMOS Series Camera with Microscope or Astronomy Adaptor
| Application | Picture | |
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Astronomy Camera | ||
