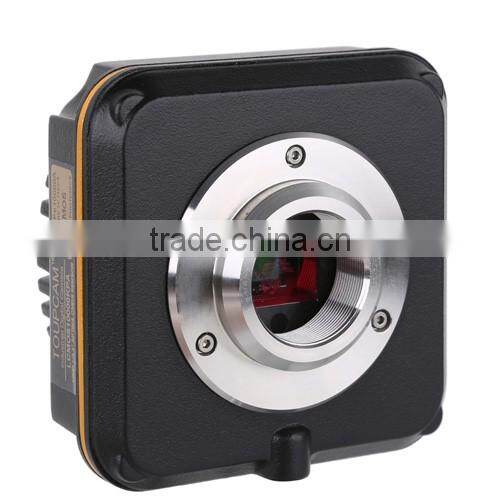

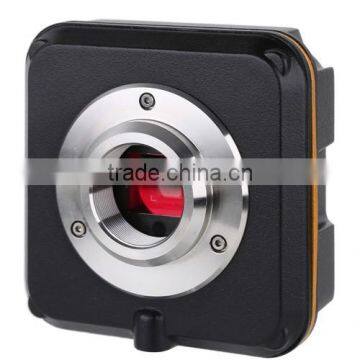

LCMOS Series C-mount USB2.0 CMOS Camera
|
ToupTek LCMOS camera is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB2.0 is used as the data transfer interface. LCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API; The LCMOS can be widely used in brightfield environment and microscope image capture and analysis with moderate speed. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(μm) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
LCMOS14000KPA |
MT9F002(C) |
1/2.3"(6.451x4.603) |
1.4x1.4 |
2.7@4096x3288 |
1x1,2x2,4x4 |
0.4ms~2000ms |
LCMOS10000KPA |
MT9J003(C) |
1/2.3"(6.44x4.616) |
1.67x1.67 |
3.7@3584x2748 |
1x1,2x2,4x4 |
0.4ms~2000ms |
LCMOS09000KPB |
Special(C) |
1/2.4"(5.825x4.369) |
1.67x1.67 |
3.9@3488x2616 |
1x1,2x2,4x4 |
0.4ms~2000ms |
LCMOS08000KPB |
Special(C) |
1/2.5"(5.451x4.088) |
1.67x1.67 |
4.4@3264x2448 |
1x1,2x2,4x4 |
0.4ms~2000ms |
LCMOS05100KPA |
MT9P001(C) |
1/2.5"(5.7x4.28) |
2.2x2.2 |
6.8@2592x1944 |
1x1,2x2,4x4 |
0.294ms~2000ms |
LCMOS03100KPA |
MT9T001(C) |
1/2"(6.55x4.92) |
3.2x3.2 |
11.5@2048x1536 |
1x1,2x2,3x3 |
0.244ms~2000ms |
LCMOS03100KPB |
IMX036(C) |
1/2.8"(5.36x3.97) |
2.5x2.5 |
12@2048x1536 |
1x1,2x2,3x3 |
0.244ms~2000ms |
LCMOS01300KPA |
MT9M111(C) |
1/3"(4.60x3.7) |
3.6x3.6 |
15@1280x1024 |
1x1,2x2,4x4 |
0.14ms~2000ms |
LCMOS01200KPB |
AR0130(C) |
1/3" (4.60x3.70) |
3.6x3.6 |
28@1280x960 |
1x1,2x2 |
0.14ms~2000ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

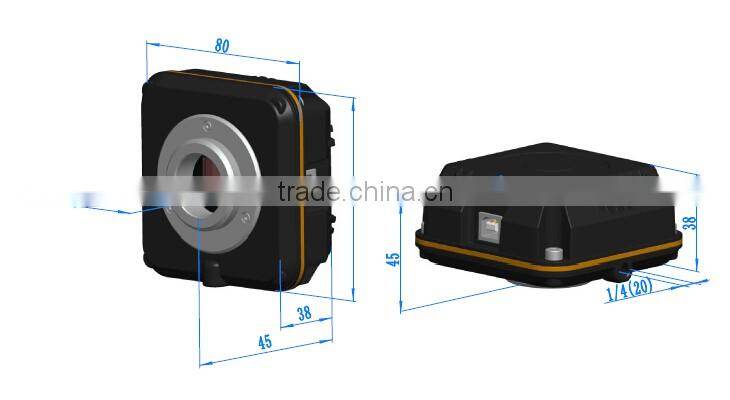

Dimension of LCMOS Series Camera
| Installation drawings(Click to enlarge). The LCMOS Series USB2.0 CMOS Camera body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension of LCMOS Series Camera |

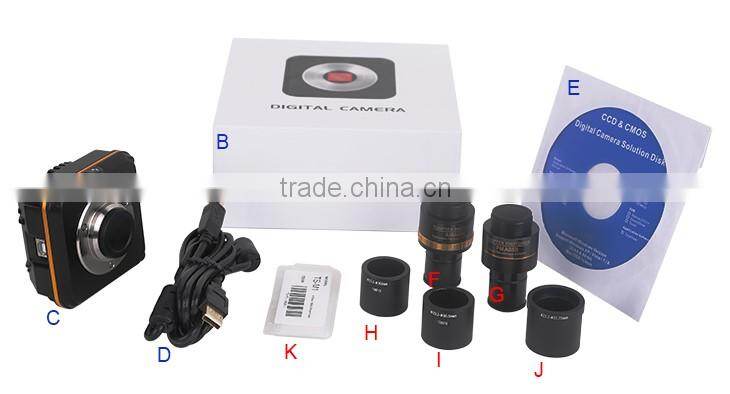

Packing Information of LCMOS Series Camera
|
| Packing Information of LCMOS Series Camera |
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:40cm W:36cm H:36cm (16pcs, 12~17Kg/ carton), not shown in the photo |
|||
B |
Gift box L:16.4cm W:16.4cm H:7.5cm (0.8~1.0Kg/ box) |
|||
C |
LCMOS series USB2.0 C-mount CMOS camera |
|||
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
|||
E |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||

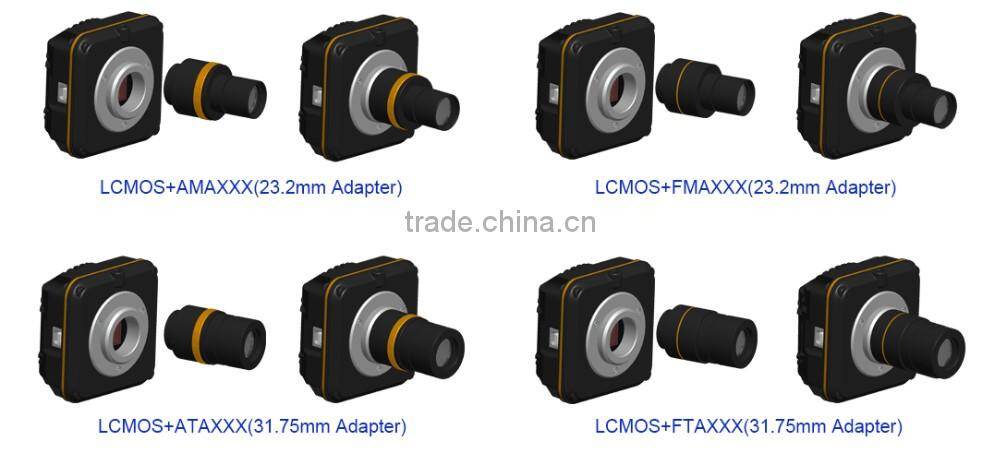

Extension of LCMOS Series USB3.0 CMOS Camera with Microscope or Telescope Adaptor
Application |
Picture |
|
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Telescope Camera | ||
