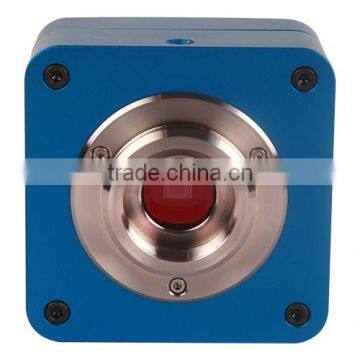

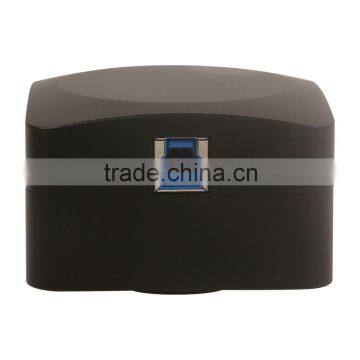

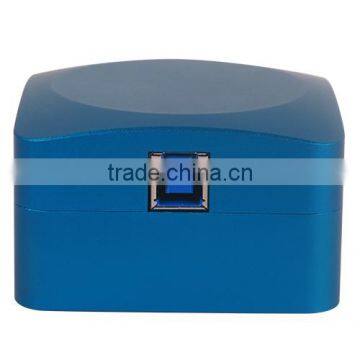

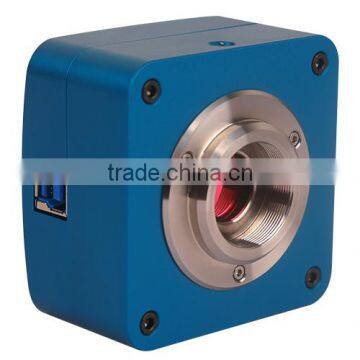

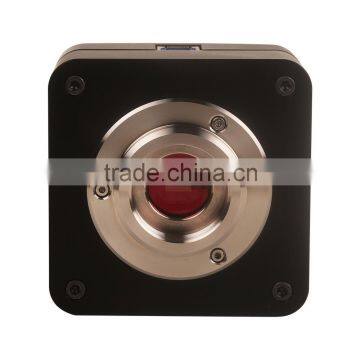

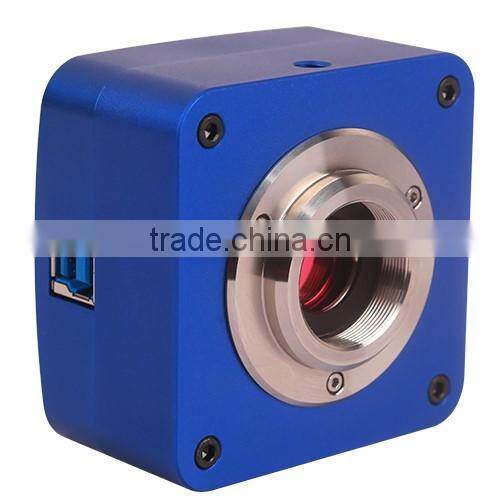

U3CCD Series C-mount USB3.0 CCD Camera
|
ToupTek U3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB3.0 is used as the data transfer interface. U3CCD camera hardware resolutions range from 2.8M to 6M and come with the integrated CNC aluminum alloy compact housing. U3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The U3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate. |
| Order Code | Sensor & Size(mm) | Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
U3CCD06000KPA |
6.0M/ICX694AQG(C) 1"(14.6x12.8) |
4.54x4.54 |
880mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.22ms~3600s |
U3CCD06000KMA |
6.0M/ICX694ALG(M) 1"(14.6x12.8) |
4.54x4.54 |
1000mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.22ms~3600s |
U3CCD02800KPA |
2.8M/ICX674AQG(C) 2/3"(10.7x9.2) |
4.54x4.54 |
800mv with 1/30s |
15@1940x1460 |
1x1 |
0.12ms~3600s |
U3CCD02800KMA |
2.8M/ICX674ALG(M) 2/3"(10.7x9.2) |
4.54x4.54 |
950mv with 1/30s |
15@1940x1460 |
1x1 |
0.12ms~3600s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#/VB.NET, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10 Degree 50 Degree/p> |
Storage Temperature |
-20Degree~ 60Degree |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
USB3.0 |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

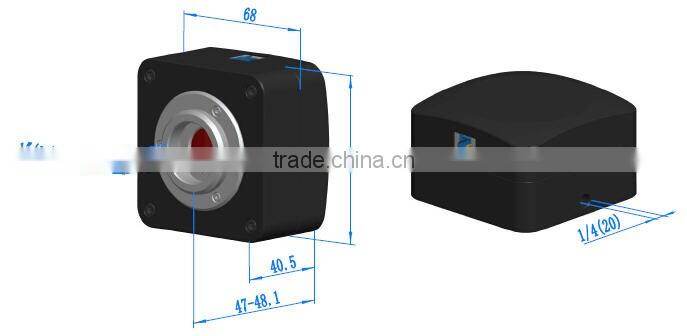

Dimension of U3CCD Series Camera
| Installation drawings(Click to enlarge). The U3CCD Series USB3.0 CCD Camerabody, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension for U3CCD Series Camera |

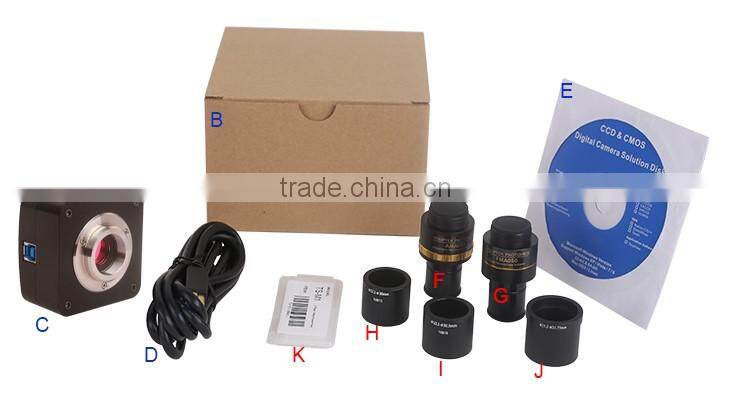

Packing Information of U3CCD Series Camera
|
| Packing Information of U3CCD Series Camera |
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|||
B |
Gift box L:15cm W:15cm H:10cm (0.7~0.75Kg/ box) |
|||
C |
U3CCD series camera |
|||
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
|||
| E | CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-Mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
| J | 108016(Dia.23.2mm to 31.5mm Ring)/ Adaptor rings for 31.5mm eyepiece tube |
|||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||

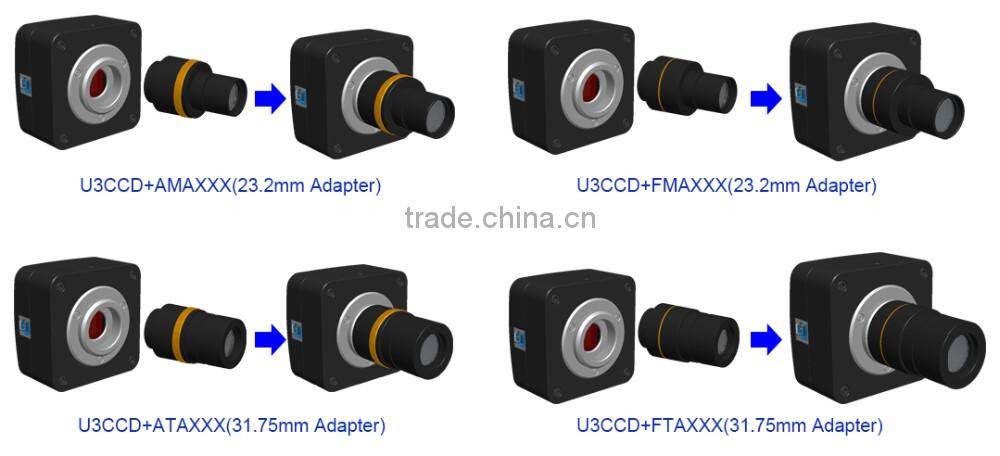

Extension of U3CCD Series Camera with Microscope Astronomy Adapter
Extension |
Picture |
|
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Telescope Camera | ||
