MTR3CCD Series C-mount USB3.0 Temature Regulated CCD Camera
|
MTR3CCD:ToupTek MTR3CCD is an Microscope Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. MTR3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The MTR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis. |
| Order Code | Sensor & Size(mm) | Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
MTR3CCD06000KPA |
6.0M/ICX694AQG(C) 1"(14.6x12.8) |
4.54x4.54 |
880mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.22ms~3600s |
MTR3CCD06000KMA |
6.0M/ICX694ALG(M) 1"(14.6x12.8) |
4.54x4.54 |
1000mv with 1/30s |
7.5@2748x2200 |
1x1 |
0.22ms~3600s |
MTR3CCD02800KPA |
2.8M/ICX674AQG(C) 2/3"(10.7x9.2) |
4.54x4.54 |
800mv with 1/30s |
15@1940x1460 |
1x1 |
0.12ms~3600s |
MTR3CCD02800KMA |
2.8M/ICX674ALG(M) 2/3"(10.7x9.2) |
4.54x4.54 |
950mv with 1/30s |
15@1940x1460 |
1x1 |
0.12ms~3600s |
MTR3CCD01400KPA |
1.4M/ICX825AQA(C) 2/3"(10.7x8.7) |
6.45x6.45 |
2000mv with 1/30s |
25@1360x1024 |
1x1 |
0.12ms~3600s |
MTR3CCD01400KMA |
1.4M/ICX825ALA(M) 2/3"(10.7x8.7) |
6.45x6.45 |
2000mv with 1/30s |
25@1360x1024 |
1x1 |
0.12ms~3600s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Two-stage TE-cooling System -45 Degree below Camera Body Temperature |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10 Degree~ 50 Degree |
Storage Temperature |
-20 Degree~ 60 Degree |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

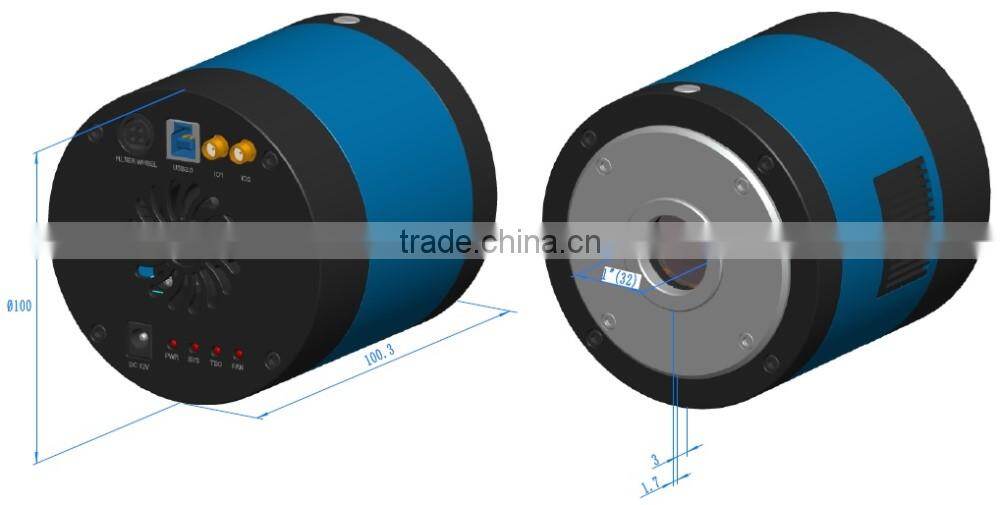

Dimension of MTR3CCD Series Camera
| Installation drawings(Click to enlarge). The MTR3CCD Series USB3.0 CCD Camerabody, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension for MTR3CCD Series Camera |
Packing Information of MTR3CCD Series Camera
|

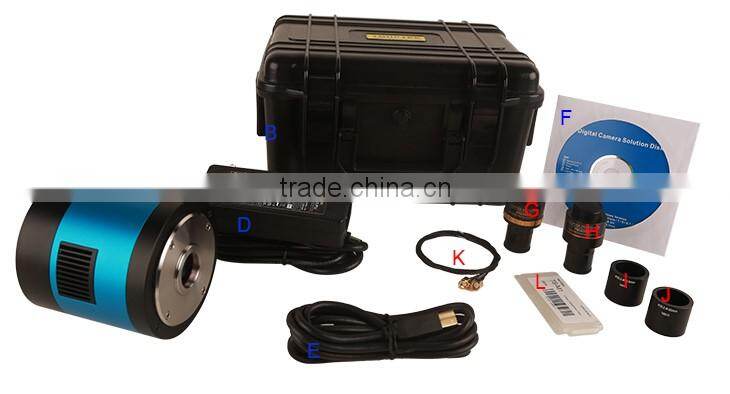

| Packing Information of MTR3CCD Series Camera |
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|||
B |
Gift box L:28cm W:23cm H:15cm (2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm |
|||
C |
MTR3CCD series camera |
|||
D |
Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A |
|||
E |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
|||
| F | CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
G |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-Mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
H |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
I |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
J |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
| K | External trigger control line | |||
L |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
Extension of MTR3CCD Series Camera with Microscope Adapter
Extension |
Picture |
|
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Telescope Camera | ||
