XCAM1080PHA C-mount HDMI+USB CMOS Camera
|
XCAM1080PHA camera is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal. For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series. XCAM1080PHA camera can be used for microscope, industrial stereo microscope, on-line inspection et al. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(um) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
XCAM1080PHA |
Sony IMX236(C) |
1/2.8"(5.5x3.4) |
2.8x2.8 |
1x1 |
0.4ms~999ms |
| Interface & Button Functions | |||||
|---|---|---|---|---|---|
|
USB |
USB Camera or USB Mouse |
|||
HDMI |
HDMI Output |
||||
DC12V |
12V Power in |
||||
SD |
SD Card Slot |
||||
ON/OFF |
Power On/Off Switch |
||||
| LED | Power On Indicator | ||||
| Other Specification for HDMI Output | |||||
| UI Operation | With USB Mouse | ||||
| Image Capture | High Speed in SD Card | ||||
| Video Record | 1080P 30fps in SD Card | ||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
||||
| Other Specification for USB Output | |||||
| White Balance | Auto White Balance | ||||
Color Technique |
Ultra-FineTM Color Engine (USB) |
||||
Capture/Control API |
Standard UVC for Windows/Linux/Mac(USB) |
||||
Recording System |
Still Picture or Movie (USB) |
||||
| Software Environment (for USB2.0 Connection) | |||||
Operating System |
Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit) |
||||
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
||||
Memory:4GB or More | |||||
USB Port:USB2.0 High-speed Port | |||||
Display: 19” or Larger | |||||
CD-ROM | |||||
| Operating Environment | |||||
Operating Temperature(in Centidegree) |
-10~ 50 |
||||
Storage Temperature(in Centidegree) |
-20~ 60 |
||||
Operating Humidity |
30~80%RH |
||||
Storage Humidity |
10~60%RH |
||||
Power Supply |
DC 12V/2A Adaptor |
||||
| Overall Dimensions | |||||
Width x Depth x Height |
78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) |
||||
Shipping Weight |
0.47 kg (1.0lbs) |
||||
XCAM1080PHA and Microscope
 |
|

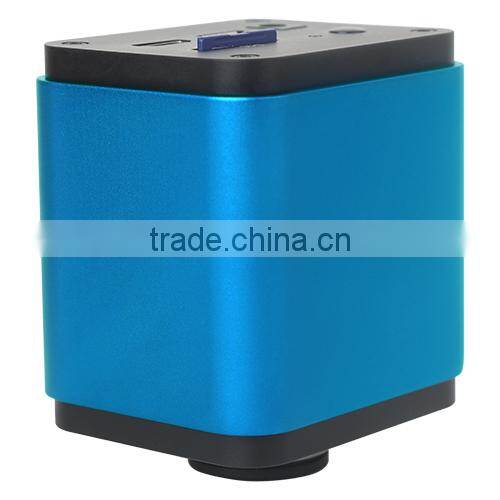

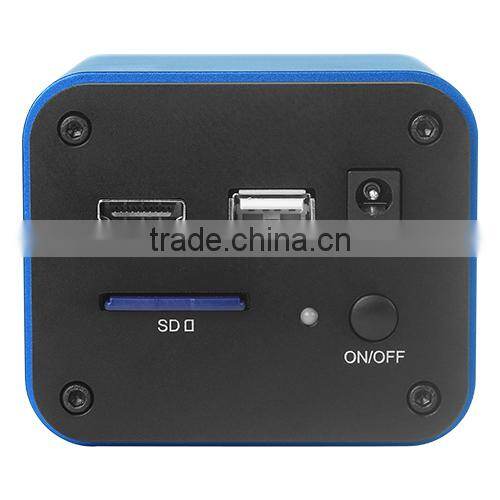

| Front View of the XCAM1080PHA Camera | Back View of the XCAM1080PHA Camera |
|
|

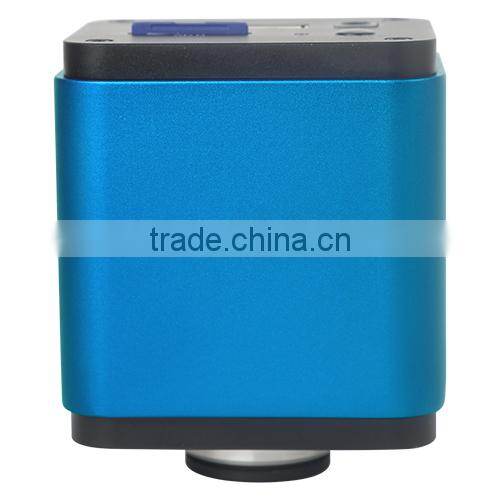

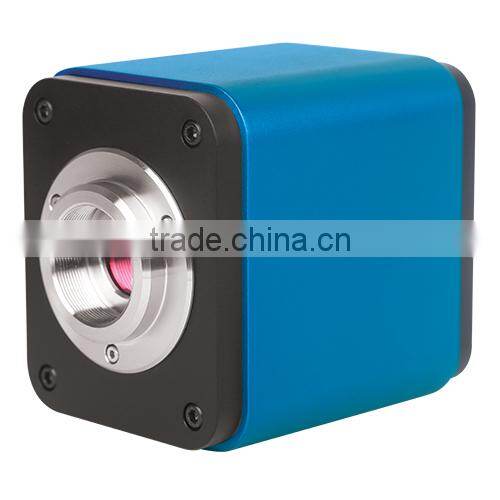

| Normal View | Side View |
| |

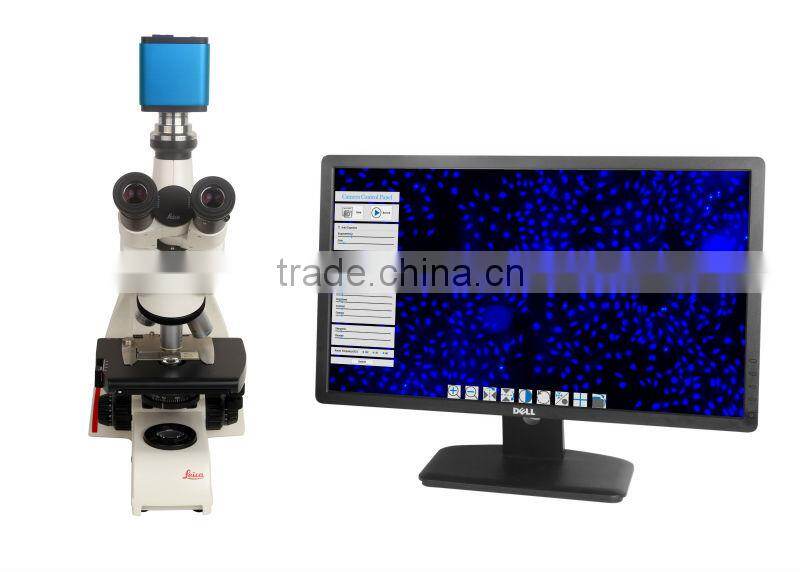

| XCAM1080PHA Camera and Microscope | |
| |

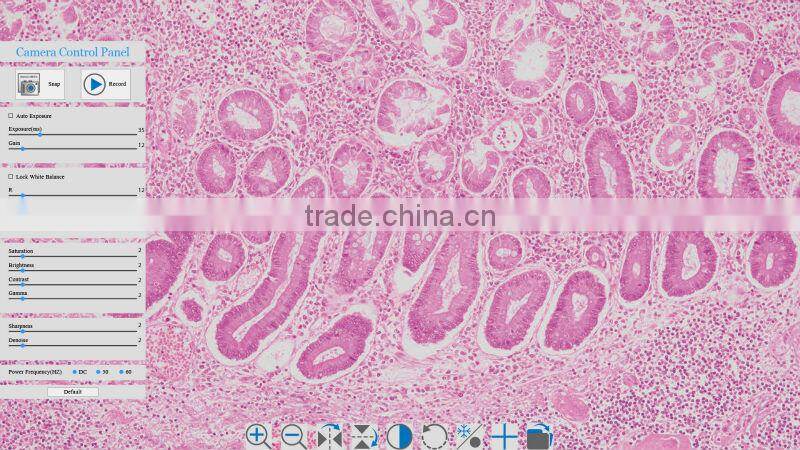

| UI of the XCAM1080PHA Camera | |
Potiential Application
Scientific research, education (teaching, demonstration and academic exchanges);
Digital laboratory, medical research;
Industrial visual (PCB examination, IC quality control);
Medical treatment (pathological observation);
Food (microbial colony observation and counting);
Aerospace, military (high sophisticated weapons);

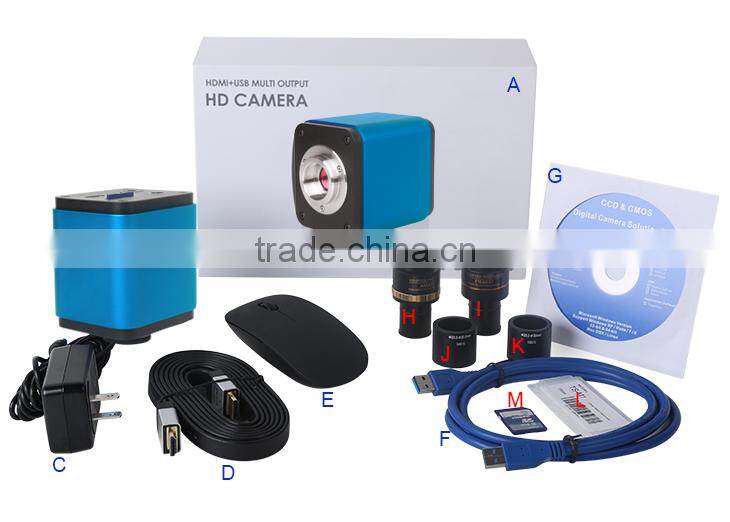

Packing Information for XCAM1080PHA
|
| Packing Information for XCAM1080PHA camera |
| Standard Packing List | ||||
|---|---|---|---|---|
A |
Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box) |
|||
B |
HDMI+USB+SD Card all in 1 camera |
|||
C |
Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
|||
| D | HDMI Cable | |||
| E | USB Mouse | |||
F |
High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m |
|||
G |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
H |
Adjustable |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108008/ATA037 |
|||
I |
Fixed |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 |
|||
| Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
J |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
K |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
L |
Calibration Kit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
| M | SD Card(4G or 8G) | |||

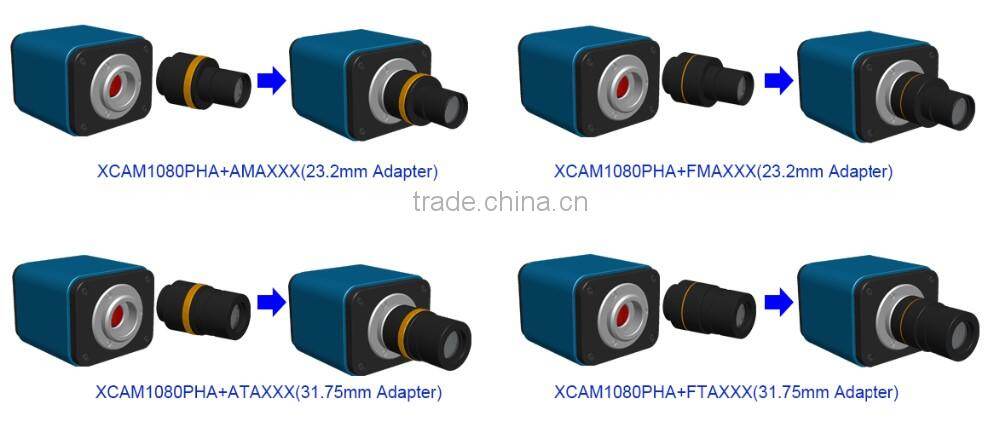

Extension of XCAM1080PHA with Microscope or Telescope Adaptor
| Application | Picture | |
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Telescope Camera: | ||
