XCAM0720PHB C-mount HDMI CMOS Camera
- Through standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
- High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
- 1280 × 720 (720P) resolutions to match the current high-definition displayer on the market.
- XCAM720KPB embedded XCamView based on the Qt platform. The camera characteristic can be controlled by the mouse. The other basic processing and choosing can also be realized by the XCamView.
- For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
| Order Code | Sensor & Size(mm) | Pixel(um) |
G Responsivity Dynamic range SNRmax |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
XCAM0720PHB |
1.2M/AR0130(C) |
3.75x3.75 |
6.5 V/lux-sec |
30@1080x720 |
1x1 |
0.21ms~2000ms |
| HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White balance |
Auto / Manual |
Color Rendering Technique |
Ultra Fine Color Engine |
Cooling System* |
Natural |
| INTERFACE & BUTTON FUNCTION | |
HDMI |
HDMI Output Port |
USB |
USB mouse for XCamView Control |
DC12V |
Power Input Slot |
SD |
SD Card Slot |
| OVERALL DIMENSIONS | |
Width X Depth X Height |
50mm (1.97") X 50mm (1.97") X 61mm (2.4") |
Shipping Weight |
0.47 kg (0.55lbs) |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10 Degree~ 50 Degree |
Storage Temperature |
-20 Degree~ 60 Degree |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V /1A Power Adapter |
| OPTIONAL ACCESSORIES | |
Lens |
C-mount Lens |
Cable |
HDMI Cable |
Memory Card |
SD Card |
Mouse |
USB Mouse/USB Wirless Mouse |
Function Key Description
The camera light indicator flashes about 15s after the power on. The camera will load software, and then the system begins to work. Auto exposure and white balance are the default state now.
 |
| The Back of the XCAM0720PHB |
HDMI : The HDMI output port connected to the HDMI displayer;
USB: USB mouse;
DC 12V: Power in 12V/1A;
LED: The blue LED indicator;
SD: SD card slot;
XCamView for XCAM0720PHB

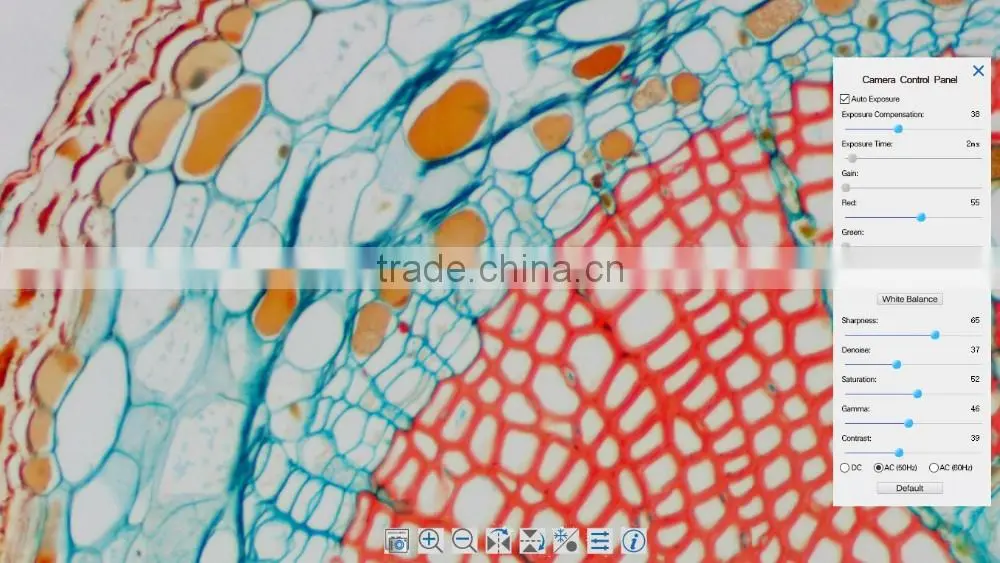

Move mouse to the bottom of the HDMI displayer, the bottom toolbar will be available. The function of each toolbar buttons are described as follows:
|
| The GUI of the embeded camera control panel of XCamView in XCAM720PHB |
|
| XCamView toolbar for XCAM0720KPB |
- 1: Image Capture
- 2: Digital Zoom In
- 3: Digital Zoom Out
- 4: Horizontal Flip
- 5: Vertical Flip
- 6: Video Freez /Cancel Video Freeze
- 7: Display/Hide the Camera Control Panel
- 8: Display the XCamView Version Information
Dimension of XCAM0720PHB Camera
| Installation drawings(Click to enlarge). The XCAM0720KPB HDMI CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension for XCAM0720PHB Camera |
Packing Information for XCAM0720PHB Camera
|
| Packing Information for XCAM0720PHB |

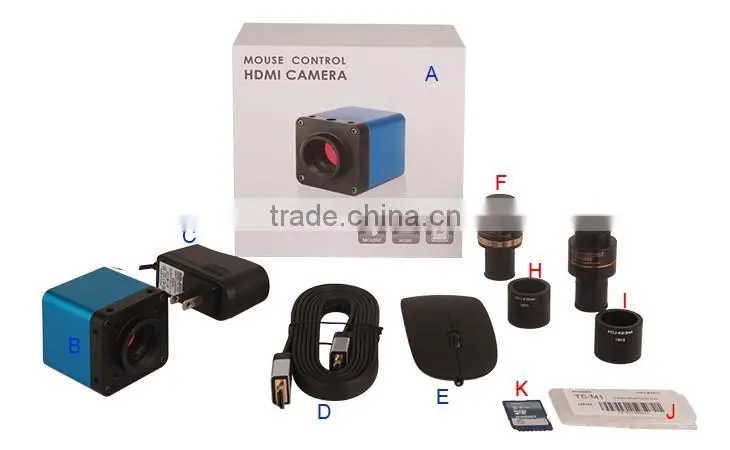

| Standard Packing List | ||||
|---|---|---|---|---|
A |
Gift box: L:17.5cm W:17.5cm H:8.5cm (1pcs, 85Kg/ box) |
|||
B |
XCAM0720PHB camera |
|||
C |
Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
|||
| D | HDMI Cable | |||
| E | USB Mouse/USB Wireless Mouse | |||
| Optional Accessory | ||||
F |
Adjustable |
C-Mount to Dia.23.2mm Eyepiece Tube |
108001/AMA037 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108008/ATA037 |
|||
G |
Fixed |
C-Mount to Dia.23.2mm Eyepiece Tube |
108005/FMA037 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 |
|||
| Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
Calibration Kit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
| K | SD Card(4G or 8G) | |||

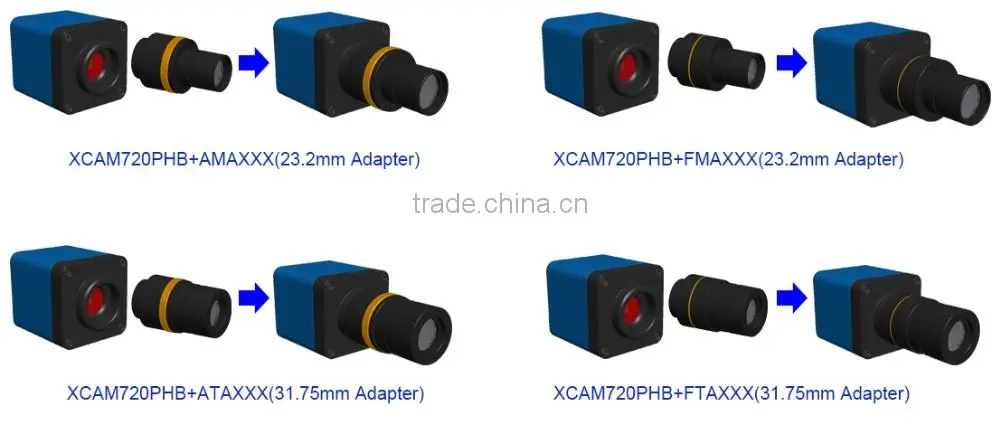

Extension of XCAM0720PHB Camera with Microscope or Astronomy Adapter
| Extension | Picture | |
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Astronomy Camera | ||
