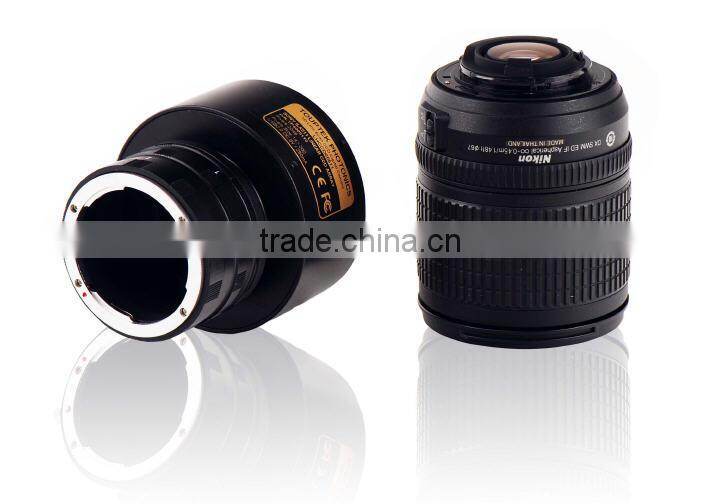

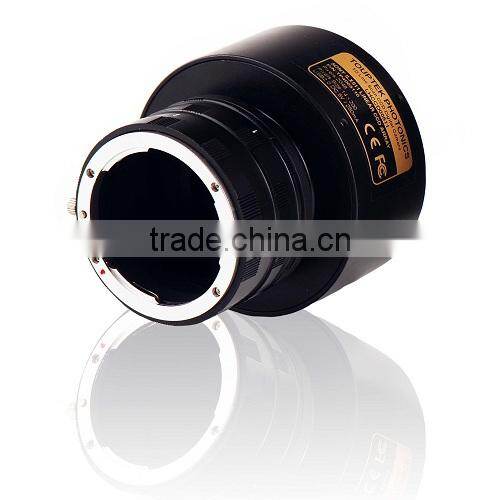

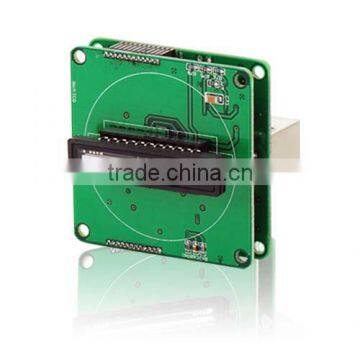

LHCCD Series USB2.0 Linear CCD Camera

Name: LHCCD Series USB2.0 Linear CCD Camera
Brand: ToupTek
SKU: 100661255
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ToupTek

Model Number:

LHCCD Series USB2.0 Linear CCD Camera

Hangzhou ToupTek Photonics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ToupTek

Model Number LHCCD Series USB2.0 Linear CCD Camera

LHCCD Series USB2.0 Linear CCD Camera

Order Code	Sensor	Sensor Size(mm)	Pixel(μm)	FPS/Resolution	Binning	Exposure
LHCCD00511	ILX511(M)	28	14x200	475@2048	NA	2ms~4000ms
LHCCD00554	ILX511(M)	28	14x56	475@2048	NA	2ms~4000ms
LHCCD01304	TCD1304(M)	29.184	8x200	125@3648	NA	3.8ms~4000ms

OTHER HARDARE CONFIGURATION
External Trigger	Supported
Capture/Control API	SDK and Example Code
Capture Mode	Single Camera Multiple Instance and Multiple Cameras Supported
Lens Mount(Optional)	M42
Host Interface	USB2.0
SOFTWARE ENVIRONMENT
Operating System	Microsoft^®Windows^® XP / Vista / 7 (32 & 64 bit)
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USBPort:USB2.0 High-speed Port
OPERATING ENVIRONMENT
Operating Temperature	-30~70℃
Storage Temperature	-40~85℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	Over USB Port
