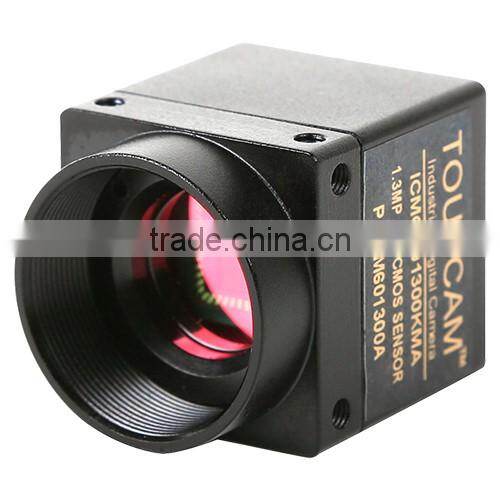

ICMOS Series C-mount USB2.0 CMOS Camera
|
ICMOS camera is an industrial CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. Dimensions: 29x29x29 mm excluding lens holder, without optics (metal case) is realized to obey the industrial camera standard. A 8-pin Hirose HR25-7TR-8PA GPIO connector for trigger, strobe(Optional); Further, the ICMOS comes with advanced video & image processing application ToupView and providing Windows/Linux/OSX multiple platform SDK; Also,native C/C++, C#, DirectShow, Twain Control API are provided. The ICMOS can be widely used in machine vision and on-line inspection. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(μm) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
ICMOS03100KPA |
MT9T001(C) |
1/2"(6.55x4.92) |
3.2x3.2 |
12@2048x1536 |
1x1,2x2,3x3 |
0.128ms~2000ms |
ICMOS01300KMA |
MT9M001(M) |
1/2" (6.66x5.32) |
5.2x5.2 |
30@1280x1024 |
1x1 |
0.64ms~1035.6ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Body Size |
29mmX29mmX29mm(Without Connections) |
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra-Fine Color Engine |
Capture/Control API |
Native C/C++, c#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
USB Cable Connection |
USB Cable Including Locking Screw |
User IO |
IO with Optocoupler Isolation(Trigger and Flash) |
| OPERATING MODES | |
Continuous Capture Mode |
Video Mode |
Single Capture Mode |
Hard Trigger or Soft Trigger |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

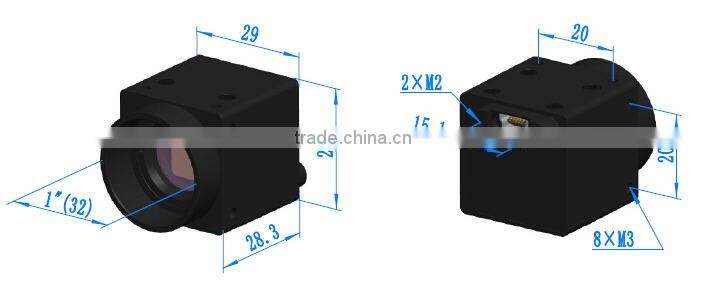

ICMOS Series USB2.0 CMOS Camera Dimension
| Installation drawings(Click to enlarge). The ICMOS series USB2.0 CMOS camera body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
| Dimension of ICMOS Series Camera |

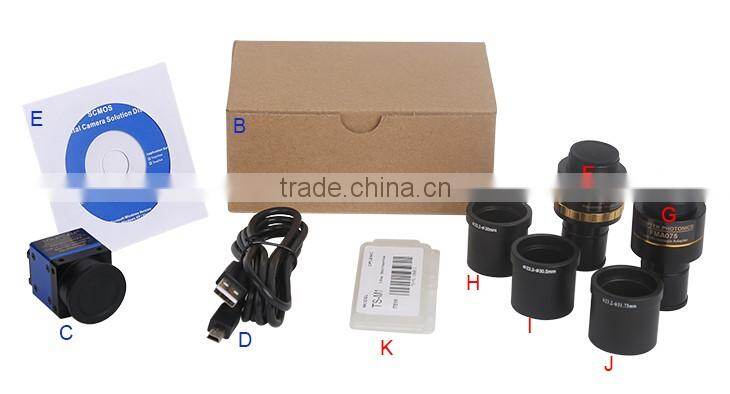

Packing Information for ICMOS Series Camera
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ cartonm3), not shown in the photo |
|||
B |
Gift box L:14cm W:9.7cm H:6cm (0.17~0.18Kg/ box) |
|||
C |
ICMOS series USB2.0 C-mount camera |
|||
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
|||
E |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece Tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-Mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||

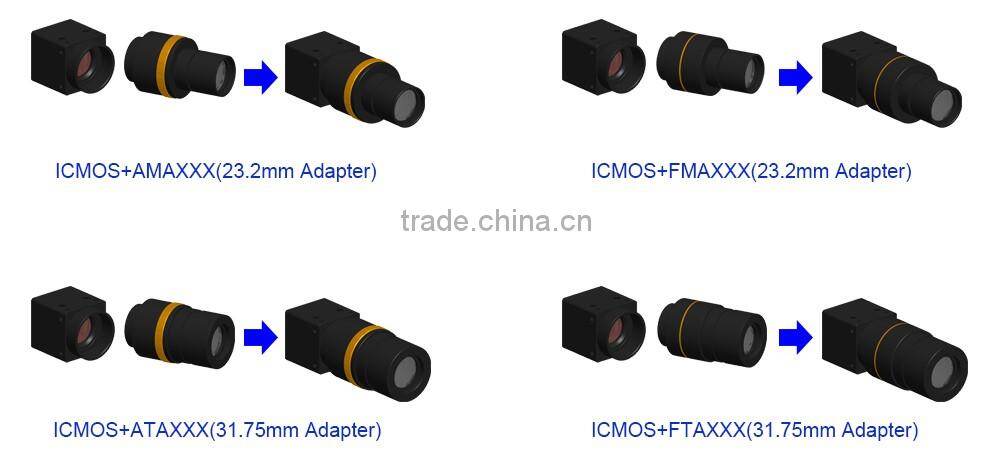

Extension of ICMOS Series USB2.0 CMOS with Microscope or Astronomy Adaptor
| Application | Picture | |
|---|---|---|

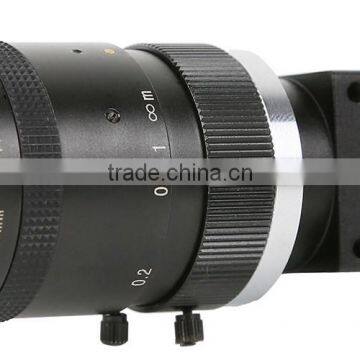

C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Astronomy | ||
