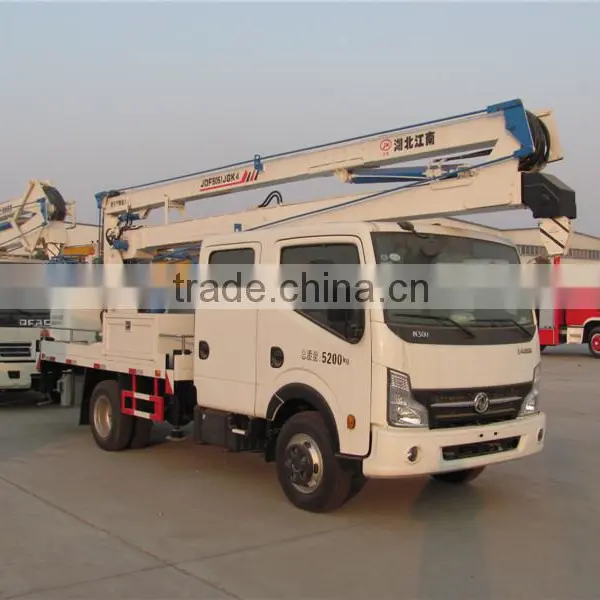

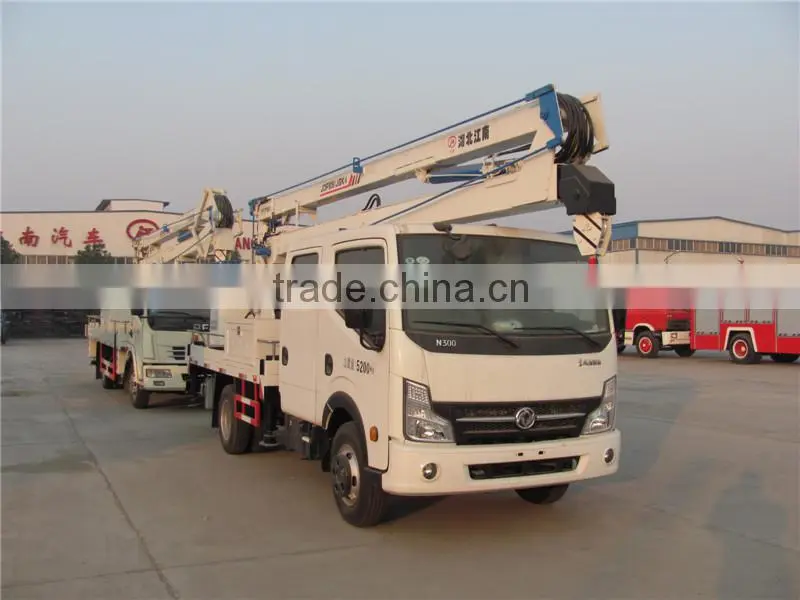

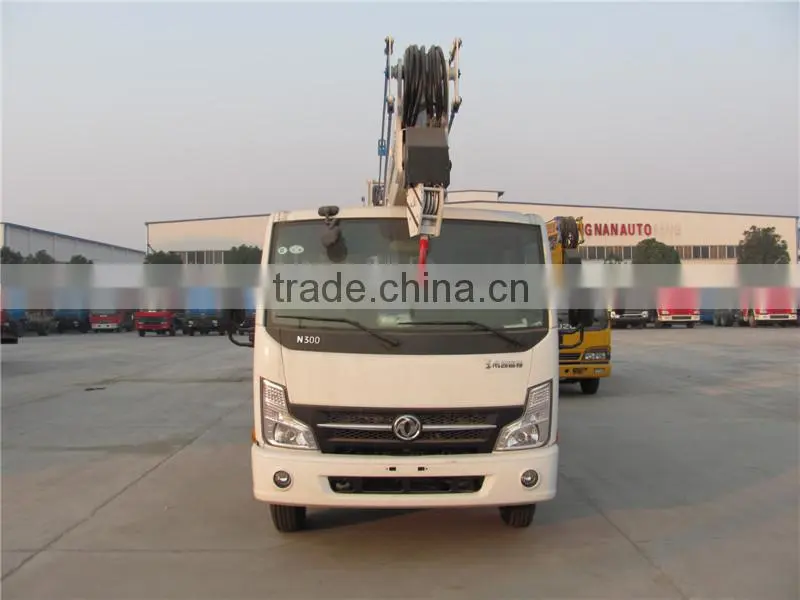

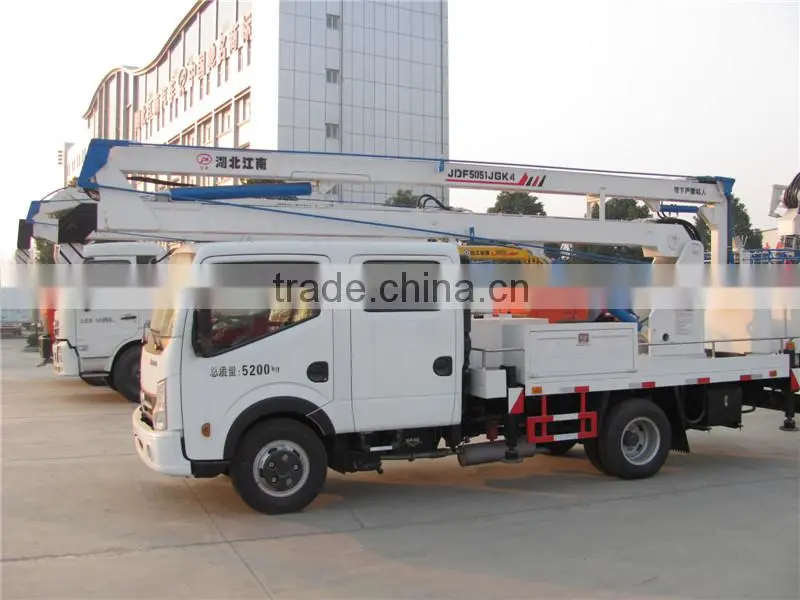

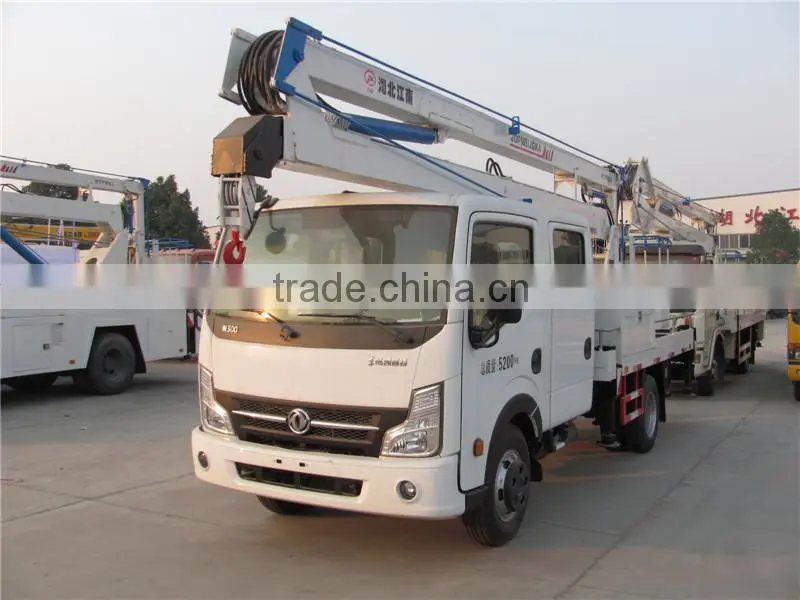

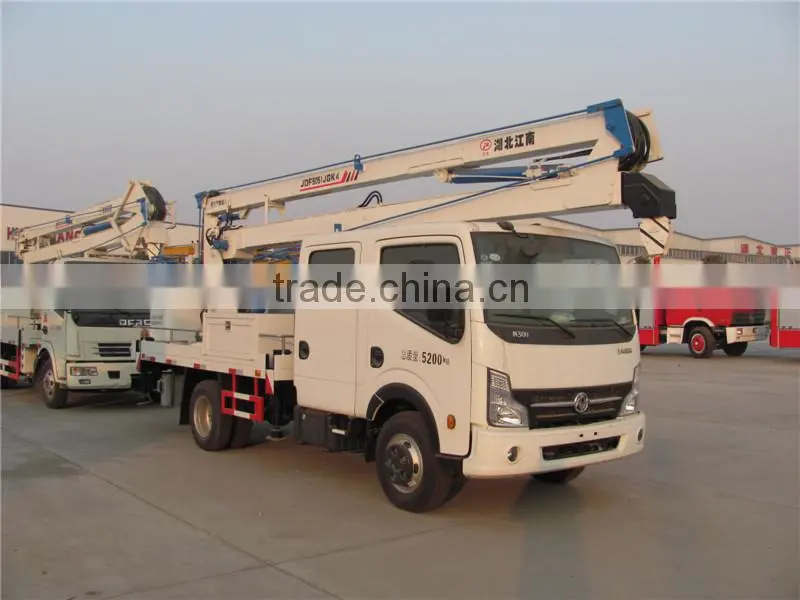

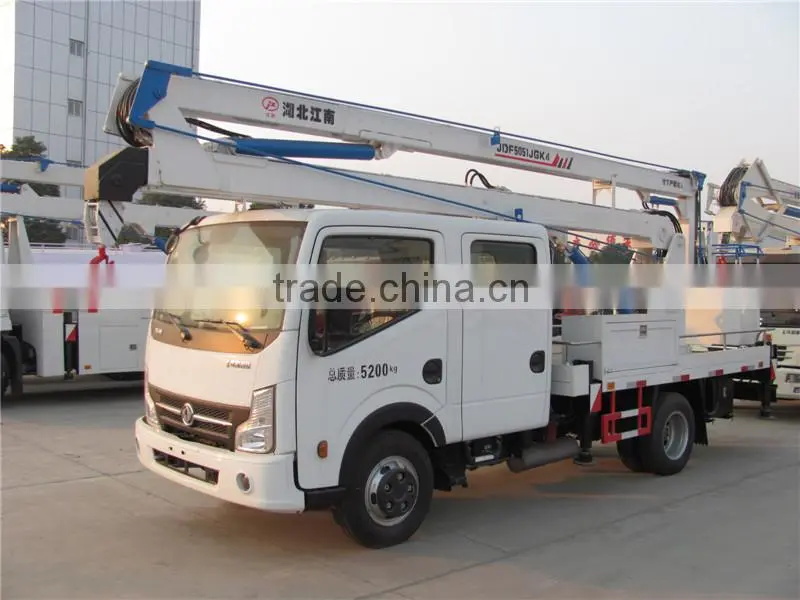

14m Dongfeng Captain N300 vehicle mounted aerial platform
Why choose this vehicle mounted aerial platform:
1. This vehicle mounted aerial platform is adopt Dongfeng Captain N300 chassis, the chassis is adopt Nissan technology, engine and axle, brake system all Nissan technology.
2. This vehicle mounted aerial platform is double row cabin, articulated boom type, the bucket rated load capacity is 200kg.
3. Short lead time, quality guaranteed. our factory have been in vehicle mounted aerial platform line for years, the quality have been approved by ISO, China CCC.
Our service
1. Reply your question within 24hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. Free trainning in our factory if customer need.
Vehicle name |
14m Dongfeng Captain N300 vehicle mounted aerial platform |
||
Cabin |
crew cabin, 5 seats |
||
Drive type |
4x2, left hand drive |
||
Wheel base |
3300mm |
||
Overall dimension (L*W*H) |
7300x1990x3200 mm |
||
Weight |
GVW |
5065 kg |
|
Curb weight |
4675 kg |
||
Engine |
Engine model |
ZD30D13-4N |
|
Make |
DongFeng (Nissan technology) |
||
Rated power / Displacement |
96 kw / 2999 ml |
||
Emission standard |
Euro 4 |
||
Tire type |
7.00-16, 6 pcs |
||
Gear box |
manual, 5 speed |
||
Brake |
air brake |
||
Max working height |
14 m |
||
Max working radius |
5.5 m |
||
Boom type |
articulated boom, 3 section of boom |
||
Outriggers |
4 pcs, H type |
||
Bucket rated load |
200 kg |
||
Hook lmax. lifting capacity |
1000 kg |
||
Hook max lifting height |
7.3m |
||
Operation |
manual |
||
