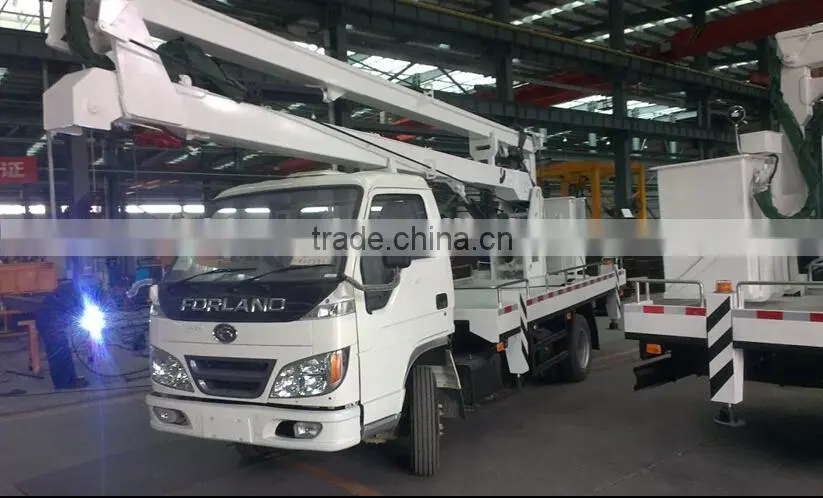

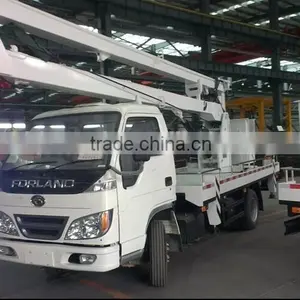

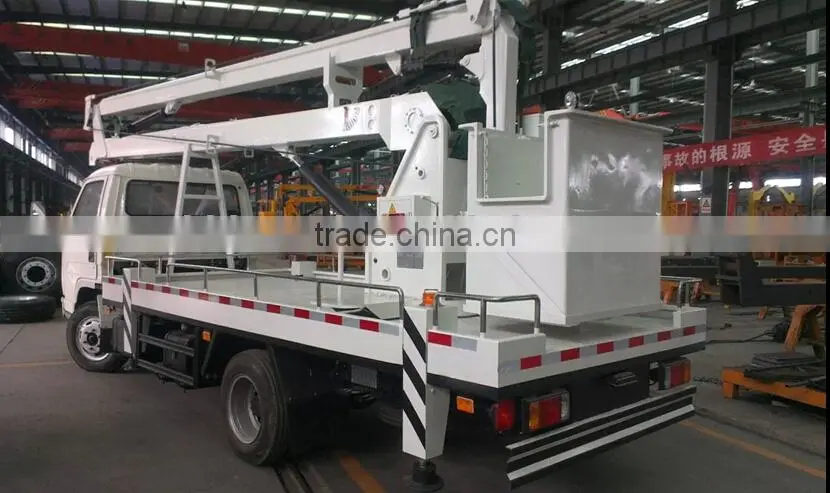

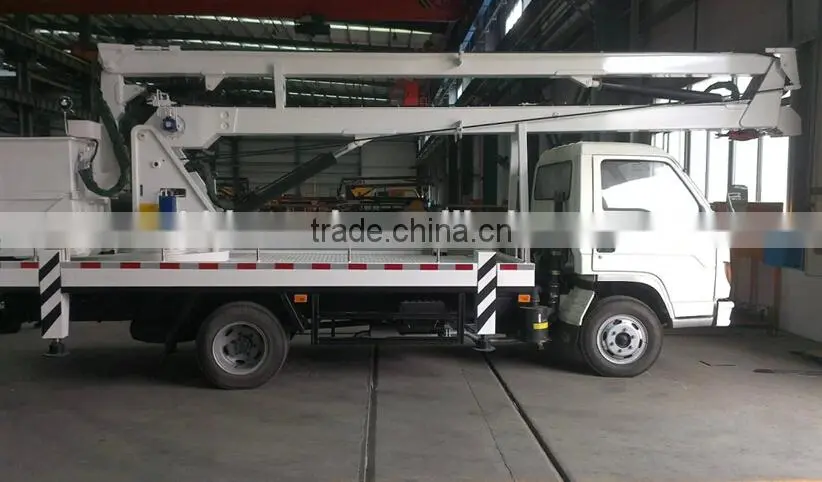

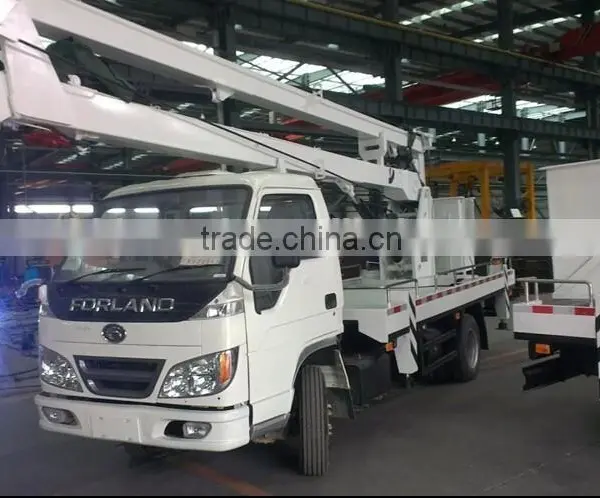

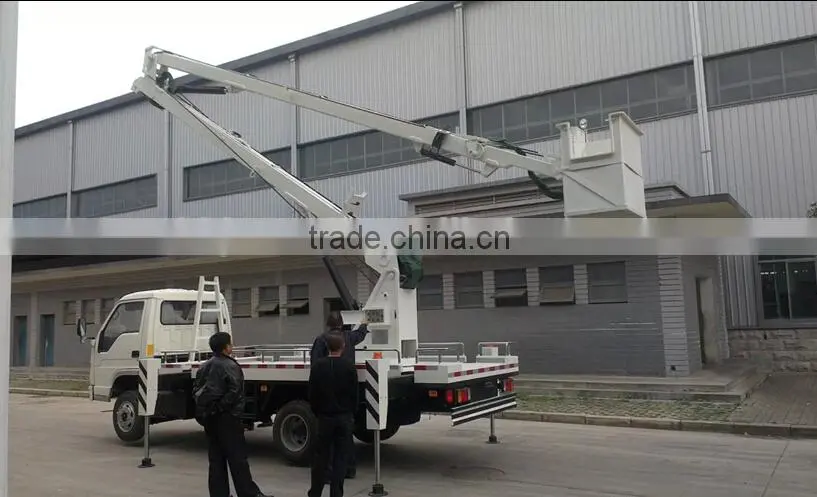

Foton 14m RHD/LHD hydraulic ladder truck
Why choose this Foton 14m RHD/LHD hydraulic ladder truck:
1. this hydraulic ladder truck is retrofitted from Foton truck, Foton is one of the largest vehicle manufacturer in China.
2. this hydraulic ladder truck is consisted from 3 section of articulated booms, max working height 14m, the bucket rated load capacity is 200kg.
3. both turntable and bucket have control level, very convinent.
4. quality guaranteed, our factory have been in aerial platform truck line for years, the quality have been approved by CCC, ISO.......
Our service:
1. Reply your question within 24hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. Free trainning in our factory if customer need
Vehicle model |
JDF5050JGKBJ4 |
||
Cabin |
crew cabin, 2+3seats |
||
Drive type |
4x2, left hand drive |
||
Wheel base |
3360mm |
||
Overall dimension (L*W*H) |
6960x1990x3150 mm |
||
Weight |
GVW |
5200 kg |
|
Curb weight |
4810 kg |
||
Engine |
Engine model |
YN38CRD2 |
|
Make |
Yunnei |
||
Rated power / Displacement |
75 kw / 3298 ml |
||
Emission standard |
Euro 2 |
||
Tire type |
6.50-16, 6 pcs |
||
Gear box |
manual, 5 speed |
||
Brake |
Oil Brake |
||
Max working height |
14 m |
||
Max working radius |
6 m |
||
Boom type |
articulated boom, 3 section of boom |
||
Outriggers |
4 pcs, H type |
||
Bucket rated load |
200 kg |
||
Hook max. lifting capacity |
1000 kg |
||
Hook max lifting height |
7m |
||
Operation |
manual |
||
We offer JAC aerial platform truck, Dongfeng aerial platform truck, JMC aerial platform truck, Foton aerial platform truck, with working height of 10m, 12m, 14m,15m, 16m, 18m, 20m, 22m, 24m, telescopic boom aerial platform truck, articulated boom aerial platform truck all have.
Our main products:
fire truck, aerial working truck, garbage truck, sewage suction truck, fecal sucking truck, refrigerated truck, truck mounted crane, road sweeper, van truck, cargo truck, dump truck, semi-trailer, concrete mixer truck, road wrecker, recovery truck, bulk cement tanker truck
