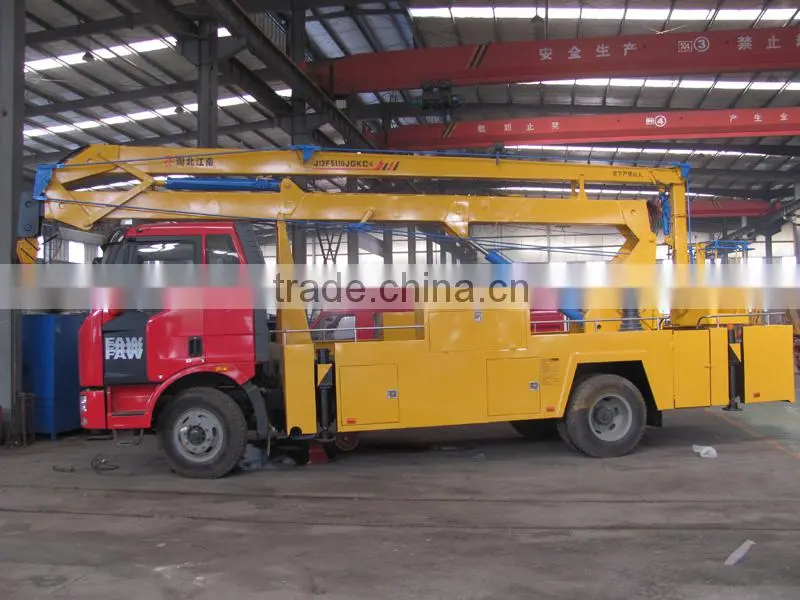

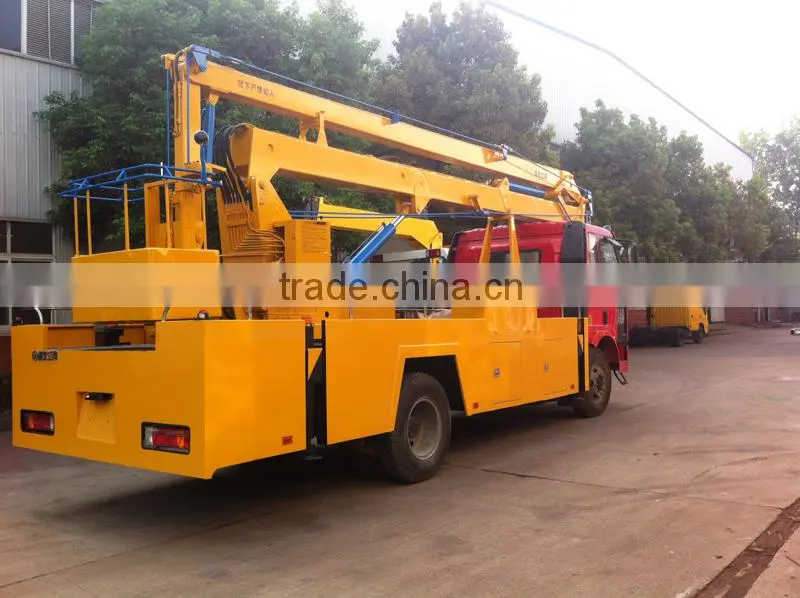

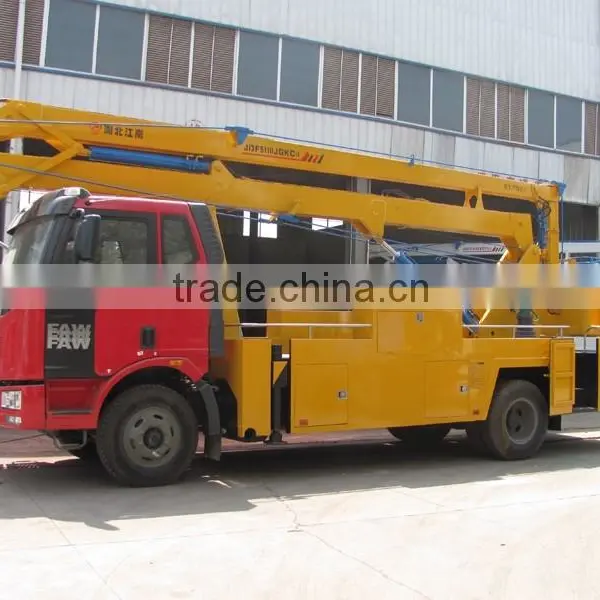

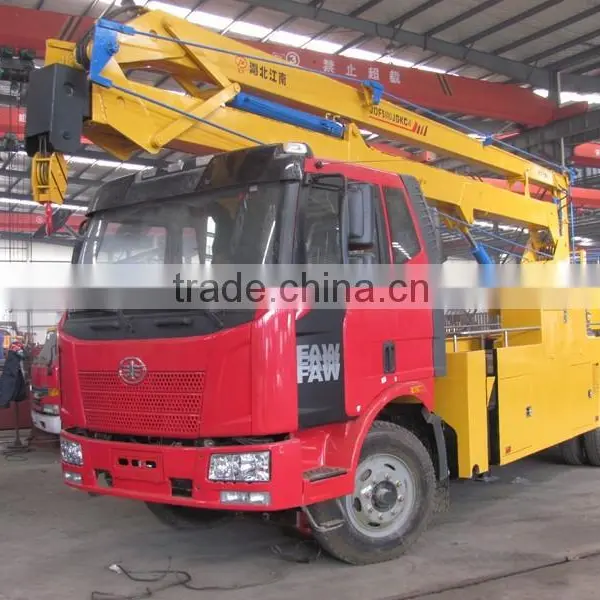

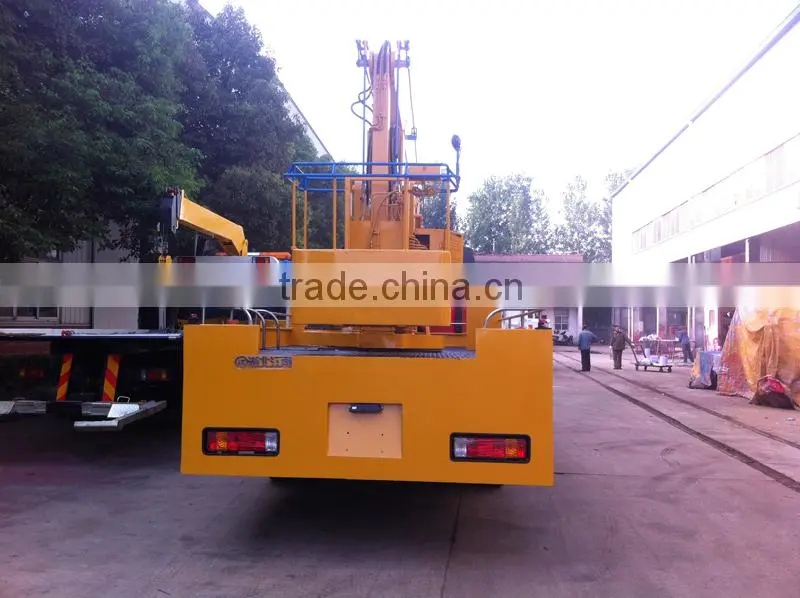

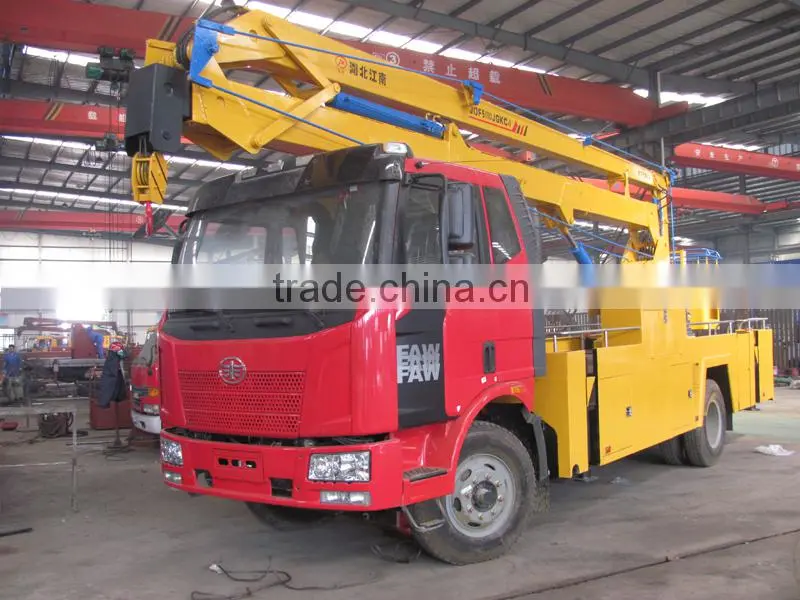

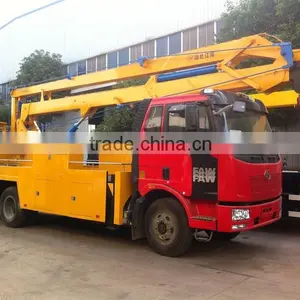

FAW 24m truck mounted aerial ladder platform
Why choose this FAW 24m truck mounted aerial ladder platform :
1. this truck mounted aerial ladder platform is retrofitted from FAW truck, FAW is one of the largest vehicle manufacturer in China.
2. this truck mounted aerial platform is consisted from 5 section of articulated booms, max working height 24m, the bucket rated load capacity is 200kg.
3. both turntable and bucket have control level, very convinent.
4. quality guaranteed, our factory have been in aerial platform truck line for years, the quality have been approved by CCC, ISO.......
Our service:
1. Reply your question within 24hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. Free trainning in our factory if customer need
Vehicle model |
JDF5110JGKC4 |
||
Cabin |
Single row, 2 seats |
||
Drive type |
4x2, left hand drive |
||
Wheel base |
5000mm |
||
Overall dimension (L*W*H) |
9500x2500x3950mm |
||
Weight |
GVW |
11350 kg |
|
Curb weight |
11155 kg |
||
Engine |
Engine model |
BF6M2012-18E4 |
|
Make |
FAW |
||
Rated power / Displacement |
139 kw / 6060 ml |
||
Emission standard |
Euro 4 |
||
Tire type |
9.00-20, 6 pcs |
||
Gear box |
manual, 5 speed |
||
Brake |
Air Brake |
||
Max working height |
24 m |
||
Max working radius |
9 m |
||
Boom type |
articulated boom, 5 section of boom |
||
Outriggers |
4 pcs, H type |
||
Bucket rated load |
200 kg |
||
Operation |
manual |
||
We offer JAC aerial platform truck, Dongfeng aerial platform truck, JMC aerial platform truck, Foton aerial platform truck, with working height of 10m, 12m, 14m,15m, 16m, 18m, 20m, 22m, 24m, telescopic boom aerial platform truck, articulated boom aerial platform truck all have.
Our main products:
fire truck, aerial working truck, garbage truck, sewage suction truck, fecal sucking truck, refrigerated truck, truck mounted crane, road sweeper, van truck, cargo truck, dump truck, semi-trailer, concrete mixer truck, road wrecker, recovery truck, bulk cement tanker truck
for more information pls contact
Jessica Song
Cell: 0086-18771385883 or 0086-15071634966
Tel: 0086-722-3330261
Skype: jessicasong0525
Website: www.hbjntruck.en.china.cn
