Silicone Rubber Braided Fiberglass Sleeving

FOB Price

US$ 0.06 - 3.68 / Meter

2000 Meters(Min. Order)

Port SHENZHEN
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SUNBOW
Model Number	SB-SGS-40	Type	Insulation Sleeving
Material	Fiberglass	Application	Other, High Temperature, Insulators, AC Motors, Transformers, Home Use Appliances...
Rated Voltage	600V	Tensile Strength	10.4Mpa

Product Description

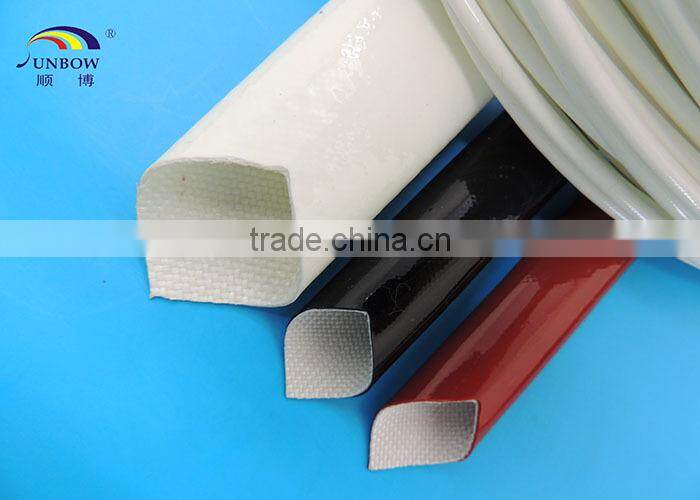

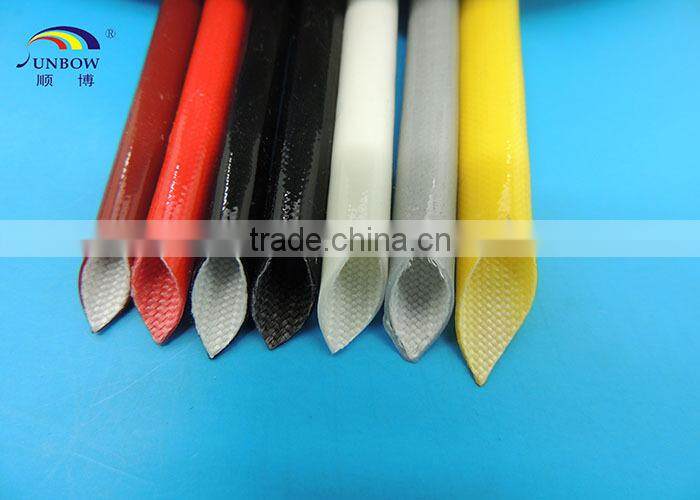

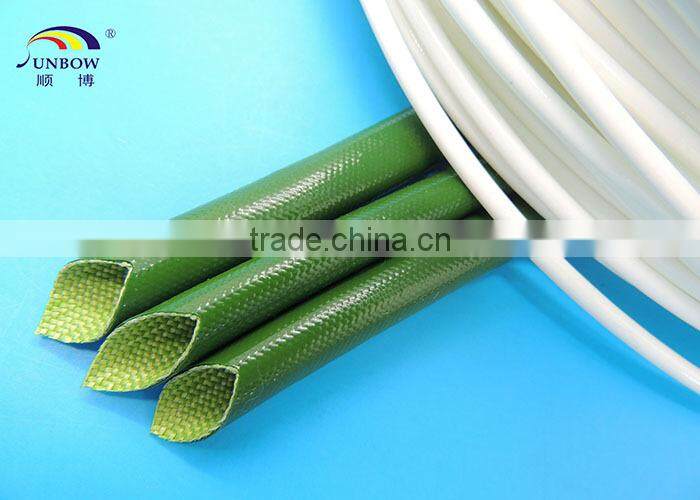

Silicone Rubber Braided Fiberglass Sleeving

STRUCTURE

Silicone Rubber Braided Fiberglass Sleeving is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.

USAGE

Silicone Rubber Braided Fiberglass Sleeving with its good dielectric strength, flexibility and flame retarding properties makes it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

WORKING TEMPERATURE

200°c

DIMENSION

Inside Diameter		Wall Thickness (mm)	Standard Package (m/roll)
Nominal(mm)	Tolerance(mm)	Wall Thickness (mm)	Standard Package (m/roll)
φ0.5	+0.2, -0.1	≥0.37	200
φ1.0	+0.2, -0.1	≥0.37	200
φ1.5	+0.2, -0.1	≥0.37	200
φ2.0	+0.2, -0.1	≥0.37	200
φ2.5	+0.3, -0.1	≥0.42	200
φ3.0	+0.3, -0.1	≥0.42	200
φ4.0	+0.3, -0.1	≥0.42	200
φ4.5	+0.3, -0.1	≥0.51	100
φ5.0	+0.3, -0.1	≥0.51	100
φ6.0	+0.3, -0.1	≥0.51	100
φ7.0	+0.3, -0.1	≥0.56	100
φ8.0	+0.3, -0.1	≥0.56	100
φ9.0	+0.3, -0.1	≥0.66	100
φ10.0	+0.3, -0.1	≥0.66	100
φ12.0	+1.0, -1.0	≥0.66	50
φ14.0	+1.0, -1.0	≥0.66	50
φ16.0	+1.0, -1.0	≥0.66	50
φ18.0	+1.0, -1.0	≥0.66	50
φ20.0	+1.0, -1.0	≥0.76	25
φ25.0	+1.0, -1.0	≥0.76	25
φ30.0	+1.0, -1.0	≥0.76	25

SPECIFICATION

Item	Performance		Note
Dielectric Breakdown Voltage KV AC	Minimum Average	≥4.0	Before Aging
	Minimum Single Point	≥3.0	Before Aging
	Minimum Average	≥3.0	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
	Minimum Single Point	≥2.0	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Thermal Endurance	No Indication of Crack	OK	6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging
Fire Resistance	VW-1	OK	UL 1441

FREQUENTLY ASKED QUESTIONS

Q1. You are a factory or trading company?

We are a factory and we can provide best price and high quality products for you.

Q2. Can you accept sample orders?

Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

Normally, 2000m per size.

Q4. What are your payment terms?

T/T 100% or West Union

Q5. How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.

Q6. How about your quality?

Try a small order, and then you can judge.

Q7. Have you passed any certificates?

Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.

Q8. Are there any advantages to choose your products?

1) ISO 9001 : 2008 TS 16949 standard factory manufacturer

2) high-tech enterprise in China

3) with 12-year manufacturing experience

4) factory direct sales

5) best price high quality product

6) quick delivery time

7) quick response for feedback

8) few complaints from customers

9) more competitive price for VIP customers

10) convenient situation near to seaport

YOU CAN SEND YOUR DETAILED INQUIRY FOR FREE SAMPLES AND PLEASE CLICK "SEND" NOW!
