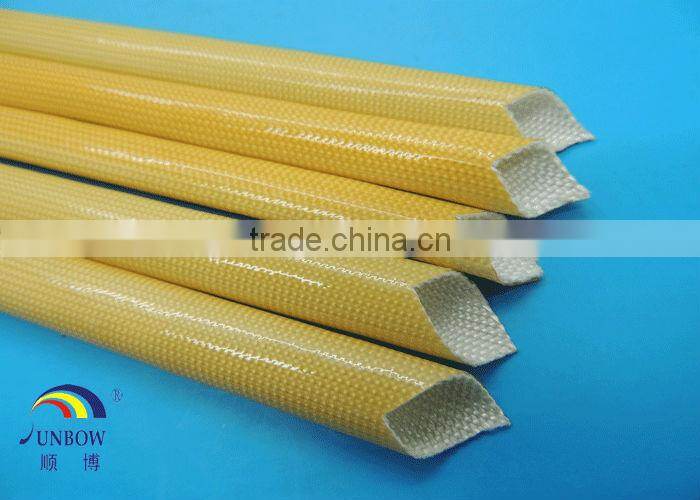

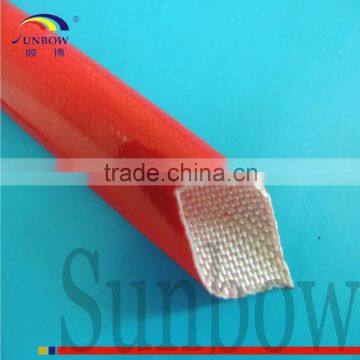

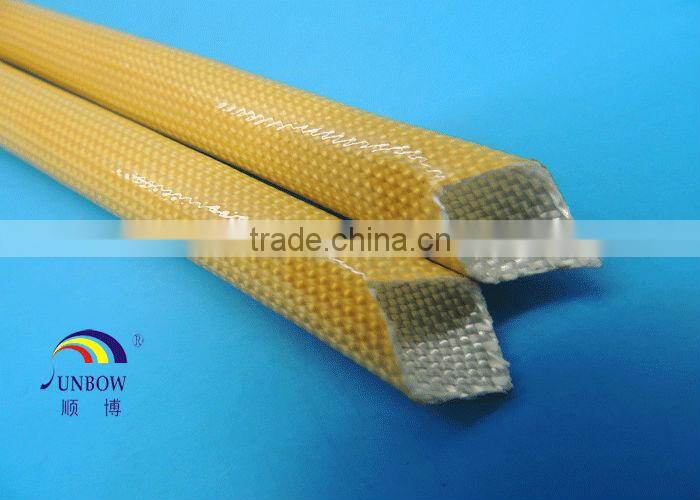

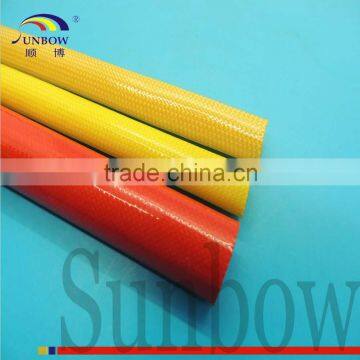

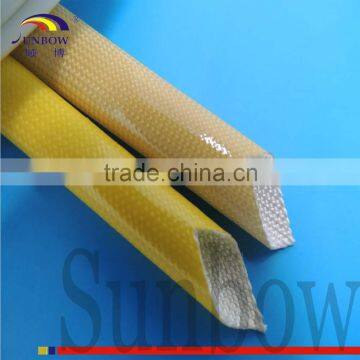

RoHS Approval Excellent Thermal Insulation Property Fiber Glass Braided PU Tubing
1. Model
SB-PUGS
2. Working Temperature
155°c
3. Structure
RoHS Approval Excellent Thermal Insulation Property Fiber Glass Braided PU Tubing is braided with fiberglass and then coated by PU resin processed in high temperature.
4. Characteristics
1) thermal property: it can endure 170°c high temperature for about 3 hours.
2) chemical property: it has excellent oil resistance and benzene resistance.
3) electrical property: 300V rated voltage
4) excellent mechanical wearproof and elasticity
5) SGS, RoHS, REACH certifications
5. Specification
Property |
Standard |
Heat resistance |
170℃x3 hours No cracking in the surface |
Chemical resistance |
Excellent oil resistance and benzene resistance |
Electrical performance |
Rated voltage 300V |
The polyurethane glassfiber sleeving is manufactured according to European and American standard. It possesses excellent compatibility and adaptability in the applications of all kinds of electrical equipment and electrical machine. There are still many good features of this sleeving need to explore. | |
|
I.D. (mm) |
Tolerance (mm) |
Thickness(mm) Breakdown voltage 1500V |
Thickness(mm) Breakdown voltage 2500V |
Thickness(mm) Breakdown voltage 4000V |
Thickness(mm) Breakdown voltage 7000V |
0.5 to 3.5 |
+0.2-0.1 |
0.38±0.12 |
0.41±0.12 |
0.45±0.15 |
0.52±0.15 |
4.0 to 9.0 |
+0.2-0.1 |
0.42±0.15 |
0.46±0.15 |
0.48±0.15 |
0.55±0.15 |
10 to 16 |
+0.5-0.1 |
0.50±0.20 |
0.52±0.20 |
0.58±0.20 |
0.65±0.20 |
18 to 35 |
+0.7-0.1 |
0.65±0.25 |
0.70±0.25 |
0.75±0.25 |
1.10±0.30 |
0.5mm to 4.5mm 200m/roll
5.0mmto 12.0mm 100 m/roll;
14.0mm to 35.0mm 50 m/roll.(can be 1 m/segment upon request)
8. Application
RoHS Approval Excellent Thermal Insulation Property Fiber Glass Braided PU Tubing can endure more than 150°c high temperature. It has excellent electrical, mechanical wearproof and elasticity properties. It is widely used in Class F motors.
9. Our Services
1) 2~7 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
10. Packaging & Shipping
0.5~4.5mm 200m/r
5.0~12.0mm 100m/r
14.0~35.0mm 50m/r
All our products are packaged in cardboard boxes.
You can choose the best way you like to deliver the goods, such as UPS, DHL, FEDEX...
11. Frequently Asked Q & A
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) Factory direct sales, quality assurance and competitive price
2) UL, ROHS, REACH certificated
3) Philips, Toshiba, Media etc. well-known partners
4) An extensive line of high quality products (silicone fiberglass sleeving, various heat shrink tubes, pvc tube, ptfe tube, FDA compliance silicone rubber tube…)
12. Company Information About SUNBOW
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....

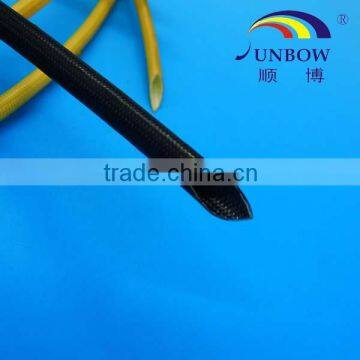

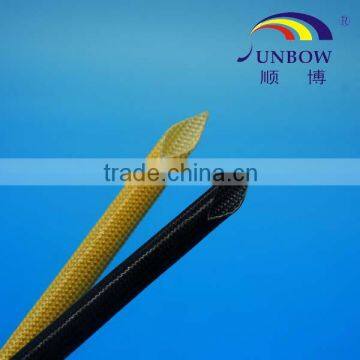

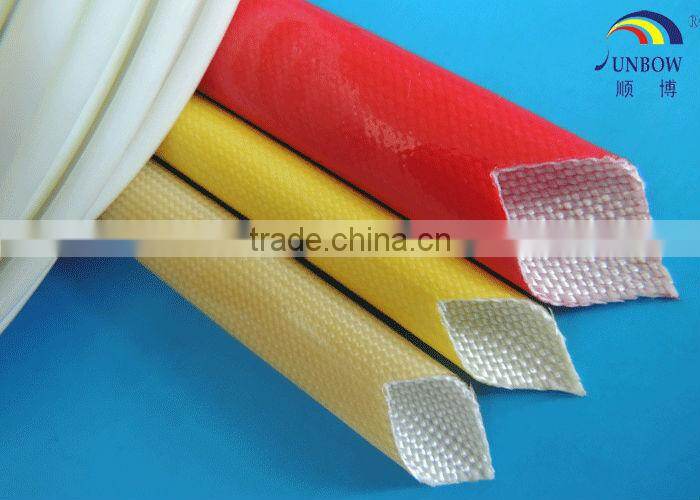

13. More Pictures
