Fireproof High Temperature Silica Braided Sleeving
- Shenzhen
You May Like
-
Silicone Rubber Braided Fiberglass Sleeving
-
Silicone Expandable Fiber Glass Braided Sleeving
-
SUNBOW RoHS 155C F Dielectric Insulation PU Fiberglass Sleeving for Motors
-
Fiberglass Braided Silicone Rubber Insulation Tube and Sleeve
-
SUNBOW High Temperature Flame Retardant Silicone Coated Fiberglass Hose Wrap
-
Heat Resistant Flame Retardant Silicone Rubber Coated Fiberglass Sleeving
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
| Model Number | SB-SGS-FH | Type | Insulation Sleeving | |
| Material | Other, Fiberglass, Silicone Fiberglass | Application | Other, High Temperature, Metal Smelting And Shipyard | |
| Rated Voltage | 600V | Tensile Strength | >25Mpa |
Product Description

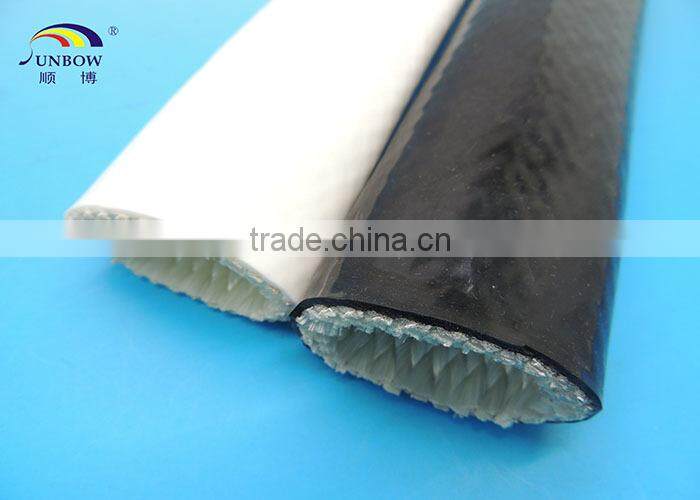

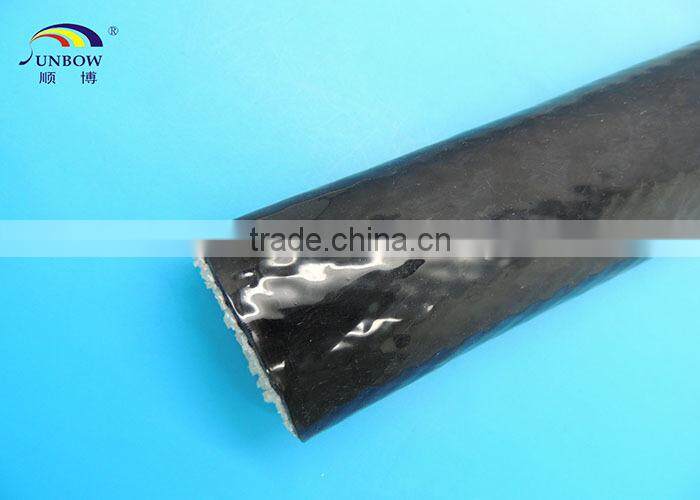

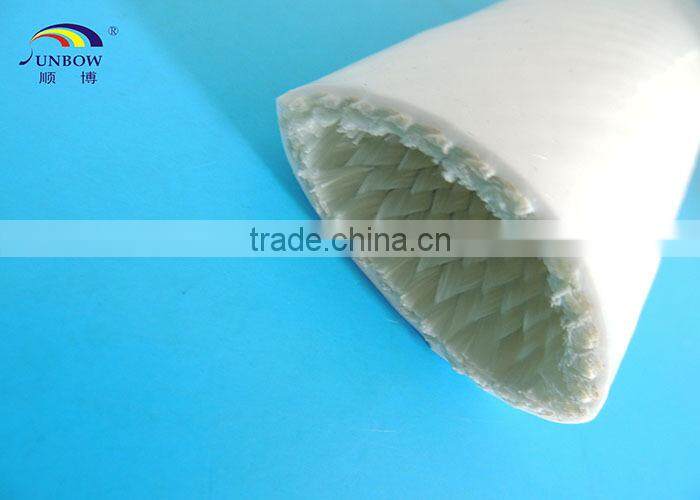

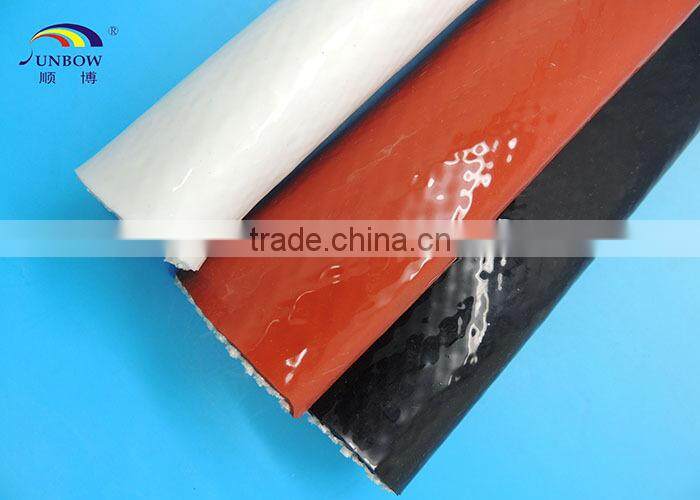

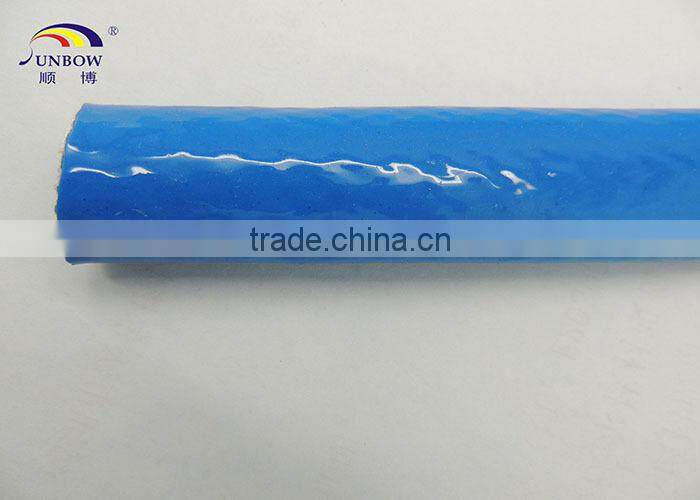

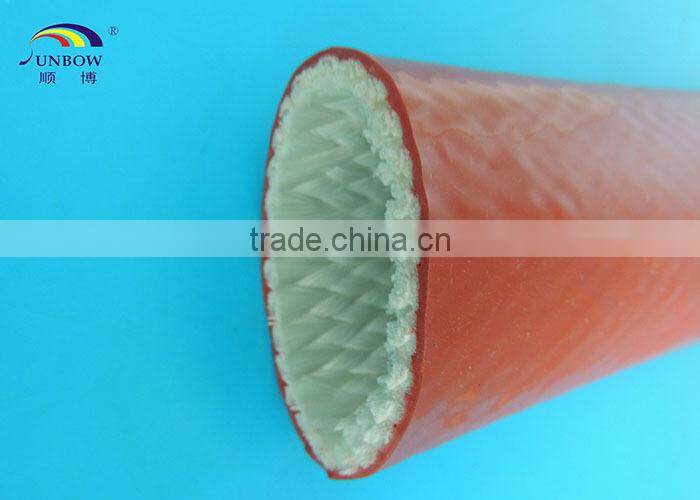

Fireproof High Temperature Silica Braided Sleeving
1. Model
SB-SGS-FH
2. Working Temperature
-65C ~ 260C
3. Structure
Fireproof High Temperature Silica Braided Sleeving is braided with high purity thickened non-alkali fiberglass and then coated by silicone resin.
4. Characteristics
1) excellent thermal insulation, flammability, acidproof and insulation
2) prevetion of spatter from high temperature melts like melt iron, melt copper and melt alluminum
3) prevention of radiation from fire
4) prevention of burn from high temperature pipelines
5) flexibility, wearproof, dampproof, waterproof, oilproof and anti-pollution
6) excellent dielectric strength insulation(high voltage resistance: 10~15KV)
5. Dimension
Inner Diameter / mm | Thickness / mm | Standard Package m/roll | |
Nominal | Tolerance | ||
15.0 | +1.0 | 2.2 | 20 |
20.0 | +1.2 | 2.5 | 20 |
25.0 | +1.5 | 2.8 | 20 |
30.0 | +1.5 | 3.0 | 20 |
35.0 | +2.0 | 3.2 | 20 |
40.0 | +2.0 | 3.5 | 20 |
45.0 | +2.0 | 3.8 | 20 |
50.0 | +2.5 | 4.0 | 20 |
55.0 | +2.5 | 4.2 | 15 |
60.0 | +3.0 | 4.5 | 15 |
65.0 | +3.0 | 4.5 | 15 |
70.0 | +3.0 | 4.8 | 15 |
75.0 | +3.0 | 4.8 | 15 |
80.0 | +3.5 | 5.0 | 10 |
90.0 | +3.5 | 5.6 | 10 |
100.0 | +3.5 | 6.0 | 10 |
6. Application
Fireproof High Temperature Silica Braided Sleeving is widely used in metallurgy, ships, chemical industries and so on.
