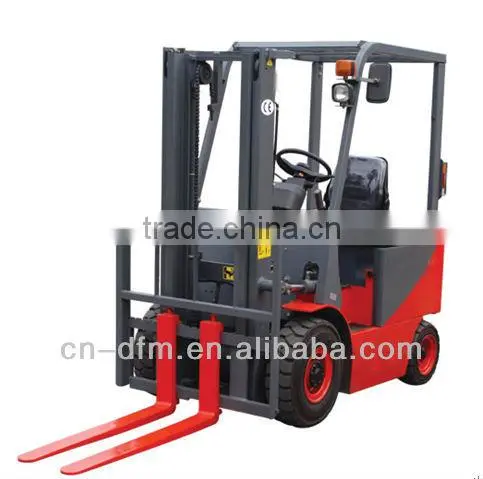

Forklift Truck Price CPD20

Forklift Truck Price CPD20 thumbnail-1
Forklift Truck Price CPD20 photo-1
US$ 10,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Model Number:
CPD20
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Model Number CPD20
Type Powered Pallet Truck
Rated Loading Capacity 2000kg
Max. Lifting Height 6000mm, 3000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 2380x1150x2150mm
Certification CE & ISO9001

Specifications

1. ISO&CE certificate
2. One year warranty
3. OEM color & logo




Speciality parameter		 Model     CPD20
Power type     Battery
Rated capacity   kg 2000
Load center d mm 500
Lift height h2 mm 3000
Mast tilt angle (forward/backward) α/β Deg 6/12
Front overhang L3 mm 483
Wheel-base L4 mm 1500
Tread(front/rear) b4/b5 mm 970/950
Performance parameter Travel brake     Hydraulic-Foot pedal
Parking brake     Mechanical-Hand lever
Lift speed(with/without load)   mm/s 260/400
Lower speed (with/without load)   mm/s (with load)300
Travel speed (with/without load)   km/h 11/12
Max. gradeability (with load)   % 1
Power, transmission and others motor Driving motor Model     XQ-6.3-1T
Rated power   kw 6.3
Rated rotation   r/min 1200
Working motor Model     XQD-8.6-C
Rated power   kw 8.6
Rated rotation   r/min 1550
Controller Manufacturer     GE
Type     MOSFET
Battery Voltage   V 48
Capacity   Ah 630
Size(L×W×H)   mm 820×1065×520
Gearbox Transmission type     Mechanical
Tire  type     Pneumatic tyre
Model Front     7.00-12-12PR
Rear     18×7-8-14PR
Other Self.weight   kg 3970
Free lift height h4 mm 140
Fork Thickness×Width×Length c×b×a mm 40×125×1070
Overall dimensions Overall length(without forks) L2 mm 2380
Overall width b1 mm 1150
Overall height Extended height(mast) h1 mm 4030
Lower height (mast) h3 mm 1995
Overhead guard h7 mm 2150
Min. turning radius Wa mm 2050
Min. under ground clearance Under mast m1 mm 110
Center of wheel-base m2 mm 120

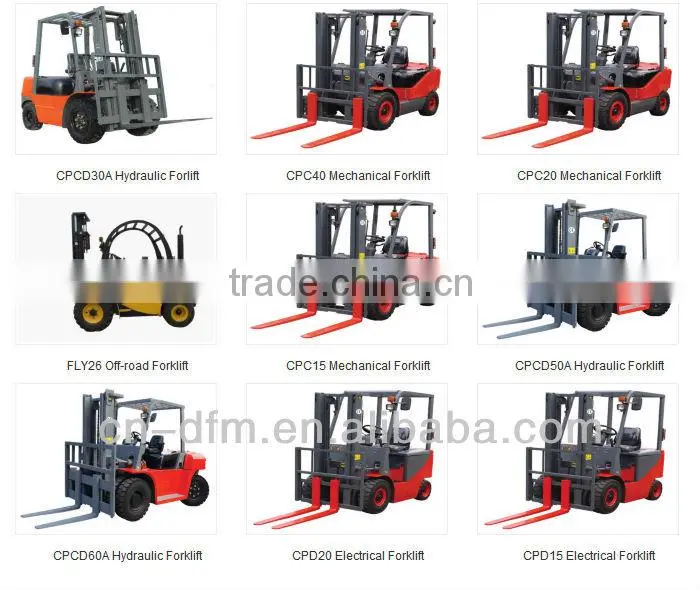

Other Forklift Truck Series:
