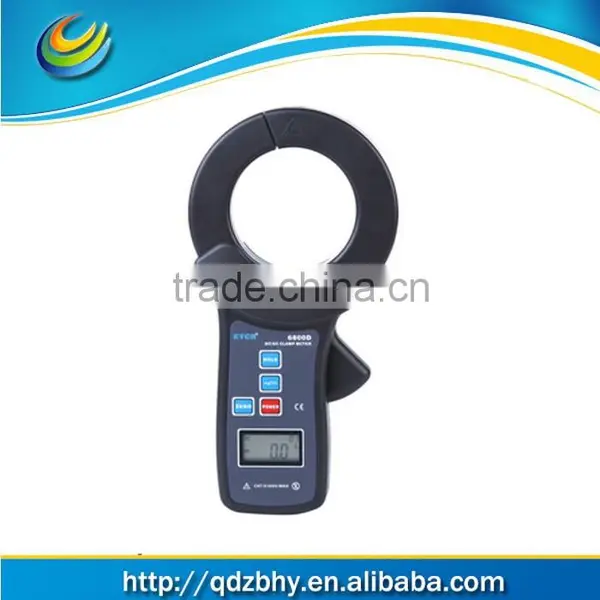

ETCR6800D Clamp Meter is specially designed for measurement online of AC/DC leakage current with voltage below 600V; by adopting up-to-date CT technology and digital integration technology, There is not metallic conductor outside the clamps, non-contact test to ensure save. It is a product with relatively small size, large clamp, high accuracy and perfect function, widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining. It is essential tool for electrician safety testing.
This High Accuracy Clamp Leaker have the function of peaking holding, data holding data storage; obtains one USB interface. With the help of the software that we provide, many functions are available. For example, on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value and indication, alarm value setting, indication of alarm value, historical data inquiry, save, and print.
. Technical Specification
Function |
Measure AC/DC current, peak hold, online monitor |
Size of clamp |
Φ68mm |
Range |
0.0A~2000A DC/AC |
Accuracy |
±2%rdg±3dgt |
Resolution |
0.1A |
Dimension |
224mm×115mm×43mm |
Data interface |
USB |
Weight |
515g(with battery) |
Power Supply |
Zn-Mn dry battery 6F22 9V, lasting for100hours |
Test Mode |
Clip-on CT, integral mode |
Display Mode |
Four digits LCD display |
LCD Dimension |
35mm×21.5mm; display domain: 32mm×15mm |
Frequency |
AC 45Hz~400Hz |
Sampling Rate |
2 times/s |
Polarity Indication |
DC current auto identified and display“—” |
Test Position |
Tested wire in the jaw center; Error will increase to 1.5%rdg max if deviate the center |
Range Shift |
Automatically |
Line Voltage |
AC600V |
Software |
with the software the data can upload to computer |
Data Memory |
99units, FULLblinks when the memory is full |
Peak Hold |
Push HOLD without release, the meter will show the peak value during the pushing period |
Reading Hold |
DH indicating the reading is hold |
Out of Range |
OL indicating the current is out of range |
Auto Power-off |
5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage |
Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Consumption |
10mW |
Temperature and Humidity |
-10°C~50°C; Below 80%rh |
Max error refer to environment |
-10°C~0°C,40°C~50°C,Error will increase max to 1%rdg |
Temperature and Humidity for storage |
-10°C~60°C,below 70%rh |
Insulating Strength |
AC2kV/rms. (between the alloy of the clamp and the housing) |
Applicable safety rules |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III(600V) |
Accessories |

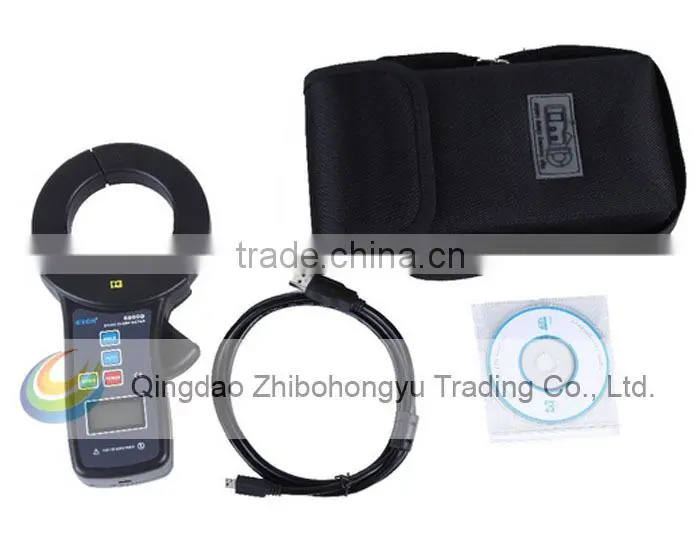

Meter: 1pc; USB communication line: 1pc; software: 1pc; battery (6F22 9V):1pc. |
