Home > Products > Instruments & Meters > ETCR9100 H/L Voltage Clamp Meter Tester AC 0.00mA~600A33mm

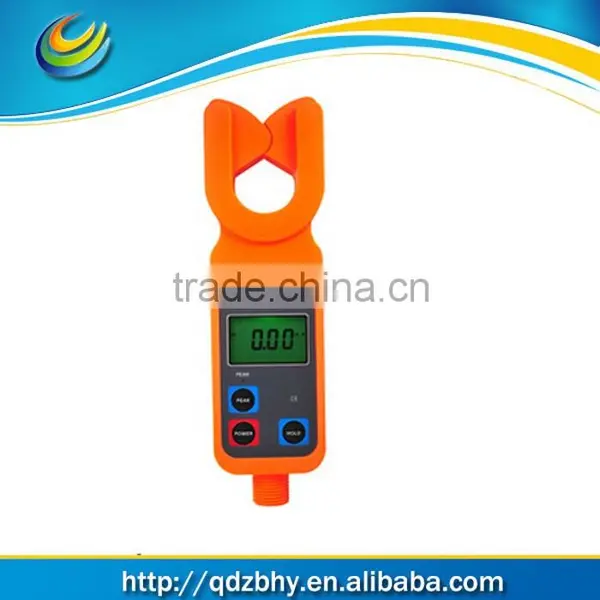

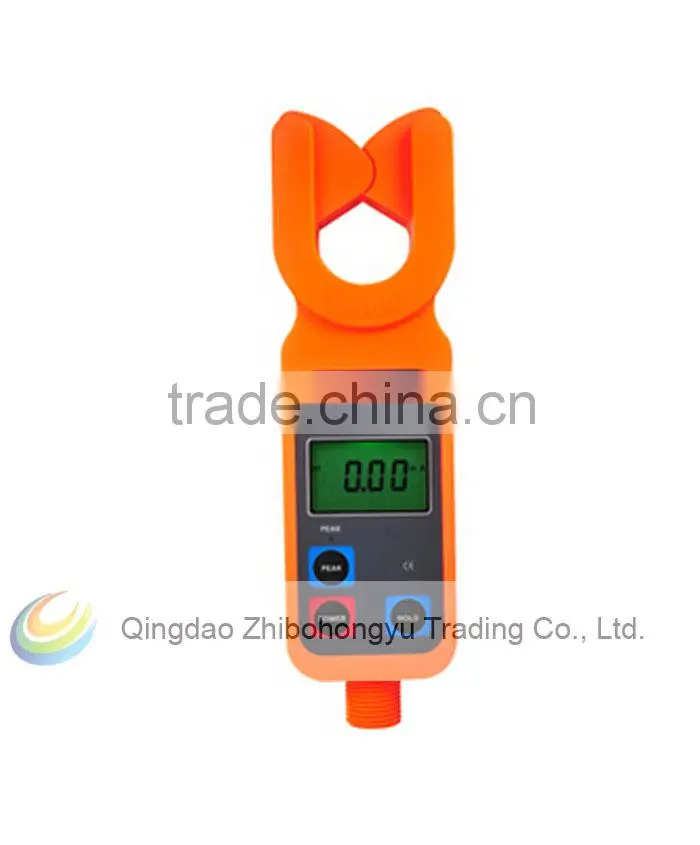

ETCR9100 H/L Voltage Clamp Meter Tester AC 0.00mA~600A33mm
USD $714.11 - $714.11
/ Set
1 Set(Min.Order)
- 0 per Month
- QINGDAO
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | ETCR | |
| Model Number | ETCR9100 | Dimensions | 68mm*245mm*40mm |
Product Description
Product Description
Technical Specifications
Function | High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement |
Power Supply | DC6V alkaline LR03×4) |
Test Mode | Clamp CT, integral approach |
Display Mode | 4 bit LCD display, with backlight function |
LCD Dimension | 47mm×28.5mm |
Meter Dimension | LWH: 68mm×245mm×40mm |
Clamp Dimension | 33mm |
Sampling Rate | 2 times/second |
Measurement Scope | 0.00mA~600A (50/60Hz automatic) |
Resolution | 0.01mA |
Shift | 0.00mA~600A automatic shift |
Accuracy (23C±5C, below 70%RH) | 0.00mA~100.0A: ±1%±5dgt |
100.0A~600.0A: ±2%±5dgt | |
Line Voltage | Below 60KV line test (with 5 insulation rods operation) |
Data Memory | 99 sets, memory process is shown by MEM , full storage is shown by blinking FULL |
PEAK value maintaining | Automatically maintain the high test value, in usual testing mode, press keyHOLD till the lighting of PEAK, that is, start PEAK to maintain this function. |
Data Hold | In usual testing mode, press HOLD key to keep data, shown by “HOLD” |
Data Access | “MR” indication, can access to all data |
Overflow Display | Over-range overflow function: shown in “OL A” |
Automatic Shutdown | 15 minutes after boot |
Battery Voltage | When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement |
Meter Weight | Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery) |
Working Temperature and Humidity | -25C~40C; below 80%Rh |
Storage Temperature and Humidity | -10C~60C; below 70%Rh |
Insulation Rod Dimension | φ32mm, 1m/piece (5pieces) |
Insulation Strength | AC 100kV/rms (between the 5th insulation rod and high voltage current clamp core) |
Structure | Anti-drip type II |
Safety Provisions | IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III(600V), IEC61326(EMC standard) |
Accessories | Clamp Meter : 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces |
