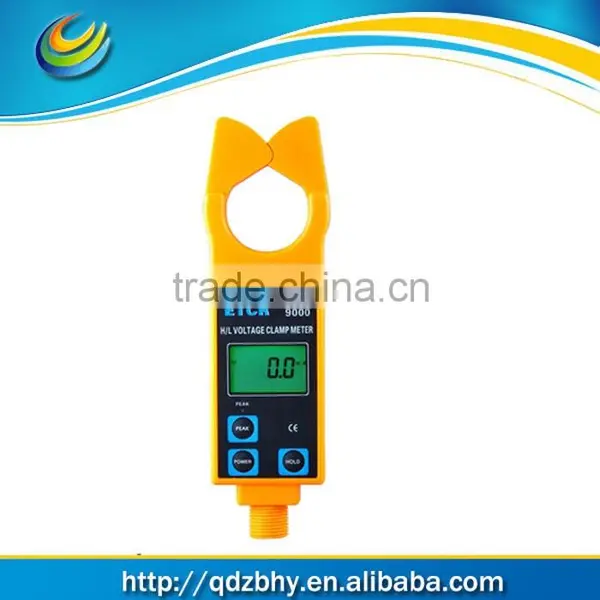

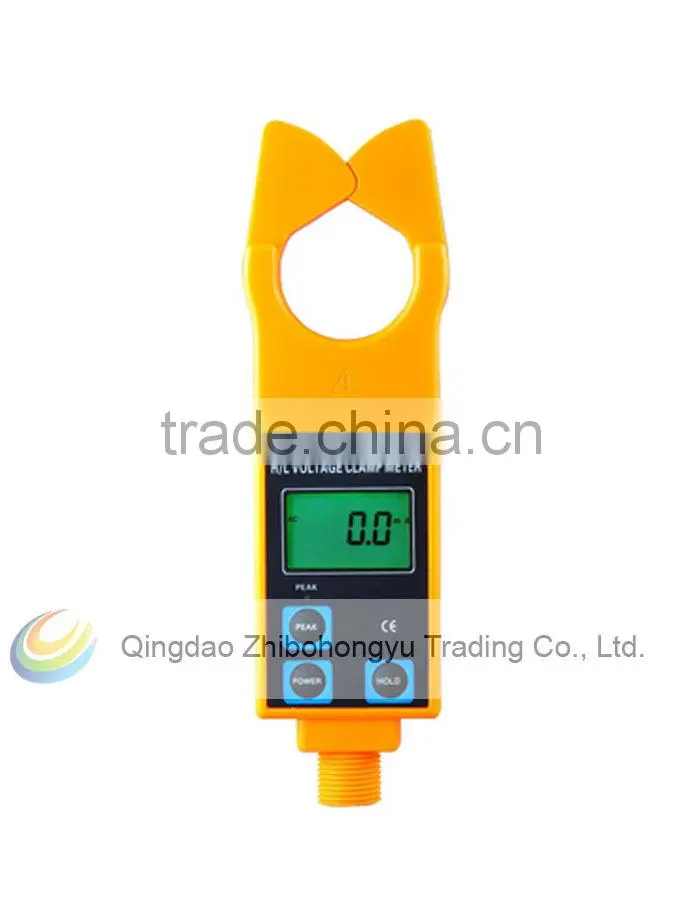

ETCR9000 High/Low Voltage Clamp Meter---ISO,OEM,ODM
US$ 714.11 - 714.11
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR9000
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR9100 H/L Voltage Clamp Meter Tester AC 0.00mA~600A33mmUS$ 714.11 - 714.11MOQ: 1 Set -
ETCR9100B H/L Voltage Clamp Meter ETCR-9100B.US$ 1,080.32 - 1,080.32MOQ: 1 Set
-
ST50 Standard Infrared ThermometerUS$ 58.06 - 58.06MOQ: 1 Set
-
ST350 Infrared ThermometerUS$ 25.81 - 25.81MOQ: 1 Set
-
Non-contact IR Industrial Infrared Thermomerter ST520US$ 38.71 - 38.71MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR9000
Weight
2.5kg
. Introduction
ETCR9000 H/L Voltage Clamp Meter has unique features of automatic plug function, specially designed and manufactured for high voltage current measurement; use the latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 300 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.0mA ~1000A current or leakage current.
The integrated design of clamp and lead zone of ETCR9000B H/L Voltage Clamp Meter ensures uninterrupted year-round high precision, high reliability and high stability test.
The connection rods of ETCR9000B wireless high and low voltage clamp ammeter can be applied in high voltage line current measurement and online current measure below 60KV, also with the functions of peak value maintaining, data maintaining, data memory, etc. The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working. It can also be used as high and low voltage changing ratio tester, that is, respectively test the first loop and secondary loop high and low voltage current, and then obtain the voltage change through manually calculation. Insulation rod has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation and scalability, etc.
. Technical Specifications
Function |
High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement
|
Power Supply |
DC6V alkaline dry battery(1.5V AAA×4) |
Test Mode |
Clamp CT, integral approach |
Display Mode |
4 bit LCD display, with backlight function |
LCD Dimension |
47mm×28.5mm |
Meter Dimension |
Width, height, thickness: 76mm×255mm×31mm |
Clamp Dimension |
48mm |
Sampling Rate |
2 times/second |
Measurement Scope |
0.0mA~1000A (50/60Hz automatic) |
Resolution |
0.1mA |
Shift |
0.0mA~1000A automatic shift |
|
Accuracy
(23±5, below 70%RH)
|
0.0mA~299mA: ±1%±3dgt |
0.30A~9.99A: ±1.5%±5dgt | |
10.0A~199.9A: ±2%±5dgt | |
200A~399A: ±2.5%±5dgt | |
400A~600A: ±3%±5dgt | |
601A~1000A: ±4%±5dgt | |
Line Voltage |
Below 60KV line test (with 5 insulation rods operation) |
Data Memory |
99 sets, memory process is shown by MEM , full storage is shown by blinking “FULL” |
PEAK value maintaining |
Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function. |
Data Hold |
In usual testing mode, press HOLD key to keep data, shown by “HOLD” |
Data Access |
“MR” indication, can access to all data |
Overflow Display |
Over-range overflow function: shown in “OL A” |
Automatic Shutdown |
15 minutes after boot |
Battery Voltage |
When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement |
Meter Weight |
Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery) |
Working Temperature and Humidity |
-25~40; below 80%Rh |
Storage Temperature and Humidity |
-10~60; below 70%Rh |
Insulation Rod Dimension |
φ32mm, 1m/piece (5pieces) |
Insulation Strength |
AC 100kV/rms (between the 5th insulation rod and high voltage current clamp core) |
Structure |
Anti-drip type |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT (600V), IEC61326(EMC standard) |
Accessories |
Clamp Meter : 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces
|
