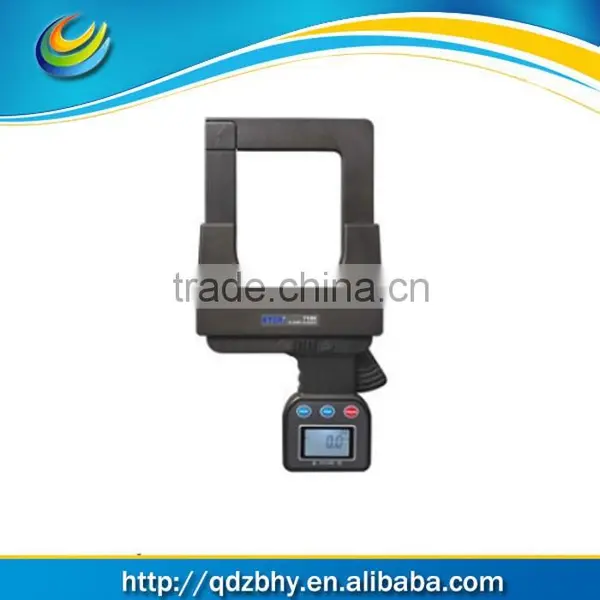

ETCR7100D Super Large Caliber DC/AC Clamp Meter
US$ 691.73 - 691.73
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR7100D
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR9000 High/Low Voltage Clamp Meter---ISO,OEM,ODMUS$ 714.11 - 714.11MOQ: 1 Set -
ETCR9100 H/L Voltage Clamp Meter Tester AC 0.00mA~600A33mmUS$ 714.11 - 714.11MOQ: 1 Set
-
ETCR9100B H/L Voltage Clamp Meter ETCR-9100B.US$ 1,080.32 - 1,080.32MOQ: 1 Set
-
ST50 Standard Infrared ThermometerUS$ 58.06 - 58.06MOQ: 1 Set
-
ST350 Infrared ThermometerUS$ 25.81 - 25.81MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR7100D
Operating Temperature
-10°C ~ 40°C
Weight
1.5kg
Product Description
Brief Introduction
ETCR7100D Super Large Caliber AC/DC Clamp Meter is well designed and manufactured for measuring AC/DC current below 600V line Measure, it adopt the latest CT technology and digital integrated technology. No exposed metal conductor in the Clamp and no-contact measure model mean current measure operation more safer and quicker. Super large Caliber is particularly suitable for thick wire current measure. This meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.
The instrument with current peak value holding, data holding, data storage and other function. Equipped with USB interface, communication line and supervision software, this meter could achieve current online monitoring, show the real time current condition via computer, with consult historical data, saving, print and other functions.
Technical Specification
Function |
Measure AC/DC current, Current peak value holding, Online current supervision. |
Power |
6V DC(LR6×4 alkaline dry batteries) |
Test Mode |
Clamp CT, Non-contact Test mode |
Clamp Size |
108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires) |
Measurement Range |
DC:0.0A~2000A, AC:0.0A~1000A |
Resolution |
0.1A AC/DC |
|
Measurement Accuracy
(Reference condition )
|
0.0mA~999A ±2%±5dgt |
| 1000A~1499A ±3%±5dgt | |
| 1500A~2000A ±4%±5dgt | |
Reference condition |
23°C±3°C, below 75%RH, measured wire at the center of the clamp |
Frequency response |
AC:45Hz~400Hz |
Sample Rate |
About 2 seconds per time |
Measured Wire Position |
Measured wire at approximately the geometric center of the clamp |
Display Mode |
4 digitals LCD display |
Dimension |
L×W×H:350×180×55(mm) |
Polarity Indication |
Automatic recognize in AC test model ,display “-” |
Gear Shift |
Automatic shift |
Line Voltage |
Below 600V Line Measure |
Data Storage |
99 sets, “FULL” symbol indicate the memory is full |
Peak Holding |
Measure and Maintain the peak value, Press HOLD
and not let it go would show the peak value in test model .
|
Data Hold |
“HOLD”symbol appears |
Overflow |
“OL”symbol appears |
Automatic Shutdown |
Automaticallyshutdown about 5 minutes after power on to reduce
battery consumption
|
Voltage Detection |
Low battery symbol “ " appears to remind the replacement of battery when the battery voltage drops below 4.6V. |
Weight of Meter |
1.5kg (with batteries) |
Reference Power |
About 17mW |
Working Temperature and Humidity |
-10°C ~ 40°C; 80%rh |
Storage Temperature and Humidity |
-10°C ~ 60°C; below 70%rh |
Insulation strength |
AC 3700kV/rms(between core and shell) |
SafetySpecifications |
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III 600V |
