Product: Electrical E3 to Fiber Modem
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery

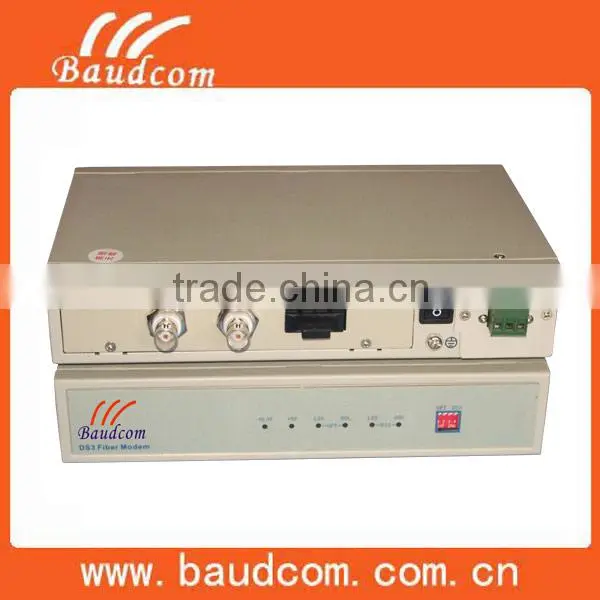

The electrical E3 to Fiber optical Modem is an interface converter for E3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect. BD-OP-E3 is an interface converter for E3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect. Complete loop-back facility supported for system diagnostic and commissioning. Compact casing and simple operation achieve the cost saving and investment protected.
electrical E3 to Fiber optical Modem
| Item | specification | Description |
| Electrical Interface | Standard | ITU-T G.703 Compliant |
| Data Rate |
|
|
| Line Code | HDB3 | |
| Physical Connector | BNC Coaxial | |
| Bit rate | 34.368 Mbps | |
| Coding | NRZ | |
| Optical interface | Connector | SC |
| Light source | Laser Diode | |
| Wavelength | 1310nm (Typical) or 1550 nm (Optional) or Single Fiber Bi-Directional (Optional) | |
| Transmission power | -12 dBm (1310nm) / -5 dBm (1550nm) | |
| Receive sensitive | -36 dBm (1310nm) / -38 dBm (1550nm) | |
| Power supply | AC 220V | Range 165V to 265 V |
| DC -48V | Range -32V to -72V | |
| Power Consumption | ≤ 3 W | |
| Environment | Working Temperature | 0°C~50°C |
| Dimension | 205(W) *135(H) * 46(D) | |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
| BD-OP-E3/AC | E3 over Fiber optical optical modem,single mode,dual fiber,20km,power AC 220V |
| BD-OP-E3/DC | E3 over Fiber optical optical modem,single mode,dual fiber,20km,power DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
