Overview
BD-ONU-214GWI is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the EPON network.
EPON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. The EPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. EPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. EPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. EPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
BD-ONU-214GWI provide one POTS ports, four GE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The BD-ONU-214GWI features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the BD-ONU-214GWI provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
Features
n Full compatible with IEEE802.3ah
n Support one POTS
n Support four GE auto-adapting Ethernet ports
n Support one 802.11 n/b/g Wi-Fi port
n Support OAM and TR069 for remote management
n Support Web for local management
n Support Auto-negotiation and MDI/MDIX
n Support the Ethernet interface rate, working mode and flows control
n Support loopback at UNI
n Support packet filtering and anti-illegal message attack protection
n Support performance statistics of Ethernet lines
n Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
n Support DHCP Option60 reporting the location information of the Ethernet interface
n Support PPPoE+ for accurate subscribers identification
n Support H.248,MGCP and SIP protocol
n Support IGMP Snooping
n Support AES-128

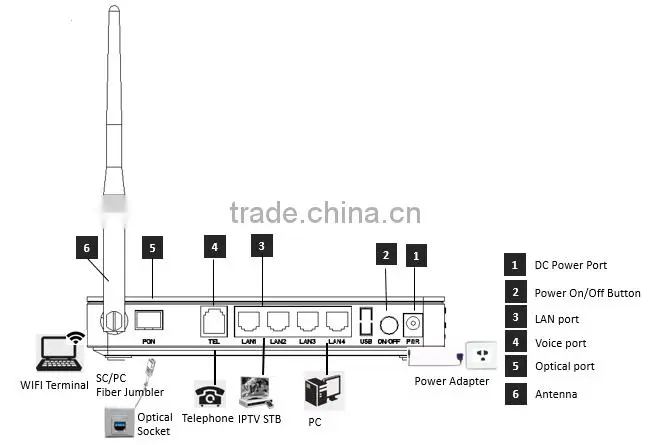

Product interface and LED definitions
Indicator |
Description |
||
1 |
WIFI |
WIFI |
Blinking:Data is being transmitted On:Wi-Fi function Opens |
2 |
LOS |
EPON optical signals |
On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
3 |
PON |
ONU Register |
On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
4 |
TEL |
Telephone port status |
On:The connection between the TEL port and the voice server has been set up Blinking:The voice service of the TEL port is established; Off:The connection between the TEL port and the voice server is not set up. |
5 |
LANn |
LAN port status |
On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
6 |
PWR |
Power status |
On: The ONU is power on; Off: The ONU is Power off; |
Specification
Item |
Parameters |
Specification |
Interface |
PON Port |
1 EPON optical interface |
Ethernet Port(LAN) |
4*10/100/1000M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
POTS Port |
1*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS |
|
Power Supply Port |
12V DC input With 12V 1A AC/DC adapter AC input |
|
Management |
Network Management |
Standard compliant OAMI interface as defined by IEEE802.3ah Support TR-O69 and WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
Environmental |
Shell |
Plastic casing |
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <7W |
|
Dimensions |
170mm(L)*130mm(W)*30mm(H) 0.3kg |
|
Environment |
Operating Temperature:0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:10%~90%(Non-condensing) |
WIFI Features
= IEEE 802.11n compliant, 2.4 GHz
= Full IEEE 802.11b/g legacy compatibility with enhanced performance
= Two-stream spatial multiplexing up to300 Mbps PHY data rates
= Support multi-SSID(Maximum 4 SSID)
= Support automatic channel selection
= Support hide SSID
= Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2.
WIFI Specification | ||
Performance parameters |
Standard |
IEEE802.11b/g/n |
Frequency |
2.400 ~ 2.500 GHz |
|
Wireless data rate |
IEEE 802.11b: 1,2,5.5,11Mbps IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps IEEE 802.11n: up to 200 Mbps |
|
Modulation schemes |
802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS 802.11b: CCK, DQPSK, DBPSK HT20: 64 QAM, 16QAM, QPSK, BPSK |
|
Channel |
13*Channel, configurable to meet the standard of USA, Canada, Japan and China |
|
RF receive sensitivity |
802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps; -91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps 802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps; -89dBm @ 12 Mbps; -867dBm @ 18 Mbps; -83dBm @ 24 Mbps; -79dBm @ 36 Mbps; -75dBm @ 48 Mbps; -75dBm @ 54 Mbps 802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps; -90dBm@6Mbps; -75dBm@54Mbps; -86dBm@m0/20MHz;-69dBm@m15/20MHz; |
|
RF Tx Power |
•TX power out B mode @ 11 Mbps: 18dBm +/- 2 • TX power out G mode @ 54 Mbps: 16dBm +/- 2 • TX power 11n mode @ HT20: 16 dBm +/-2 |
|
Encryption Mode |
64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x |
|
Transmission distance |
100m indoors coverage area 300m outdoors coverage area (varying depending on the actual environment) |
|
Application
² Solution:FTTH,FTTB,FTTO,PON+EOC
² Business:Broadband Internet,Voice,IPTV,VOD,IP Camera,WIFI
Network Construction

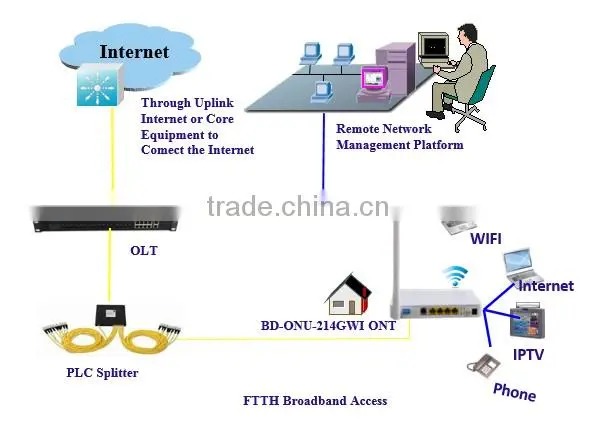

Figure: BD-ONU-214GWI Application Diagram
Ordering information
Product Name |
Product Model |
Descriptions |
|
HGU Type with Wi-Fi EPON ONU |
BD-ONU-214GWI |
4*GE Ethernet interface, 1*POTS interface, 1*EPON interface, support Wi-Fi function, plastic casing, external power supply adapter |
1.How can i get a sample?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
The devices will be well packaged by carton with Foam or other shock proof materials.
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
