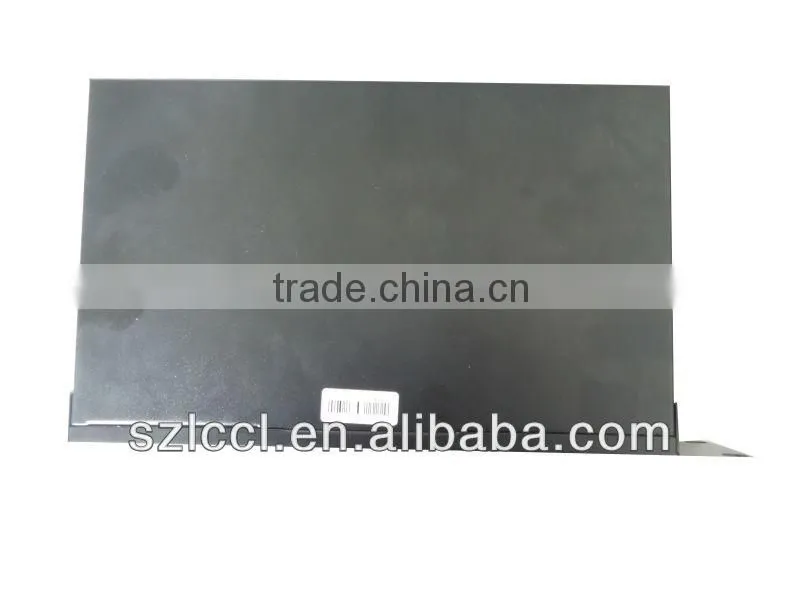

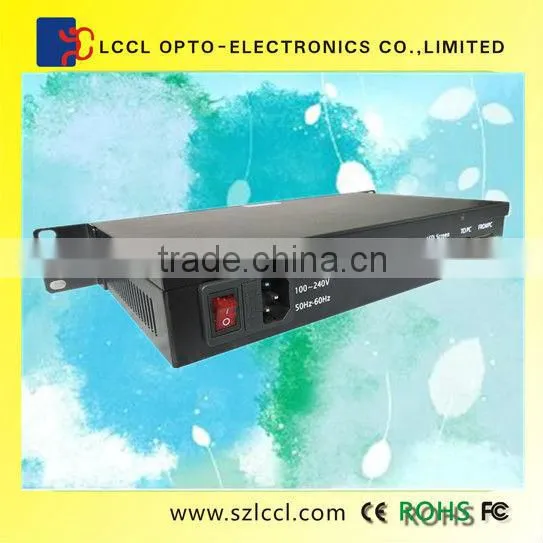

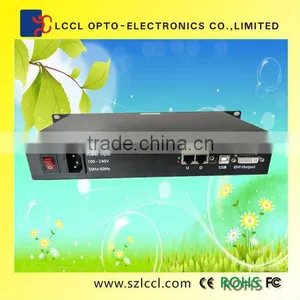

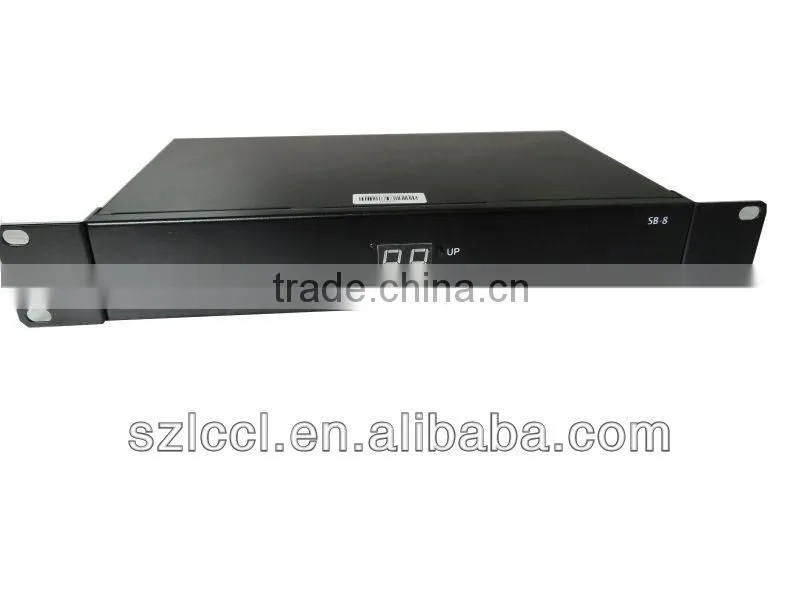

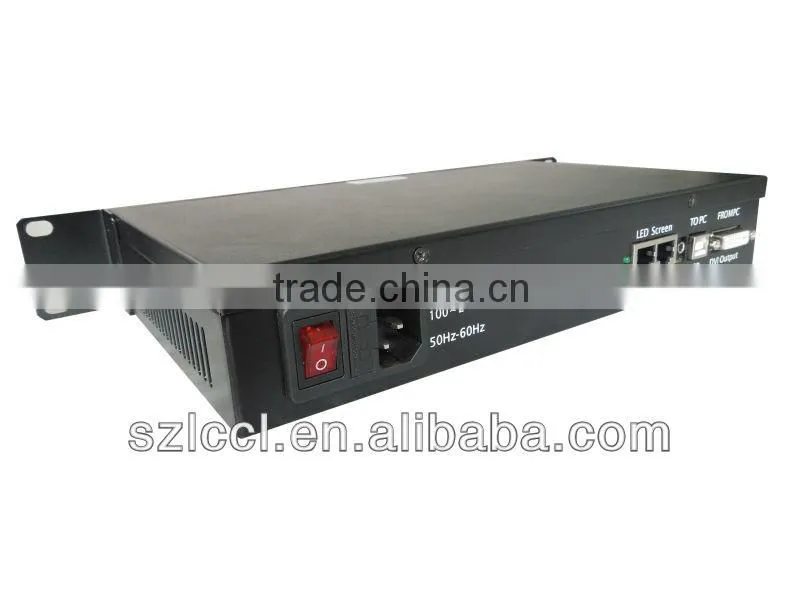

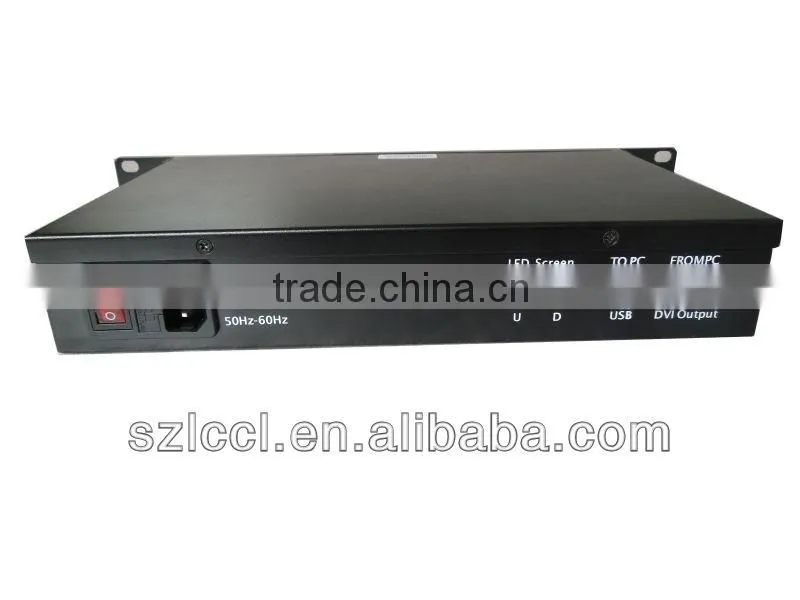

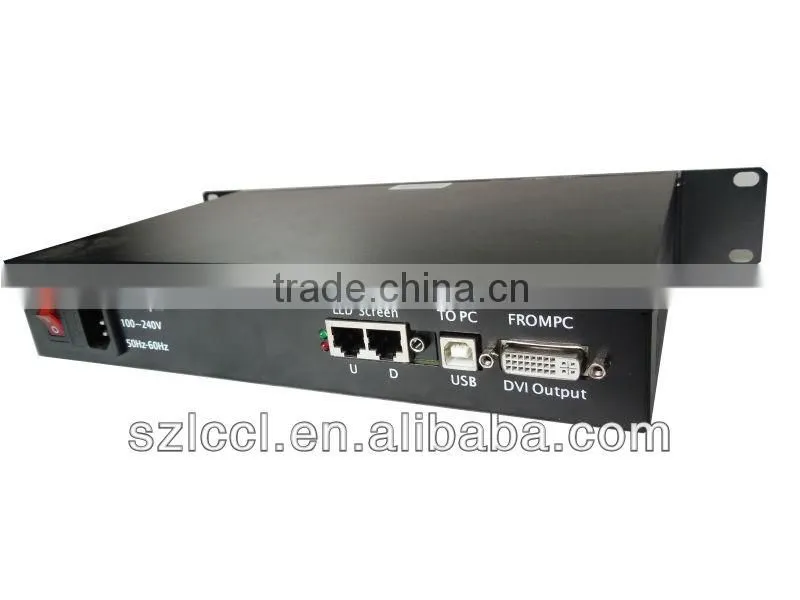

multi-interface easy to operate led screen TS852 external sending box with card

 Type

Typical value

Max value

 Supported screen type

 single color, dual-color,full-color, real pixel,virtual pixel.

 Supported LED drivers

MBI5026/MBI5030/MBI5036/
MBI5039/MBI5042/MBI5050/MBI6024/

LPD6803/DM413/DM*512/ZQL9726

TCD62D722/TC62D766/MBI5050/MBI6024

 Pixels by single sending card

1280*1024(dual ports)

 Number of receiving cards connected by cable

<100

256

 Pixels by single receiving cards

256 *(full color)

1024 *512(dual color)

512*384(full color)

1280 *512(dual color)

 RGB data groups by single receiving card

16-24

24

 Lines by one group RGB

1/2/4/8/16/32

32

Grey grades

4096(4k)

65536(64k)

 Data CLK frequency

15.62MHz

31.25MHz

 Refresh rate

180Hz

>3600Hz( such as MBI5042)

 Brightness wastage

15~20%

<5%

 PWM brightness adjust degree

256(may automatically adjust by brightness sensor)

Electronic current plus brightness adjustment grade

64/256(according to led drivers)

 Dot by dot revise pixels by PWM brightness

64x64

256x256

Pixels on open circuit and short circuit error detection

static:2048*16;1/2:1024*16;
1/4:2048*16;1/8:4096*16;1/16:8192*16

 Fiber transmission distance

 Multi-mode fiber:500meters; single-mode fiber:10KMs

 Other functions

 Power on gradual protection ,OE Polarity switch protect screen scan tubes, led screen self-detecting

No sending card function

Sending images by 1000M network card PC
