4GE EPON ONU
Brief Views
EPON ONU BD-ONU-104G is designed mainly for FTTH ,FTTO application. EPON ONU BD-ONU-104G support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio, 20km distance and provide 1uplink EPON port.
BD-ONU-104G together with OLT could realize flexible network structure, maintenance and provide total FTTx solutions.
BD-ONU-104G has 1 PON port , 4*10/100/1000M BASE-T ports .
Functional Feature
n Support port-based rate limitation and bandwidth control;
n In compliant with IEEE802.3ah Standard
n Up to 20KM transmission Distance
n Support data encryption, group broadcasting, port Vlan separation , etc.
n Support Dynamic Bandwidth Allocation (DBA)
n Support ONU auto-discovery/Link detection/remote upgrade of software;
n Support VLAN division and user separation to avoid broadcast storm;
n Support power-off alarm function ,easy for link problem detection
n Support broadcasting storm resistance function
n Support port isolation between different ports
n Support ACL and SNMP to configure data packet filter flexibly
n Specialized design for system breakdown prevention to maintain stable system
n Support software online upgrading
n EMS network management based on SNMP, convenient for maintenance
Specification
Item |
Parameter |
PON Interface |
1 EPON optical interface |
User Ethernet |
4*10/100/1000Mauto-negotiation |
Power Interface |
12V DC Power supply |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
Business Capability |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection |
Network Management |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management |
Status monitor, Configuration management, Alarm management, |
LED Indicator |
PWR: Power up or down OPTIN: Optical Link Status LINK: ONU Registered LAN: Link Status of Ethernet Interface |
Shell |
Plastic casing |
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: < 2.5W |
Physical |
Item Dimension: 160mm(L) x 120mm(W) x 32.5mm (H) Item weight: 0.2kg |
Environmental |
Operating temperature: 0 to 50 ºC |
Application
² Typical Solution: FTTH
² Typical Business: INTERNET,IPTV,IP Camera

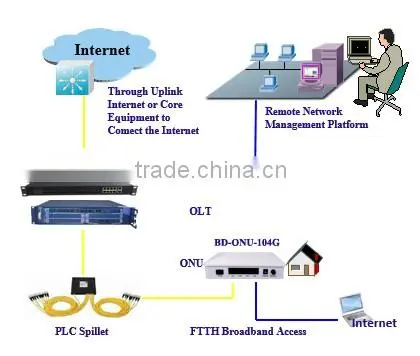

Figure: BD-ONU-104G Application Diagram
Ordering information
Product Name |
Product Model |
Descriptions |
SFU EPON ONU |
BD-ONU-104G |
4*10/100/1000M Ethernet interface, 1 EPON interface, plastic casing, external power supply adapter |
