320*160mm HUB12 32*16dts amber color dip outdoor p10 led module from liyi
1. outdoor p10 led module
2.High brightness
3.Led module manufacture
4.RF/GPRS/RS232/WIFI communication
1.Product description for outdoor p10 led module
Specification:
model:P10-OD-A
size:320x160mm
pixel configuation:1A
module resolution:32x16dots
display color:amber color

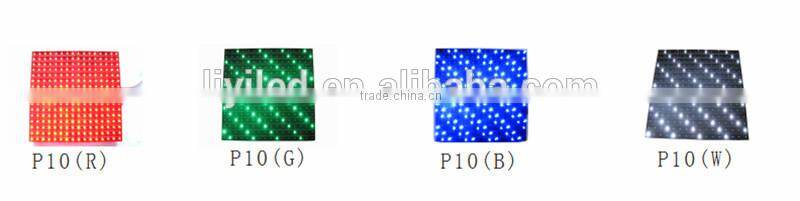

2.Module descriptions for outdoor p10 led module
Model |
Use environment |
Module size |
Display color |
Module Resolution |
Drive mode |
Data interface |
P10-SD-R |
Semi-outdoor |
320*160(mm) |
Red |
32*16 dots |
1/4 scan |
HUB 12 |
P10-SD-G |
Semi-outdoor |
320*160(mm) |
Green |
32*16 dots |
1/4 scan |
HUB 12 |
P10-SD-B |
Semi-outdoor |
320*160(mm) |
Blue |
32*16 dots |
1/4 scan |
HUB 12 |
P10-SD-W |
Semi-outdoor |
320*160(mm) |
White |
32*16 dots |
1/4 scan |
HUB 12 |
P10-SD-A |
Semi-outdoor |
320*160(mm) |
Amber |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-R |
Outdoor |
320*160(mm) |
Red |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-G |
Outdoor |
320*160(mm) |
Green |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-B |
Outdoor |
320*160(mm) |
Blue |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-W |
Outdoor |
320*160(mm) |
White |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-A |
Outdoor |
320*160(mm) |
Amber |
32*16 dots |
1/4 scan |
HUB 12 |
P10-OD-RG |
Outdoor |
320*160(mm) |
Red+green+yellow |
32*16 dots |
1/4 scan |
HUB 08 |
P16-OD-R |
Outdoor |
256*128(mm) |
Red |
16*8 dots |
1/4 scan |
HUB 12 |
P16-OD-RG |
Outdoor |
256*128(mm) |
Red+green+yellow |
16*8 dots |
1/4 scan |
HUB 08 |
P20-OD-RG |
Outdoor |
320*160(mm) |
Red+green+yellow |
16*8 dots |
1/4 scan |
HUB 12 |
Model |
Use environment |
Module size |
Pixel component |
Module Resolution(dots) |
Drive mode |
Data interface |
P4-ID-FC |
Indoor |
256*128(mm) |
1R1G1B(2121) |
64*32 |
1/16 scan |
HUB 75 |
P5-ID-FC |
Indoor |
320*160(mm) |
1R1G1B(3528) |
64*32 |
1/16 scan |
HUB75 |
P6-ID-FC |
Indoor |
192*96(mm) |
1R1G1B(3528) |
32*16 |
1/8 scan |
HUB 75 |
P7.62-ID-FC |
Indoor |
244*122(mm) |
1R1G1B(3528) |
32*16 |
1/8 scan |
HUB 75 |
P10-ID-FC |
Indoor |
320*160(mm) |
1R1G1B(3528) |
32*16 |
1/4scan |
HUB 75 |
Model |
Use environment |
Module size |
Pixel component |
Module Resolution(dots) |
Drive mode |
Data interface |
P6-OD-FC(SMD) |
Outdoor |
192*192(mm) |
1R1G1B(3528SMD) |
32*32 |
1/4 scan |
HUB 75 |
P8-OD-FC |
Outdoor |
256*128(mm) |
1R1G1B |
32*16 |
1/4 scan |
HUB 75 |
P10-OD-FC-A |
Outdoor |
320*160(mm) |
1R1G1B |
32*16 |
1/4 scan |
HUB 75 |
P10-OD-FC-B |
Outdoor |
160*160(mm) |
1R1G1B |
16*16 |
1/4 scan |
HUB 75 |
P12-OD-FC |
Outdoor |
192*192(mm) |
1R1G1B |
16*16 |
1/4scan |
HUB 75 |
P16-OD-FC-B |
Outdoor |
256*256(mm) |
1R1G1B |
16*16 |
Static scan |
HUB 75 |
P20-OD-FC |
Outdoor |
320*160(mm) |
2R1G1B |
16*8 |
Static scan |
HUB 75 |
P25-OD-FC |
Outdoor |
400*200(mm) |
2R1G1B |
16*8 |
Static scan |
HUB 75 |
3.Certification for outdoor p10 led module
4.Packing & Shipping for outdoor p10 led module
5.Our services for outdoor p10 led module
1.Two years warranty
2.CE & RoHS certificated
3.30% deposit before products,70% balance to be paid before delivery
4.Its can be custom.
6.Company information for outdoor p10 led module
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
7.FAQ for p10 led module
1.Any question please feel free to contact Sherry Tang
Skype:sherry201222
Wechat: tangxiujiao
Linkedin & Email : sherry at
2.Products also can be customsized
