LIYI CE ROHS 256*256mm 16*16 HUB08 RG front service p16 led pharmacy cross module
- 10000 Piece / Pieces per Month
- Shenzhen/HK
- T/T Credit Card
- 320*160mm 16*8 HUB08 1/4scan RG tri-color p20 led module/p20 led display module
- 320*320mm HUB75 large outdoor p10 full color billboard led display module
- wholesale price 320*160mm 16x8 HUB12 1/4 scan static blue single color p20 outdoor led display module for pharmacy cross
- indoor/outdoor p7.62/ p10 /p16/p20/p25 32*16 single color tri-color rgb led display module Quality Choice
- front service 320*160mm static scan led display module p10 blue outdoor 10mm led module
- wholesale high quality 400*200mm 16*8 HUB75 static 2R1G1B outdoor rgb full color P25 led module
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LIYI | Model Number: | 16*16 dots |
Usage: | Outdoor | Tube Chip Color: | Other, TRI-COLOR:RG/RB/GB | Display Function: | Other, animation/graphics/time/date/word |
Pixels: | 16mm | Screen Dimension: | 256*256mm |
Packaging Details
LIYI CE ROHS 256*256mm 16*16 HUB08 RG front service p16 led pharmacy cross module: carton cases/plywood cases
Product Description
LED MODULE-FRONT MAINTENANCE
GOOD QUALITY-FACTORY PRICE
Skype: liyisales03
LIYI CE ROHS 256*256mm 16*16 HUB08 RG front service p16 led pharmacy cross module
1.Technical Parameters
Model | Use environment | Module size | Display color | Module Resolution | Drive mode | Data interface |
P10-OD-SC | Outdoor | 320*160(mm) | Red/ Green/ Blue/ White/ Amber | 32*16 dots | 1/4 scan | HUB 12 |
P16-OD-SC | Outdoor | 256*256(mm) | Red/ Green/ Blue/ White/ Amber | 16*16 dots | 1/4 scan | HUB 12 |
P20-OD-SC | Outdoor | 320*160(mm) | Red/ Green/ Blue/ White/ Amber | 16*8 dots | 1/4 scan | HUB 12 |
P25-OD-SC | Outdoor | 400*200(mm) | Red/ Green/ Blue/ White/ Amber | 16*8 dots | 1/4 scan | HUB 12 |
P10-OD-TC | Outdoor | 160*160(mm) | RG/RB/GB | 16*16 dots | 1/4 scan | HUB 12 |
P16-OD-TC | Outdoor | 256*256(mm) | RG/RB/GB | 16*16 dots | 1/4 scan | HUB 08 |
P20-OD-TC | Outdoor | 320*160(mm) | RG/RB/GB | 16*8 dots | 1/4 scan | HUB 08 |
P25-OD-TC | Outdoor | 400*200(mm) | RG/RB/GB | 16*8 dots | 1/4 scan | HUB 08 |
P10-OD-FC | Outdoor | 160*160(mm) | RGB | 16*16 dots | 1/4 scan | HUB 75 |
P16-OD-FC | Outdoor | 256*256(mm) | RGB | 16*16 dots | 1/4 scan | HUB 75 |
P20-OD-FC | Outdoor | 320*160(mm) | RGB | 16*8 dots | 1/4 scan | HUB 75 |
P25-OD-FC | Outdoor | 400*200(mm) | RGB | 16*8 dots | 1/4 scan | HUB 75 |
2.Product details

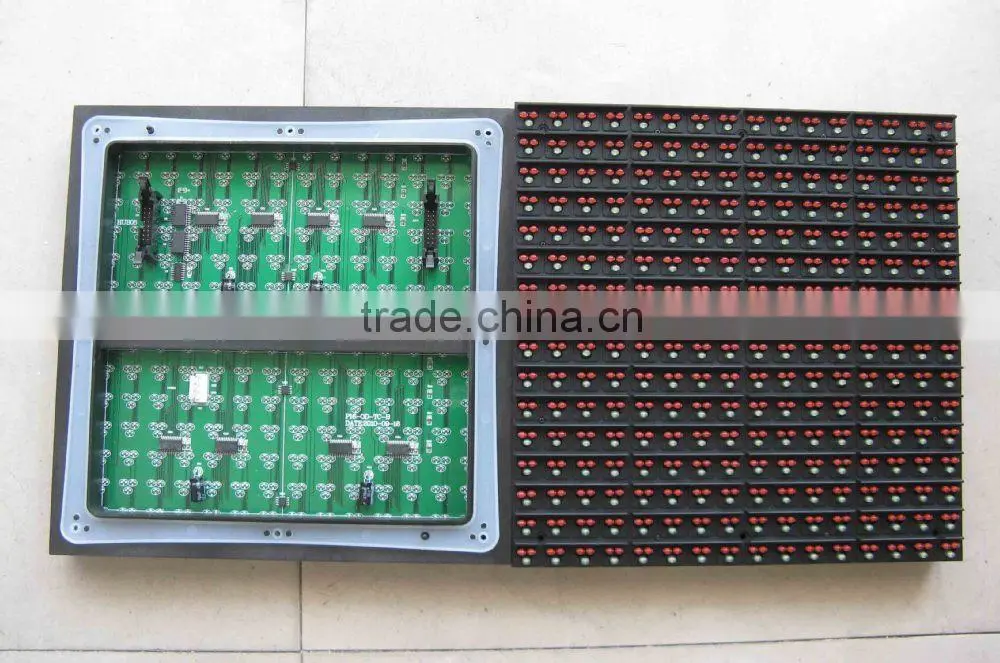

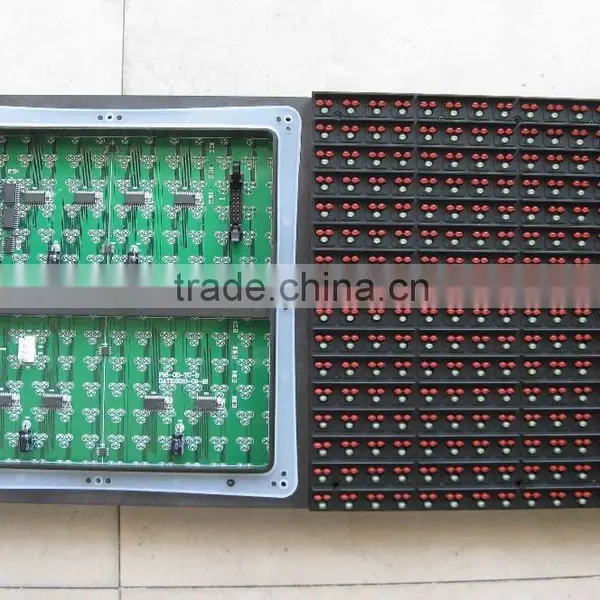

P16 outdoor tri-color led module, 256*256mm
P16-OD-RG | Outdoor | 256*128(mm) | Red+green+yellow | 16*8 dots | 1/4 scan | HUB 08 |
3.The Advantage of LED Module-Front Maintenance
ONE: Good material, fully waterproof
TWO: Good flatness, more stronger
THREE: Super slim cabinet
FOUR: Good display effects
4.Application and Structure
STRUCTURE
LED DISPLAYS
LED PHRMACY CROSS
5.TRADE TERM
1. MOQ:1piece
2.Sample can be delivered in 10 days
3.Shipping freight are quoted under your requests.
4.Shipping port: Shenzhen, Mainland China.
LIYI display is a Chinese company which specializes in the designing, developing and manufacturing of advanced technologic optoelectronics display systems. Our many years of experience in this area allow us to guarantee the quality and safety of our products, the philosophy of our company is the continuous improvement in the development and design of our products. Promote your products with LED displays!!!
6.CERTIFICATE
Company Profile
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America^, with projects across several provinces in Mainland.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting.
Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends' trust around the world!
