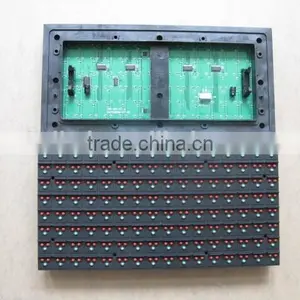

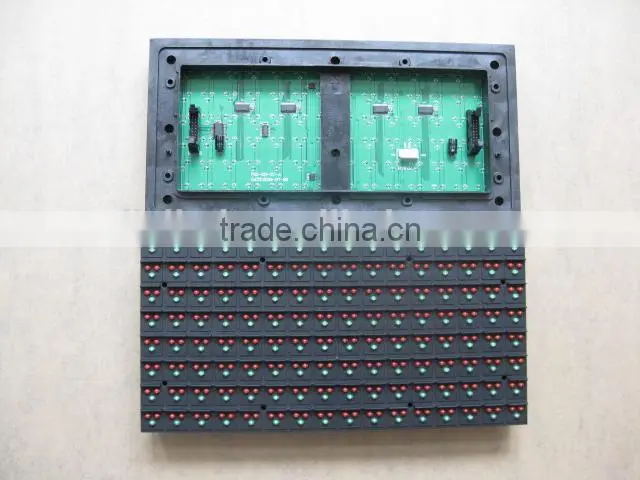

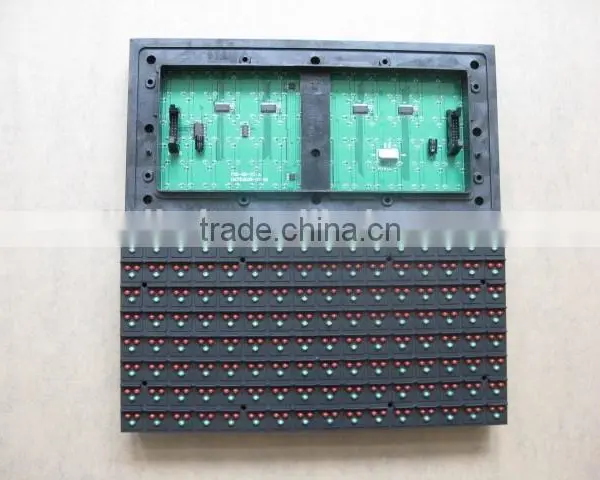

320*160mm 16*8 HUB08 1/4scan RG tri-color p20 led module/p20 led display module
1.P20 RG LED Display Module
P20-OD-RG |
Outdoor |
320*160(mm) |
2R1G |
16*8 |
static scan |
HUB 08 |
2.Features
•2500 pixel dots per square meter resolution
•With super-high brightness LED, high contrast
•High frame frequency, wider view angel
•With module development and distributed scan technology, high reliability
•Universal AC input / full range
•IP65 protection level, indoor solution
•PC synchronous or asynchronous control(optional)
•Use common video play software, easy to use
•2 years warranty
3.Technical Parameters for P20 Led Display
| Item | LIYI-OD-P20DIP |
| Pixel pitch | 20mm |
| Pixel density | 2500 dots/m2 |
| Pixel configuration | 2R1G(346DIP) |
| Max brightness | 6000 nit |
| View angle(horizontal) | ±60° |
| Gray scale | 65536 (16 bit) |
| Colors | 16.7M |
| Color temperature | 6500K |
| Refresh rate | 3000HZ |
| Contrast ratio | 4000:01:00 |
| Frame rate | 60HZ |
| Standard cabinet size | 1280×960mm |
| Weight | 60KG |
| Cabinet resolution | 64×48 pixel |
| Cabinet material | Steel (cold rolled iron) or Aluminum (optional) |
| Protection level | IP65 |
| Max power consumption | 800W/m2 |
| AVE. consumption | 300W/m2 |
| Drive Method | Static, constant current |
| Malfunction dot rate | 0.1≤‰ |
| Control mode | PC synchronous or asynchronous control(optional) |
| Input voltage(AC) | AC90—240V |
| Operation voltage | DC5V |
| Operation temperature | -20~60℃ |
| Operation humidity | 10%~90% |
| MTBF | 1000h |
| Life span | 100000h |
4.Control Mode
asynchronous control
synchronous control

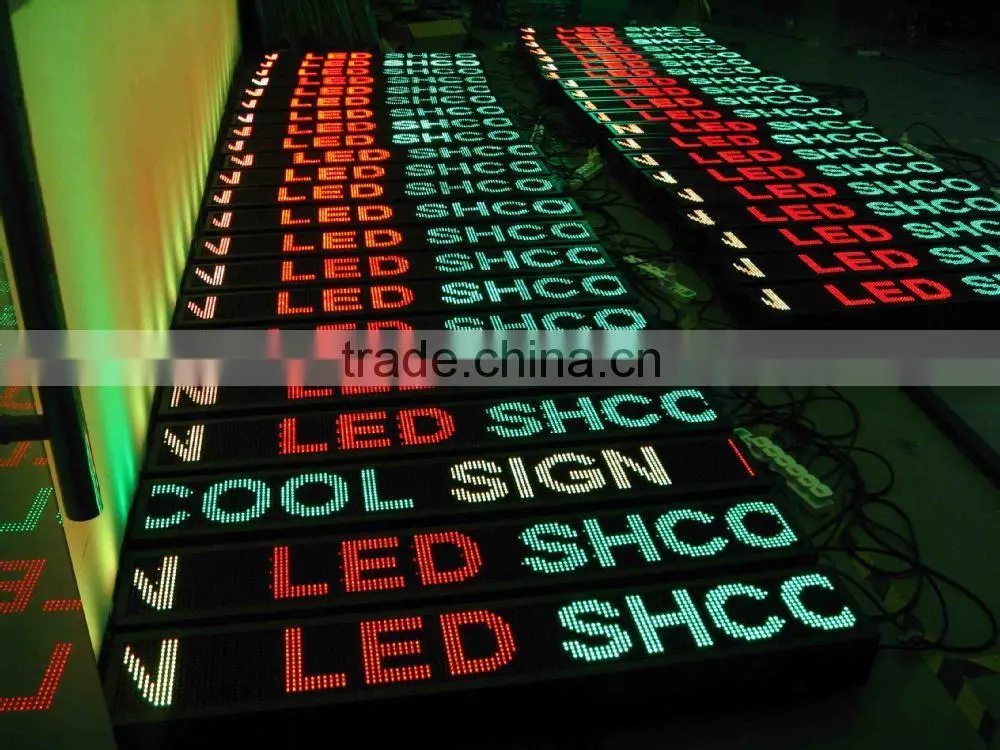

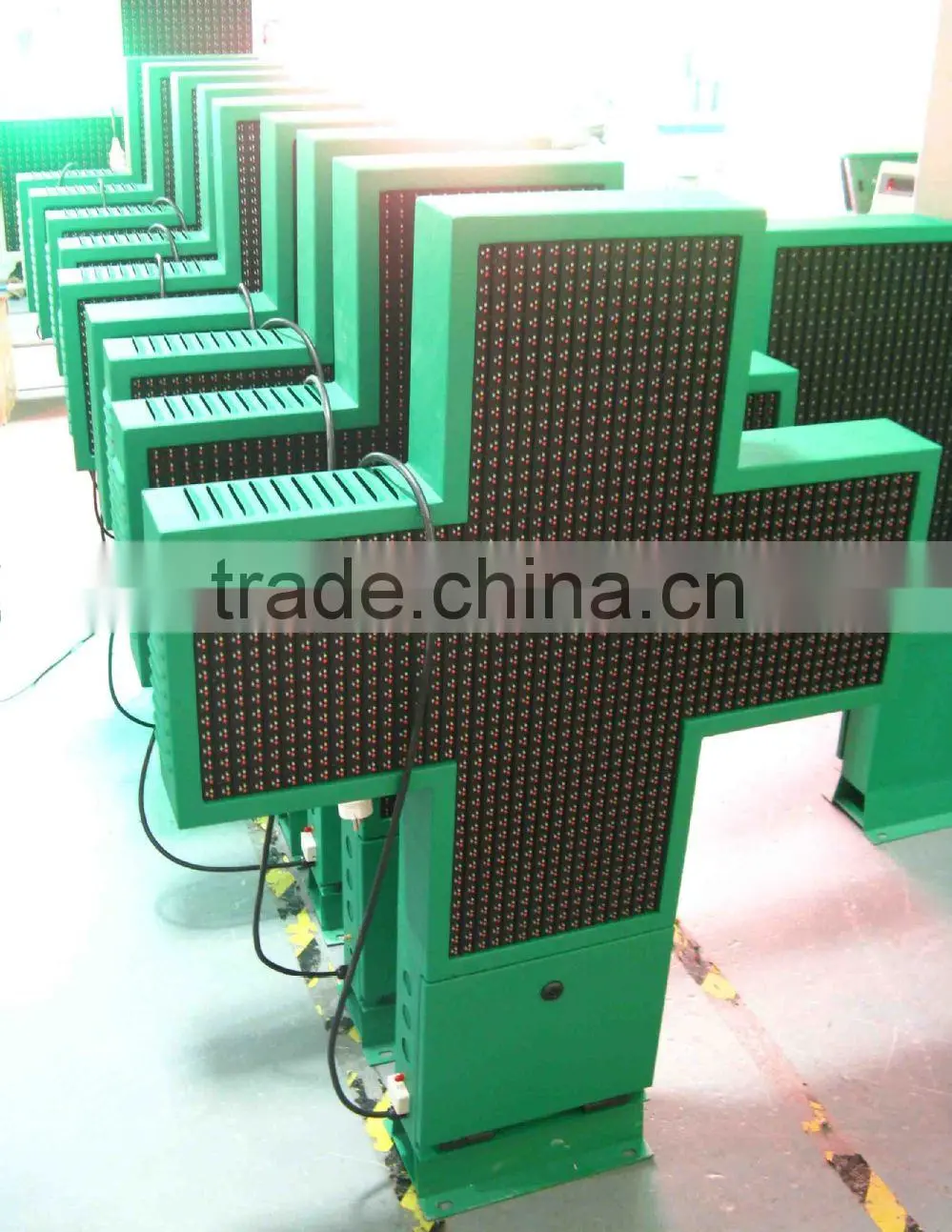

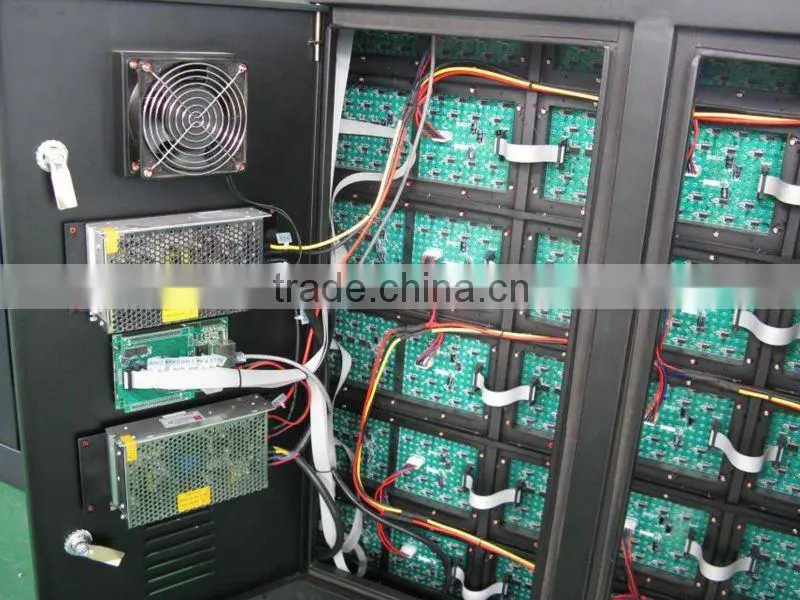

5.Cabinets and Projects
6.Packing
7.Other Module Types
Model |
Use environment |
Module size |
Display color |
Module Resolution |
Drive mode |
Data interface |
P10-OD-SC |
Semi-outdoor/Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
32*16 dots |
1/4 scan |
HUB 12 |
P16-OD-SC |
Outdoor |
256*256(mm) |
Red/ Green/ Blue/ White/ Amber |
16*16 dots |
1/4 scan |
HUB 12 |
P20-OD-SC |
Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P25-OD-SC |
Outdoor |
400*200(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P10-OD-TC |
Semi-outdoor/Outdoor |
320*160(mm) |
RG/RB/GB |
32*16 dots |
1/4 scan |
HUB 08 |
P16-OD-TC |
Outdoor |
256*256(mm) |
RG/RB/GB |
16*16 dots |
1/4 scan |
HUB 08 |
P20-OD-TC |
Outdoor |
320*160(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P25-OD-TC |
Outdoor |
400*200(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P6-OD-FC(SMD) |
Outdoor |
192*192(mm) |
1R1G1B(3528SMD) |
32*32 |
1/4 scan |
HUB 75 |
P8-OD-FC |
Outdoor |
256*128(mm) |
1R1G1B |
32*16 |
1/4 scan |
HUB 75 |
P10-OD-FC |
Semi-outdoor/Outdoor |
160*160(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*160(mm) |
RGB |
32*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*320(mm) |
RGB |
32*32 dots |
1/4 scan |
HUB 75 |
P16-OD-FC |
Outdoor |
256*256(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P20-OD-FC |
Outdoor |
320*160(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P25-OD-FC |
Outdoor |
400*200(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P31.25-OD-FC |
Outdoor |
250*250(mm) |
4R2G2B |
8*8 dots |
static |
HUB 75 |
8.Factory Profile
9.Our Service
1) Shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
10.Certification
