SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box

Name: SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box
Brand: LINSN
SKU: 100370137
Availability: InStock

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box thumbnail-1

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box thumbnail-2

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box thumbnail-3

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box thumbnail-4

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box photo-1

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box photo-2

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box photo-3

SB-8 TS801 TS802 DS801 DS802 LINSN Sender Box photo-4

US$ 195 - 250 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LINSN

Model Number:

TS801 TS802 DS801 DS802

Contact Supplier Request Quote Chat Now

Shenzhen Liyi Optoelectronic Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LINSN

Model Number TS801 TS802 DS801 DS802

Usage Outdoor

Tube Chip Color Other, single color/dual color/full color

Display Function Other, aniamtion/graphics/video/time/date/humidity/temperature

Pixels Other, P2.5/P3/P4/P5/P6/P7.62/P8/P10/P16/P20/P20/P25/P31.25

Screen Dimension Customized Size

Product Description

Professional led display manufacturer, over 13 years
Factory price, covering all pixels, custom make

Skype:liyisales03

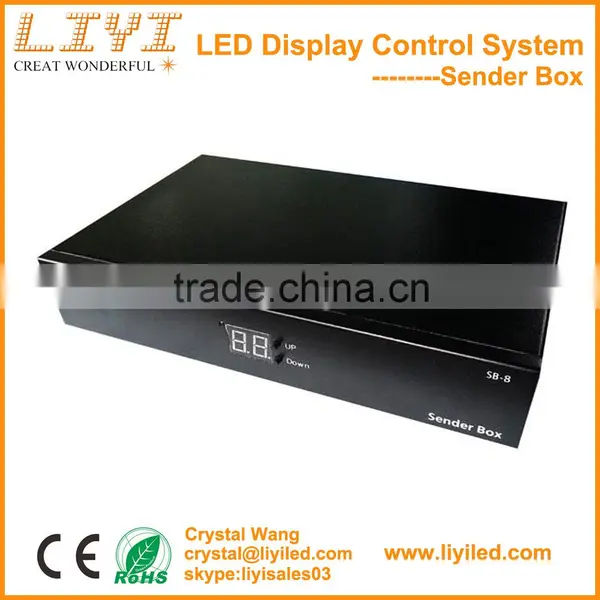

SB-8 TS801 TS802 DS801 DS802 LINSN sender box

1.LINSN Sender Box Specification

Outer Box Specification
Size: 280mm*178mm*50mm
Power supply:110-220V AC

Features:

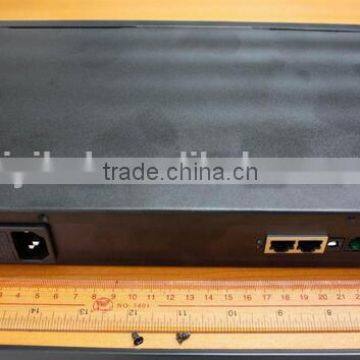

-Data input: DVI-D
-Data output: RJ45
-Communication cable: USB

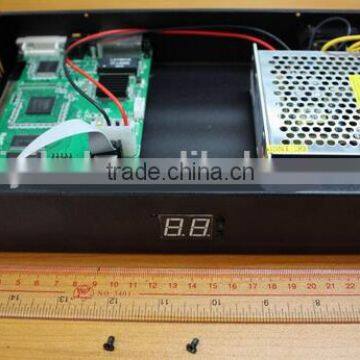

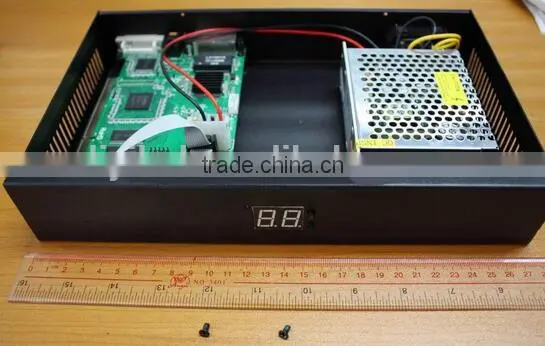

-The outer box is made to have the sending card portable.
-Independent power supply, switch on/off control on box
-One TS801/TS802/DS801/DS802 sending card can be put inside.

-5V DC internal power supply for sending card.

-16 grades brightness manually adjust in the front penal.

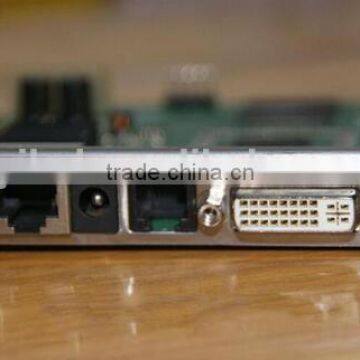

2.802 Sending Card Parameters

1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.

Full-color sending card supports full-color, dual-color and single color led display

Dual-color sending card supports dual-color and single color led display.

2. 802 sending card max supports 2048*640

3. Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280

4. Audio Transmission Function

802 sending card sends audio data using network cable, and Function board outputs audio

signals to the display.

Double 24bits 64KHZ hifi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.

5. Cascade function

Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded

to support a super large led display

6. Sending card U/D port flexibility for carrying half width or half height

For example, TS801 can max support 1280*1024 with two ports

A single network output port supports 1280*512 or 640*1024

7. Sending card rotation function

In Sender setting, sending card has 0, 90, 180, 270 degree rotation function

8. Sending card zoom in/out function

In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out

9. Supporting 10-bit colors

The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.

The eighth supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to

work with our video processors using the 30 bits TTL.

10. Multi-display synchronous and combination functions.

One sending card can control multi-displays, realizing displays combination, synchronous

display, and independent play.

By point correction, by card (cabinet) correction function	By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256. By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256.
Intelligent identification card function	Intelligent identification procedures can identify double color, full color, virtual, lighting, etc all kinds of various drivers board scanning mode and various kinds of signal , recognition rate reached 99%, a collection in hand, do screen pillow.
65536 level (64 K) gray arbitrary setting function	According to the situation of display customers can arbitrarily set from no gray to level 65536 (64 K), make your screen to achieve the best display effect.
The refresh rate arbitrary setting, phase lock, synchronization function	set arbitrarily from 10 Hz refresh rate-3000 Hz, phase lock function to make the screen refresh lock the computer monitor refresh rate in integer times, put an end to the image rent, ensure perfect image reappearance. Phase lock synchronous range of 47 Hz-76 Hz.
Maximum dots	Double cable with 1280 x1024 dots, the single cable with 1024 X640 1280X512
Double cable heat backup function	The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer have problems, another one automatically replace it, also can be used for one computer with double cable control, when one cable have problems, another one automatically take it over, making the normal work of screen to get maximum security.
Many screens synchronization and composite function	Support a piece of sending card controlling pieces screens, the working state of screens can be arbitrary combination, synchronous display, independent broadcasting, can be through the shortcut key, fast switching.
256 level automatically brightness adjustment	A level 256 automatic adjustment function make display brightness adjustment more effective.
Program online upgrade function	If the screen receiving card program needs to be upgraded, need to open display power and update through the LED studio, no need to detach receiving card from the display.
Break the traditional ideas without dial code switch	No dial code switch design, all Settings through the computer.
Test function	Receiving card integration test function, need not take send card can test display, slash, gray, red, green, blue, and the light, etc many types test mode.
Long distance transmission	Maximum transmission 170 meters (measured), ensure transmission 140 meters.
Supporting software	LED studio 10.0
