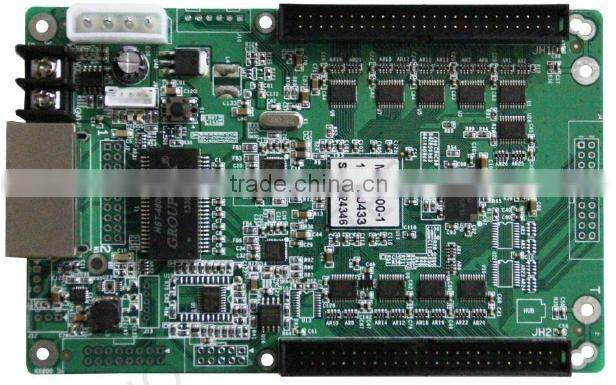

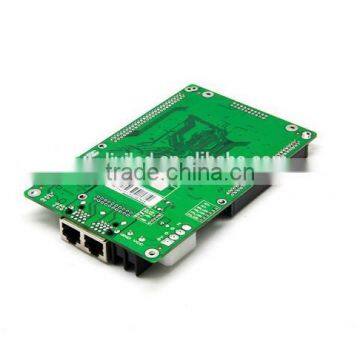

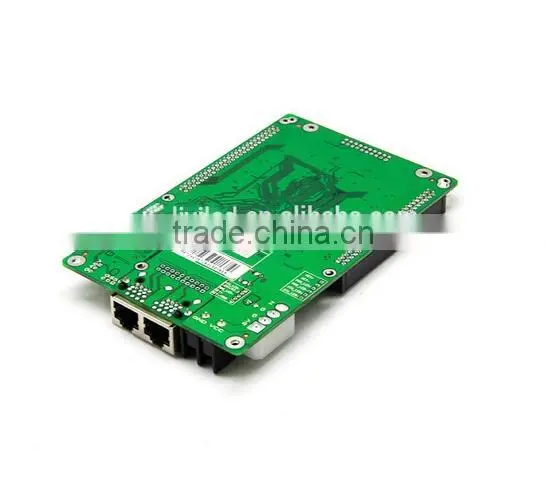

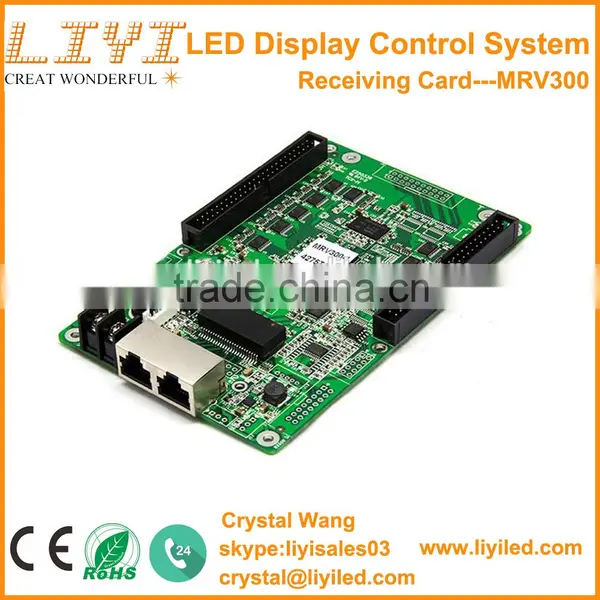

NOVASTAR HUB75 MRV300 NOVA LED receiving card
1.Specification
Novastar MRV300 full color led screen controller NOVA receiving card + Hub card chromaticity calibration supported with high referesh and high gray grade feature.
Nova M3 MRV300 is the standard model of Nova receiving card. It has the following characteristics:
1) Single card outputs 16-group of RGBR 'data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256x220;
5) Support configuration file readback;
6) Support program copy;
7) Support temperature monitoring.
8) Support Ethernet cable communication status detection;
9) Support power supply voltage detection;
10) Support pixel by pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for eachLED;
11) Support pre-store picture setting;
12) Comply with EU RoHs standard;
13) Comply with EU CE-EMC standard;
2.Output Interface Definition
Under all the three different working modes of it, two 50P interface can output different data, and only one common program and software is required, no customized program necessary; interface is defined as follows:
1) 16-group data mode
Support 16-group of RGBR 'parallel data, defined as follows:
Virtual R signal in the last data group of each 50pin hub is decoding signal E at 1/32 scan mode.
1 | GND | VCC | 2 |
3 | GND | VCC | 4 |
5 | GND | CTRL | 6 |
7 | R8R/E | B8 | 8 |
9 | G8 | R8 | 10 |
11 | R7R | B7 | 12 |
13 | G7 | R7 | 14 |
15 | R6R | B6 | 16 |
17 | G6 | R6 | 18 |
19 | R5R | B5 | 20 |
21 | G5 | R5 | 22 |
23 | R4R | B4 | 24 |
25 | G4 | R4 | 26 |
27 | R3R | B3 | 28 |
29 | G3 | R3 | 30 |
31 | R2R | B2 | 32 |
33 | G2 | R2 | 34 |
35 | R1R | B1 | 36 |
37 | G1 | R1 | 38 |
39 | D | C | 40 |
41 | B | A | 42 |
43 | LAT | CLK | 44 |
45 | OE | GND | 46 |
47 | VCC | GND | 48 |
49 | VCC | GND | 50 |

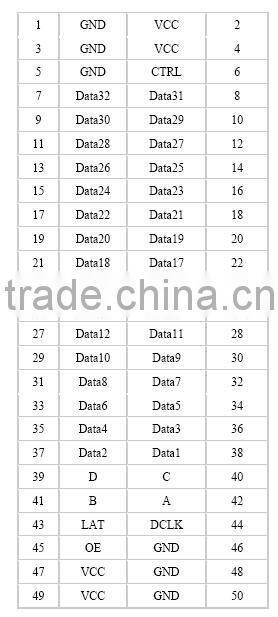

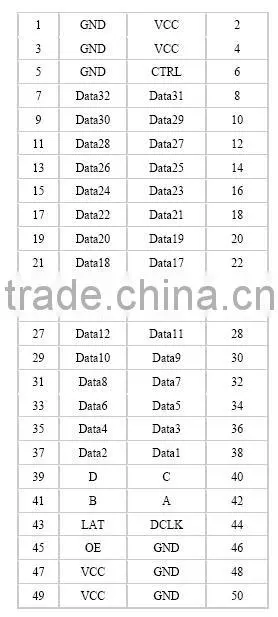

2) 20-group parallel data mode
Support 20 sets of parallel data, defined as follows:
3) 64-group serial data mode
Under serial mode, there are 64 data cables totally. Each cable can drive one LED bar independently.
In case of horizontal LED bar, the default is, Data1 drives the first row from the top, and Data64 drives the 64th row. (front view) In case of vertical LED bar, the default is, Data1 drives the first column of from the left, and Data64 drives the 64th column. (front view)

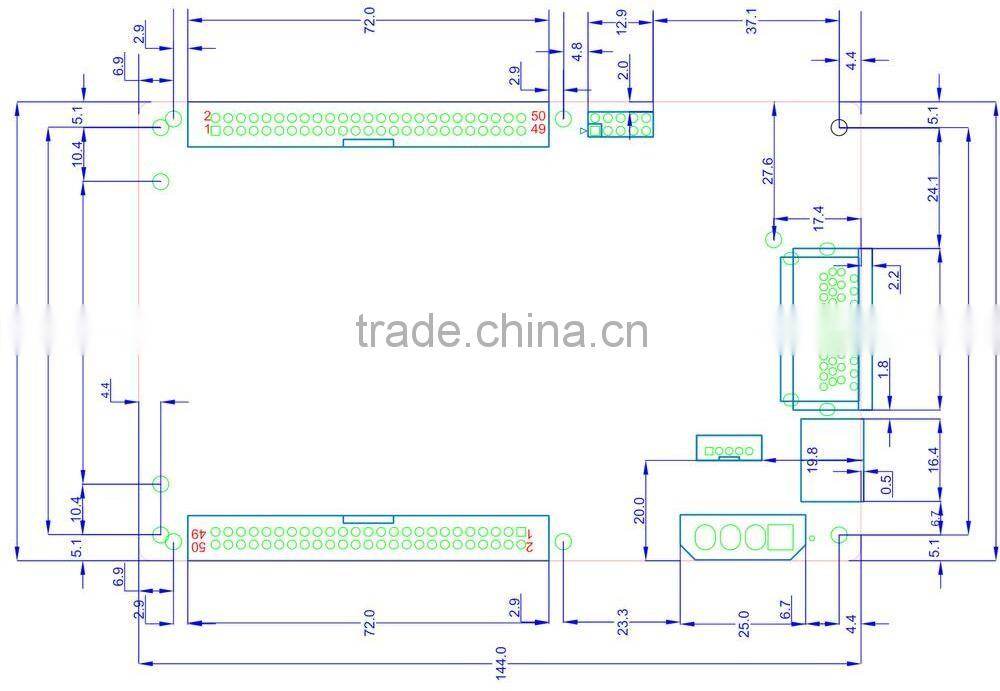

3. Dimensions and interface
4. Specific Model List
To meet the needs of different customers, Nova provides more specific models of the products, including standard products in stock, other models need to be customized;
Model | Specification |
MRV300-1 | Standard model, male connector on top |
MRV300-2 | Male connector on bottom |
MRV300-3 | Female connector on top |
MRV300-4 | Female connector on bottom |
5. Working Conditions
Rated voltage (V) | 5.0 | Maximum | 5.5 | Minimum | 3.3 |
Rated current (A) | 0.5 | Maximum | 0.55A | Minimum | 0.45A |
Rated power (W) | 2.5 | Maximum | 3 | Minimum | 2 |
Limit temperature (℃) | Maximum | 100.0 | Minimum | -40.0 | |
Temperature of working environment (℃) | Maximum | 75.0 | Minimum | -20.0 | |
Humidity of working environment (%) | Maximum | 95.0 | Minimum | 0.0 |

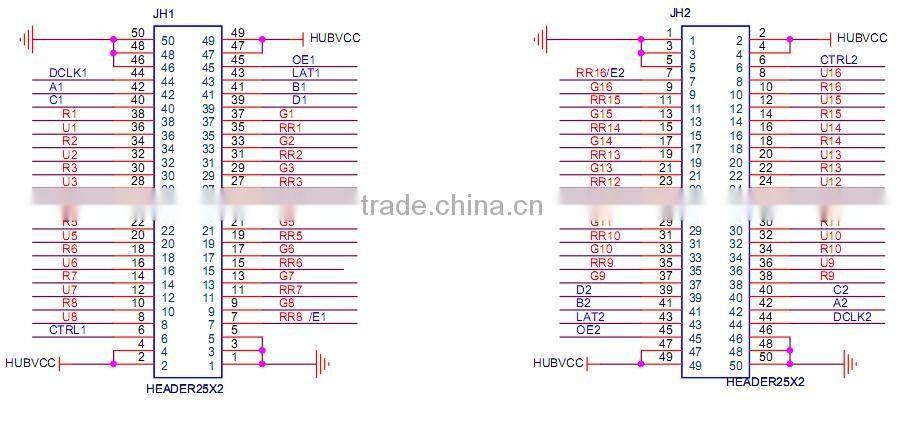

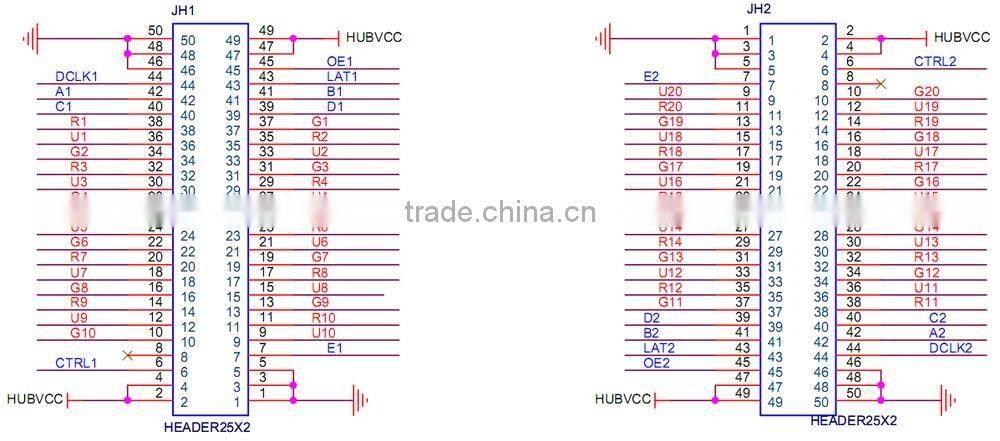

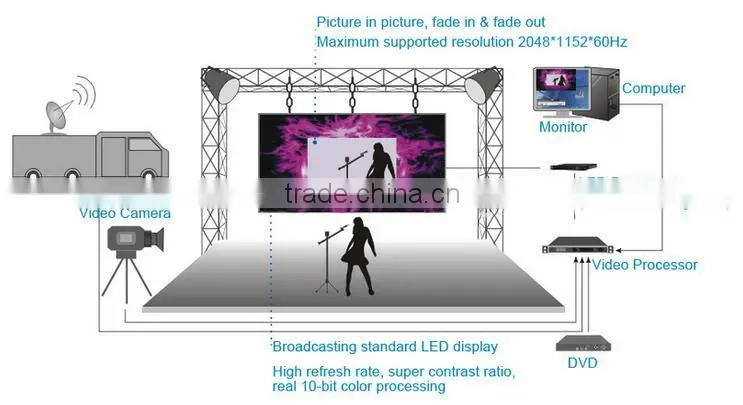

6.Connection Diagram

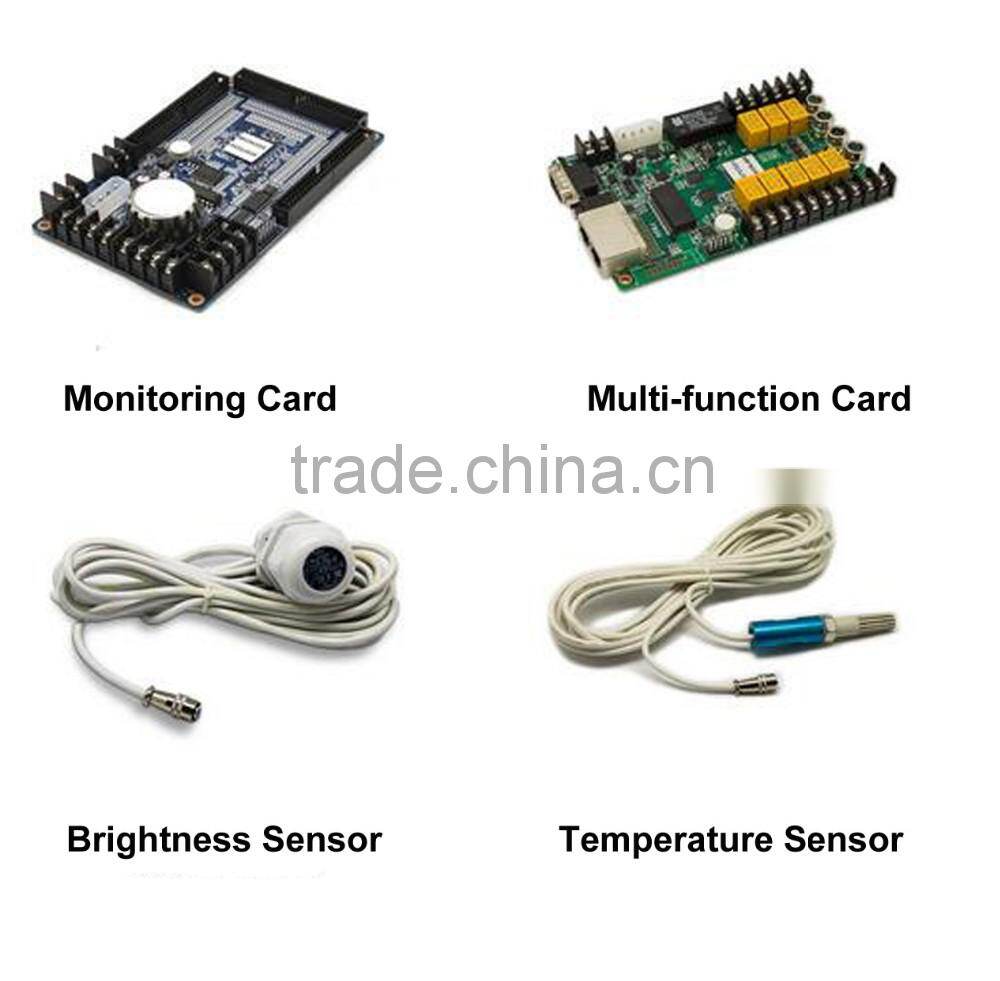

7.Extension Function-associated devices
8.Packing&Shipping
NOVASTAR HUB75 MRV300 NOVA LED receiving card
-Carton boxes
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
9.After-sale Service
-1 year warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
Company Profile
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America^, with projects across several provinces in Mainland.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting.
Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends' trust around the world!
