W1 universal remote control HUB75 full color module WIFI rgb led controller
- 1000 Piece / Pieces per Month
- SHENZHEN/HK
- T/T L/C D/P D/A Credit Card
- LAN synchronous control system Nova MSD300 led sending card
- Nova MSD300 USB LAN led video wall controller
- NOVASTAR HUB75 MRV300 NOVA LED receiving card
- VDWALL LVP605 HDMI video wall led video processor
- VDWALL LVP515 HDMI led display video processor
- SIM900A 3G SIM card wireless EX-60 SMS GSM LED controller
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LIYI | Model Number: | W1 W2 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Other, aniamtion/graphics/video/time/date/humidity/temperature |
Pixels: | Other, P2.5/P3/P4/P5/P6/P7.62/P8/P10/P16/P20/P20/P25/P31.25 | Screen Dimension: | Customized Size |
Packaging Details
universal remote control HUB75 full color module WIFI rgb led controller:
strengthen plywood box/flight cases
Product Description
Professional led display manufacturer, over 13 years
Best wifi control solutions
Skype:liyisales03
universal remote control HUB75 full color module WIFI rgb led controller
1.Function Introduction
W series controller had inner integration WIFI module. User can control the controller, manage and update program via cell-phone, Ipad and computer only when connected the WIFI hotspot. The BS architecture to operate via browser without connects server, internet and download any software to realize the function to install and play. It owns the features of bellowing:
1. Install and Play. That’s said user can play as connecting the hotspot.
2. Cross-platform. The only BS architecture to operate via browser.
3. No need server, connecting internet or to download and install any software
4. All the operating interfaces are same as LedCloud, familiar and easy using
5. Supporting kinds of communication types like internet access, U-disk and WIFI
6. Gray level is 65536
7. Automatically brightness adjustment, real-time display temp and humidity
8. Supporting remote control and management via Widows, Android and IOS system
2.Interface Specification
List 3.1 The Interface Illustration of W Series Controller
Interface | NO. | Illustration |
5 v power supply | 1 | An external 5 v dc power supply |
G-NET interface | 1 | use to connect receiving card |
NET interface | 1 | use to connect user’s PC |
USB interface | 2 | use to connect U-disk, USB sound card, etc |
50PIN LED interface | 2 | for user to connect LED interface board |
Antenna interface | 1 | Use to connect a WIFI external antenna |
GPS interface | 1 | Use to connect GPS module |

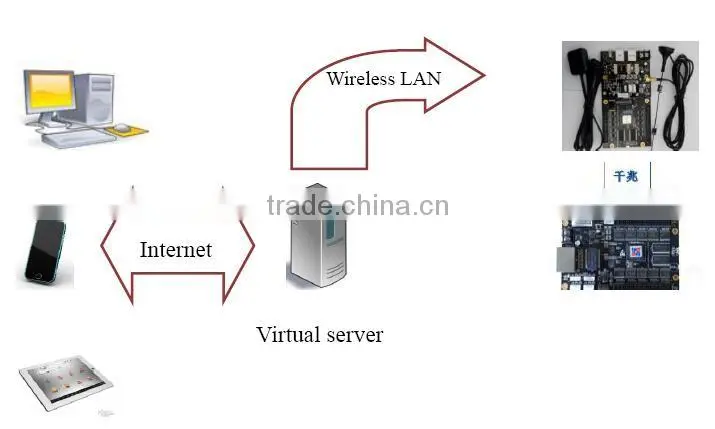

3.Connection Diagram
4.Specification and Parameter
5.Electric Parameter
Working voltage | 4.5V~5.8V |
WorkingCurrent: (in the case of 5V) | |
Board+ HUB 75+ LED Screen (Full HUB) | 720mA |
Board+ HUB 75+ G-NET+ LED Screen (Full HUB) | 810mA |
Working Temperature | -15℃ ~ +60℃ |
Limiting Temperature | -20℃ ~ +68℃ |

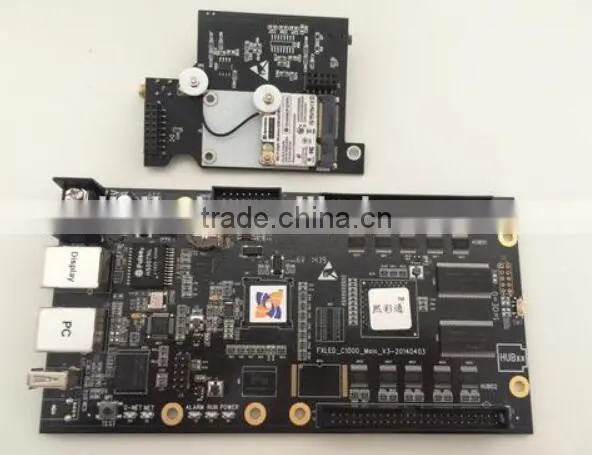

6.Product image
Note: The WIFI module had stalled in the board.
7.Packing&Shipping
universal remote control HUB75 full color module WIFI rgb led controller
-Carton boxes
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
8.Our Service
1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
universal remote control HUB75 full color module WIFI rgb led controller
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
9.After-sale Service
-1 year warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
