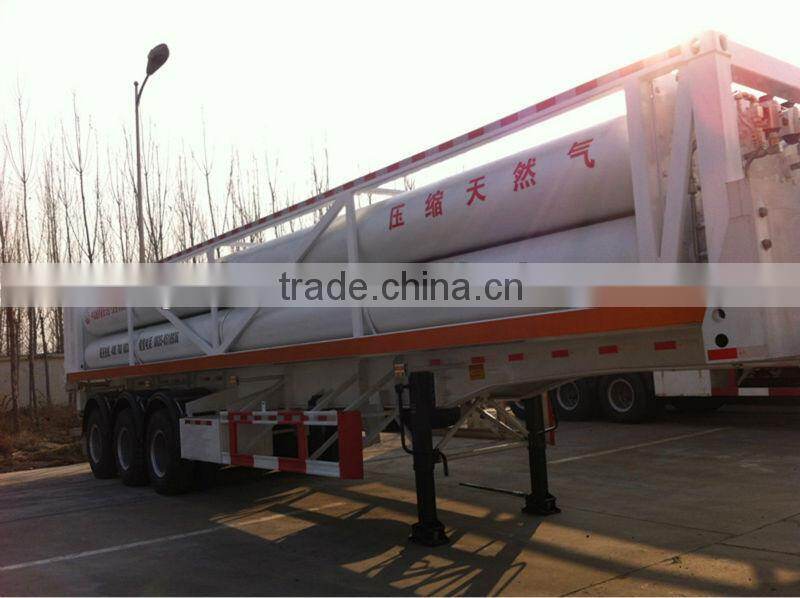

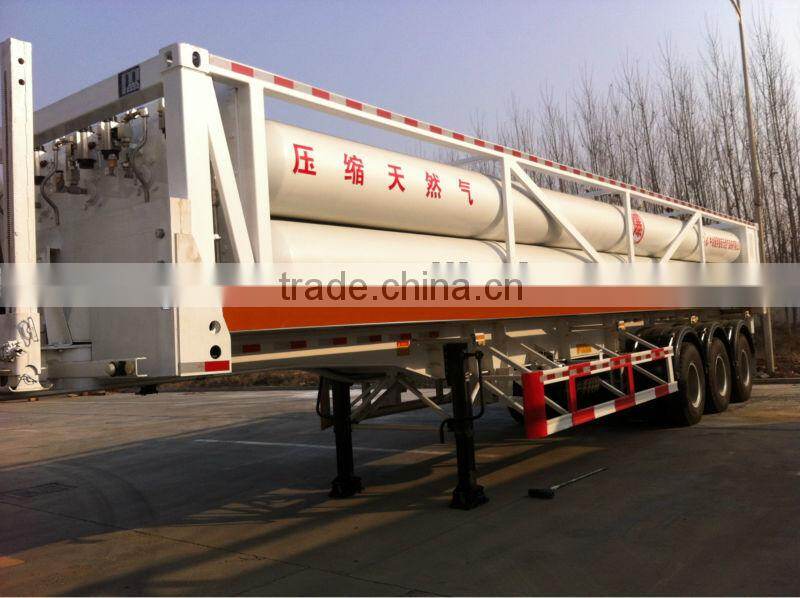

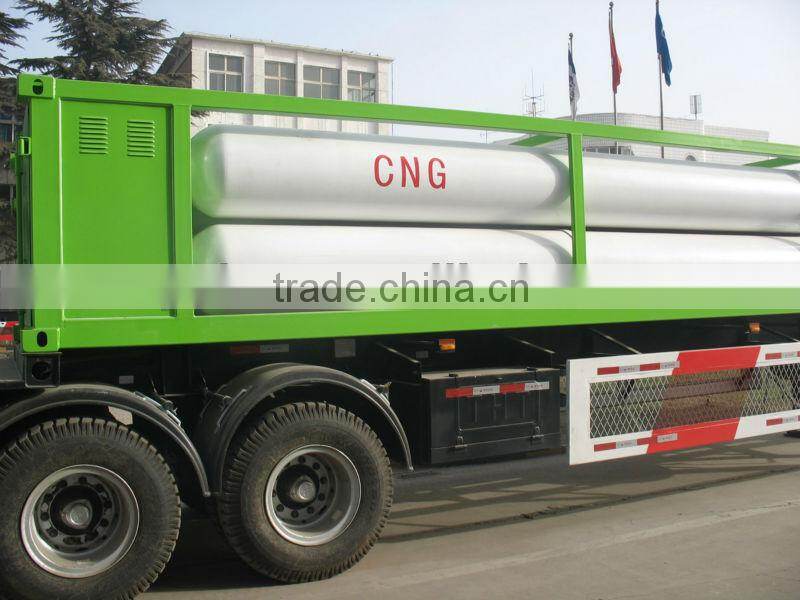

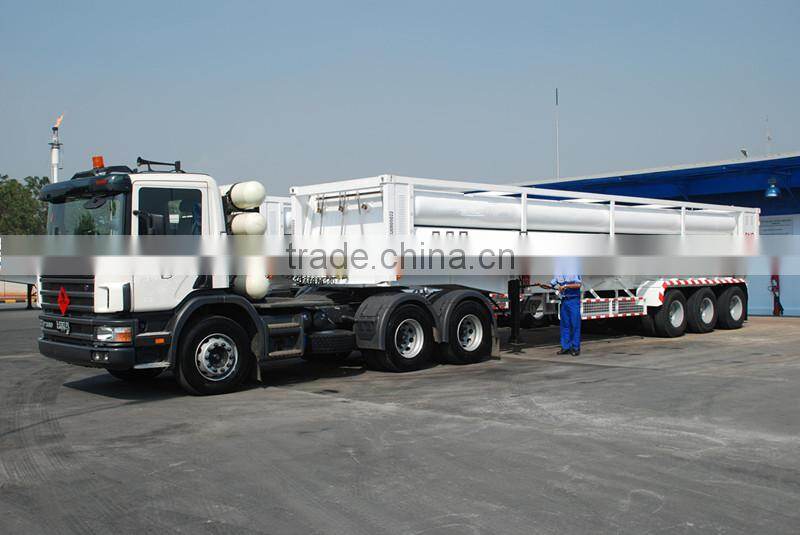

8 tubes skid CNG fuel semi trailer
Tube quantity: 8 PCS
Working pressure: 25Mpa
CNG filling capacity: 16.16NM3
Container Dimension: 12192x2438x1400mm
Chassis & Tractor: Optional Triple axis chassis, natural gas (CNG, LNG) powered tractor.
Application of CNG fuel semi trailer

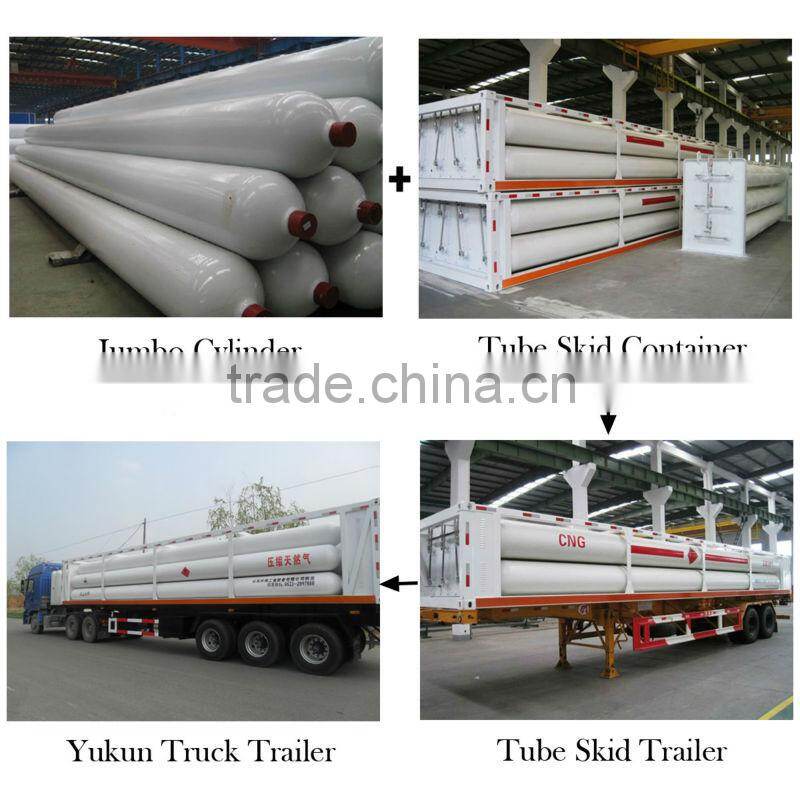

² The whole structure of semi trailer is divided into walking structure, large volume seamless steel cylinder and connecting device three parts. Walking structure meets the GB1589-2004 standard of loading mass and the axle load, and can be modified according to the special structure of the loading cylinder. 8 tubes skid CNG semi truck trailer not only can transport CNG, but also are an essential part of CNG filling station, other parts are hydraulic booster skid, CNG dispenser, PLC control panel, etc.
Specific Parameter
| CNG Tube Skid Container Data Sheet (8 tubes) | |||||

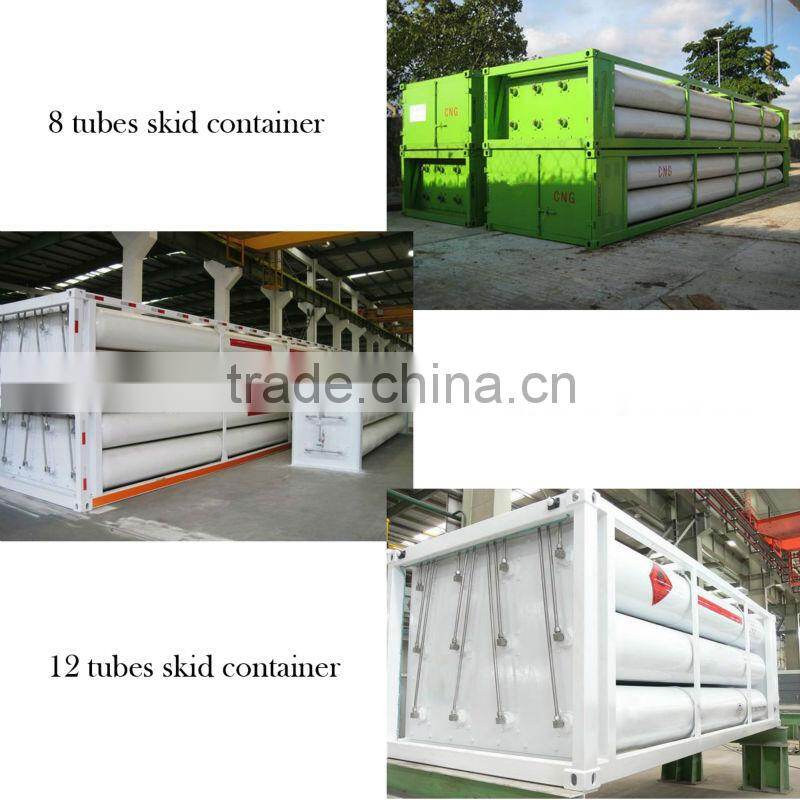

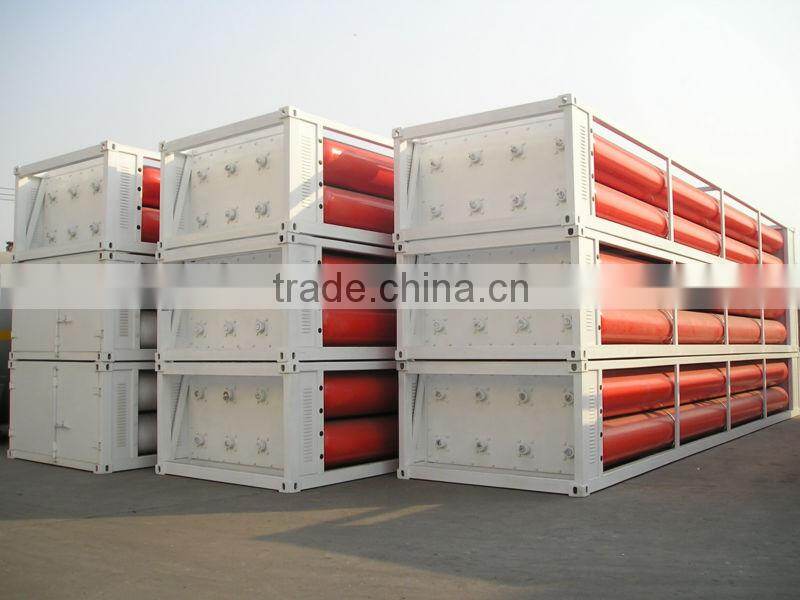

| Tube Skid Container |
Net Weight (without chassis) | 23310Kg | Jumbo Tube | Tube Qty | 8PCS |
| CNG Loading Weight | 3672Kg | Total Water Volume | 16.16NM3 | ||
| Total Weight (without chassis) | 26982Kg | Hydratastic Test Pressure | 375bar | ||

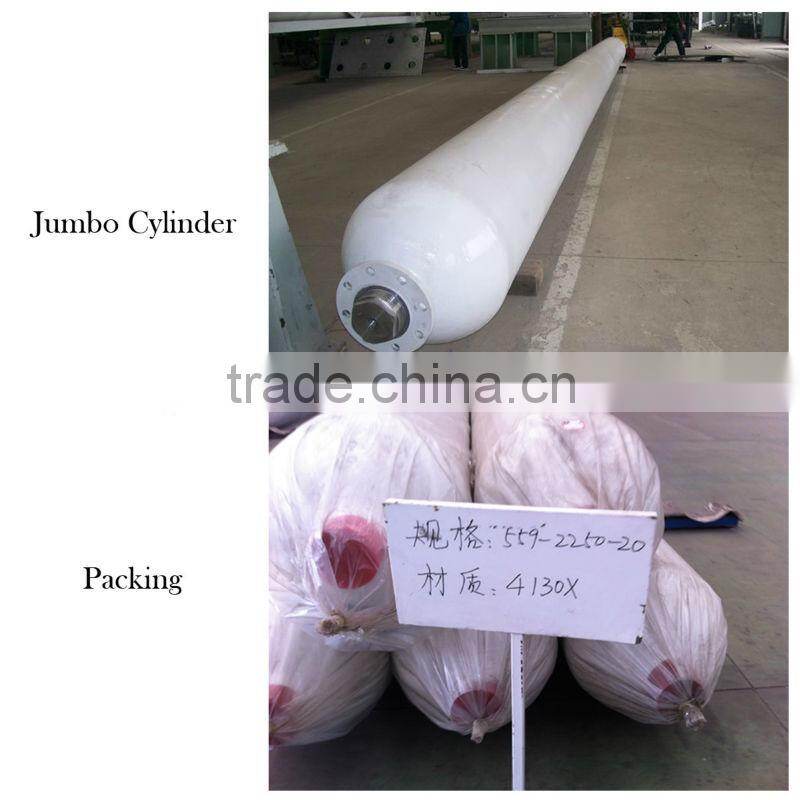

| CNG Loading Volume | 5100NM3 | (ODxWTKxL) | φ559x17.4x9920mm | ||
| Working Pressure | 250bar | Remark | Chassis | Two axis | |
| Leakage Test Pressure | 250bar | Working Temp | -40~60°C | ||
| Container Diemension | 12192x2438x1400mm | Approval | BV, ISO, CE | ||
| Bursting discs | Burst Pressure | 375bar | Release-hole Diameter | ≥φ20 | |
The above specification is one of our regular one, special specification tailored for Customers’ are available.
Product Details
Related Products
Company Information
Yukun Machinery Co., Ltd has many years experiences in producing cng gas cylinder, cng tubes container, lng tanker, cng-1 cylinder, cng-2 cylinder, jumbo cylinder, winding cylinder, cryogenic gas transport equipment, cng tube trailer etc. with the most certificates, including ISO, DOT, CE, KGS, ASME etc, and our products have export to more than twenty countries, such as USA, Colombia, Peru, Brazil, Thailand, Indonesia, Nigeria, Egypt, etc, the up to world class quality and good service won the great reputation among the customers.
