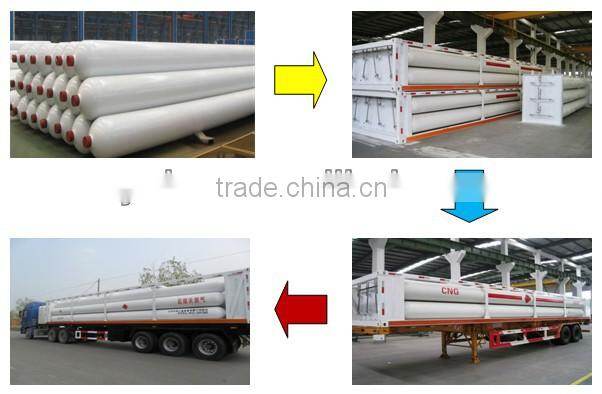

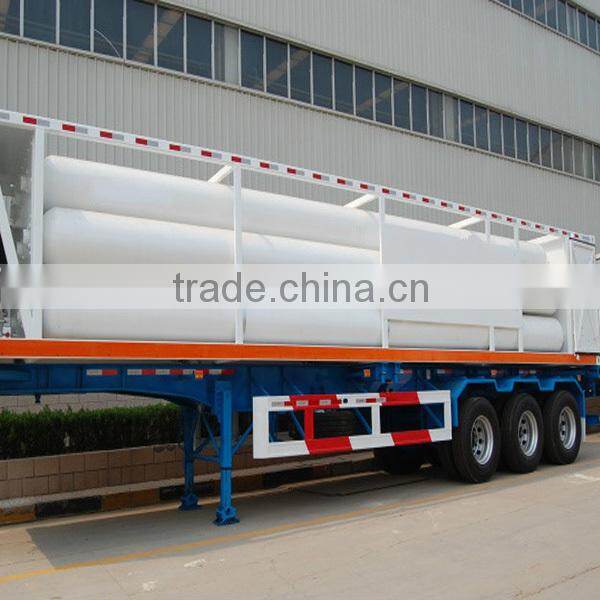

10 tubes skid CNG tube trailer
Tube Qty.: 10 PCS
Working pressure: 25Mpa
Total water volume: 25.4NM3
Chassis: Three axis
Container Dimension: 12192x2438x2000mm
Application of CNG tube trailer
² 10 tubes skid CNG trailers not only can transport CNG, but also are an essential part of CNG filling station, other parts are hydraulic booster skid, CNG dispenser, PLC control panel, etc.
Specific Parameter
| CNG Tube Skid Container Data Sheet (10 tubes) | |||||
| Tube Skid Container |
Net Weight (without chassis) |
29800Kg | Jumbo Tube | Tube Qty | 10PCS |
| CNG Loading Weight | 4752Kg | Total Water Volume | 21.6NM3 | ||
| Total Weight (without chassis) |
34552Kg | Hydratastic Test Pressure | 375bar | ||
| CNG Loading Volume | 6800NM3 | (ODxWTKxL) | φ559x17.4x10450mm | ||
| Working Pressure | 250bar | Remark | Chassis | Three axis | |
| Container Diemension |
12192x2438x1400mm | Approval | BV, ISO, CE | ||
| Bursting discs | Burst Pressure | 375bar | Release-hole Diameter | ≥φ20 | |
The above specification is one of our regular one, special specification tailored for Customers’ are available.
Company Information
Yukun Machinery Co., Ltd has many years experiences in producing cng gas cylinder, cng tubes container, lng tanker, cng-1 cylinder, cng-2 cylinder, jumbo cylinder, winding cylinder, cryogenic gas transport equipment, cng tube trailer etc. with the most certificates, including ISO, DOT, CE, KGS, ASME etc, and our products have export to more than twenty countries, such as USA, Colombia, Peru, Brazil, Thailand, Indonesia, Nigeria, Egypt, etc, the up to world class quality and good service won the great reputation among the customers.
Sketch Structure
