Hot selling CNG tube trailer for transportation
- 10 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, ISO, BV | Size | 12192*2438*1400mm | |
| Max Payload | 29150kg | Place of Origin | Henan, China | |
| Brand Name | Yukun | Model Number | THT9352TJZ |
Product Description

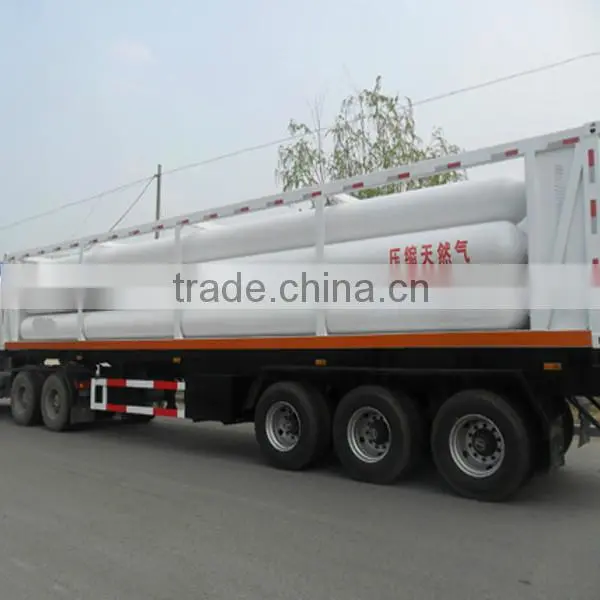

CNG tube trailer for transportation
The whole structure of semi trailer is divided into walking structure, large volume seamless steel cylinder and connecting device three parts. Walking structure meets the GB1589-2004 standard of loading mass and the axle load, and can be modified according to the special structure of the loading cylinder.
Application of CNG tube trailer
1. For CNG transportation from Mother station to daughter station;
2. For CNG transportation to places where CNG gas pipeline hasn’t been built;
3. For CNG transportation to places where gas distribution system can’t reach;
4. For CNG storage at gas stations.
Technical Parameter of CNG tube trailer
| Item | Data | Item | Data | ||
| Whole container | Whole Equipment Weight | 26550kg | Gas cylinders | Working Pressure | 20 MPa |
| Filling Weight | 2600kg | Working Temperature | -40°C~60°C | ||
| Total Weight | 29150kg | Main Body Material | 4130 X | ||
| Working Pressure | 20MPa | Water Volume | 2.25 m3 | ||
| Working Temperature | -40°C~60°C | Cylinder Qty | 8 | ||
| Filled Medium | CNG | Total Volume of Gas Cylinders | 18m3 | ||
| Airtight Test Pressure | 20 MPa | Hydraulic Test Pressure | 33.4 MPa | ||
| Filling Gas Qty | 4540Nm3 | Outline Sizes (outsidediameter×wall thickness×length) | Φ 559×16.8×10950mm | ||
| Outline Sizes (length×width×height) | 12192×2438× 1400mm | ||||
| Burst disk | Burst Pressure | 33.4 MPa | Type | ≥Φ20 | |
| Whole Trailer | Total Weight | 4510kg | Wheelbase | 8450+1300 | |
| Max laden capacity | 34990kg | Whole Trailer Outline sizes (length×width×height) | 12391*2480*2965 | ||
| Trailer Type | THT9352TJZ | Tyre | 11.00R20 | ||
The above specification is one of our regular one, special specification tailored for Customers’ are available.
