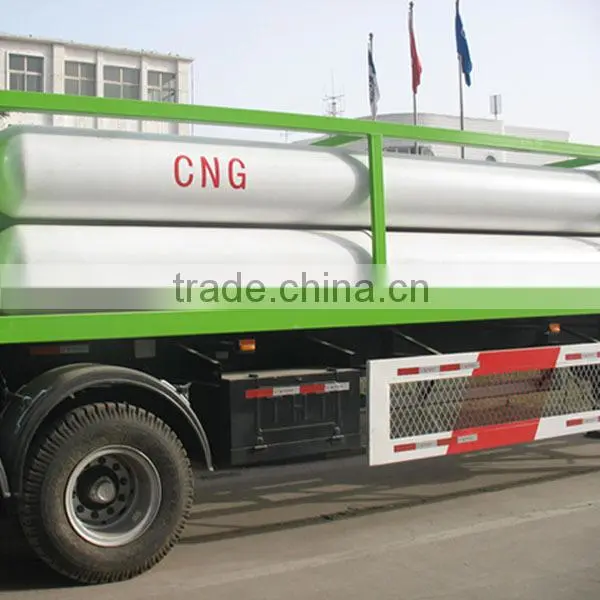

4 tubes skid CNG semi trailer for sale
Tube quantity: 4 PCS
Working pressure: 25Mpa
CNG filling capacity: 26.92NM3
Container Dimension: 12192x2438x2098mm
Chassis & Tractor: Optional Triple axis chassis, natural gas (CNG, LNG) powered tractor.
Application of CNG semi trailer
² 4 tubes skid CNG semi-trailer not only can transport CNG, but also are an essential part of CNG filling station, other parts are hydraulic booster skid, CNG dispenser, PLC control panel, etc.
Specific Parameter
| Specification of CNG tube skid container (4 tubes in 40 feet container) | |||
| Item | Parameters | Item | Parameters |
| Skid weight | 27208kg | CNG filling weight | 6106kg |
| Filling medium | CNG | CNG filling capacity | 26.92Nm³ |
| Working pressure | 250bar | Full-loading weight | 33314kg |
| Working temp | -40 °C ~ 60 °C | Total water capacity | 8481Nm³ |
| Container size (LxWxH) | 12192x2438x2098mm | Fitting & Tubing material | 304 SS |
| Chassis & Tractor: Optional Triple axis chassis, natural gas (CNG, LNG) powered tractor. | |||
The above specification is one of our regular one, special specification tailored for Customers’ are available.
Company Information
Yukun Machinery Co., Ltd has many years experiences in producing cng gas cylinder, cng tubes container, lng tanker, cng-1 cylinder, cng-2 cylinder, jumbo cylinder, winding cylinder, cryogenic gas transport equipment, cng tube trailer etc. with the most certificates, including ISO, DOT, CE, KGS, ASME etc, and our products have export to more than twenty countries, such as USA, Colombia, Peru, Brazil, Thailand, Indonesia, Nigeria, Egypt, etc, the up to world class quality and good service won the great reputation among the customers.

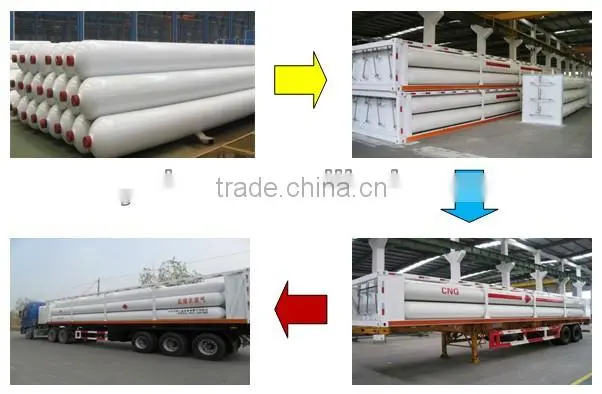

Sketch Structure
