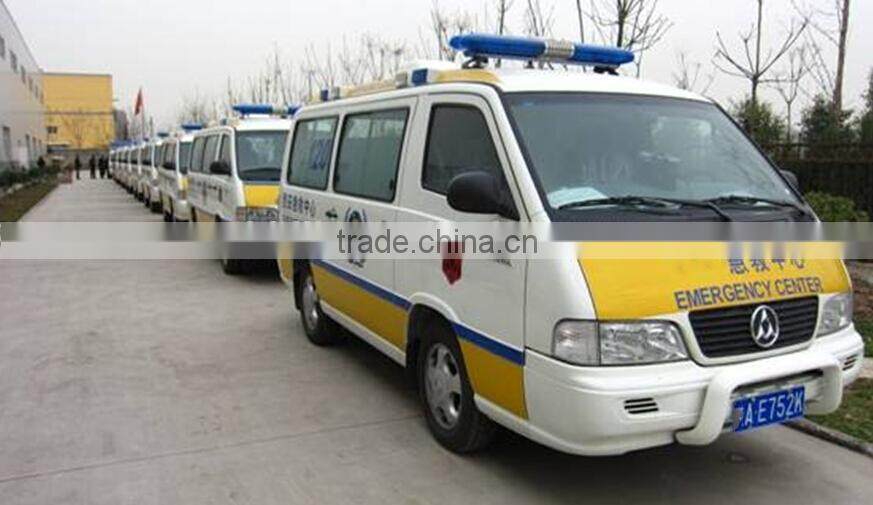

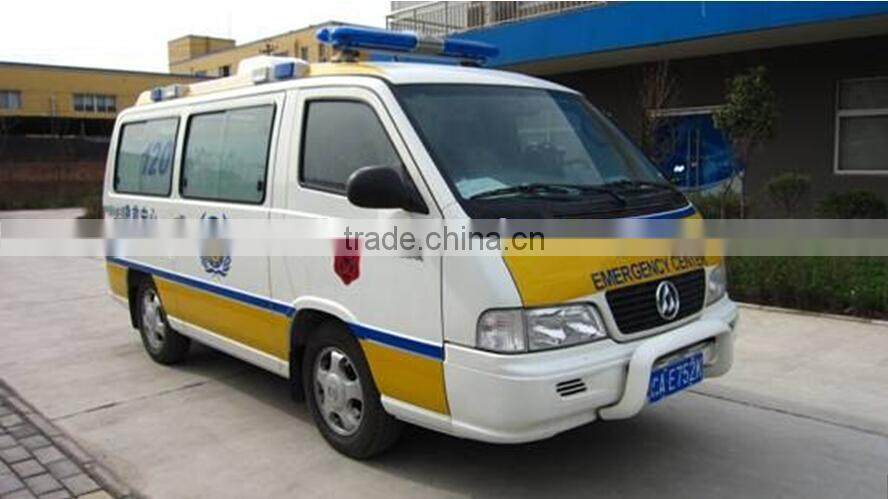

SH5032XJHG4 ISTANA Ambulance (Petrol, low roof)

A

Technical specs of vehicle

Wheelbase (mm):2455

Turning diameter(m):11

Overall dimensions (mm):4990×1855×2340

Dimension of patient's compartment (mm):2820×1650×1420

Complete vehicle curb mass:(kg):2240

GVW (kg):2850

Number of seats: 4-7 seats

Engine: M161G23D

Fuel type:  Petrol

Fuel consumption (L):<9.5/100km

Engine type:electronic fuel injection

Displacement (ml.):2295

Emission standard:Euro IV

Maximum power (KW):95.6

Minimum torque:190N.m

Gearbox:5 speed, manual

Front overhang:independent suspension

Rear overhang:adjustable rigidity single-leaf spring

Max. speed (Km/h):>150

Steering system:steering wheel

Tire: 195/75R16

Fuel tank capacity(L):75

B

Standard configuration of vehicle

1

Electric side mirror

2

Power windows

3

Vehicle-mounted radio cassettes

4

Central control door lock

5

Hand-free Intercom system between driver's cab and patient's compartment

6

2 seats in driver's cab

7

Upward open rear door

C

Air conditioner and lighting system

1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in patient's compartment

1

3

Ventilation fan mounted on the roof of patient's compartment

1

4

2 illumination lights on left and right side of vehicle outside

4

5

1 illumination light rear side of vehicle outside

1

6

illumination light in patient's compartment

4

7

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system

1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in patient's compartment

2

4

220V outlets in patient's compartment

2

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC supply system

1

7

Intelligent inverted power supply system(12V -220V)

1

8

Central control system

1

E

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

Adjustable volume alarm apparatus

1

3

100W loud speaker

1

4

Flashing alarm light bar mounted on the front roof of vehicle

1

5

blue flashing alarm lamps mounted two sides of vehicle roof

4

6

White illumination lights mounted to two sides of vehicle roof

4

F

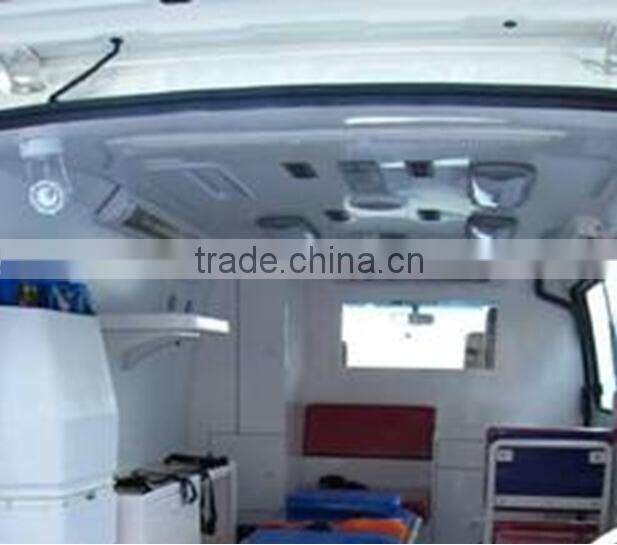

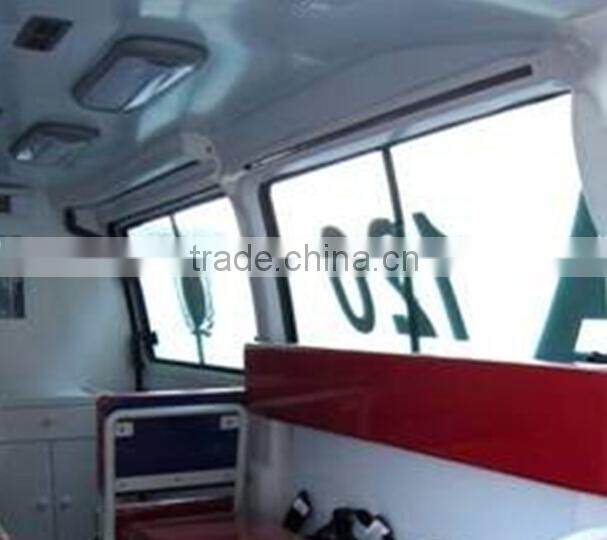

patient's compartment

1

Compartment wall between driver's cab and patient's compartment, a glass window in wall to make observation

2

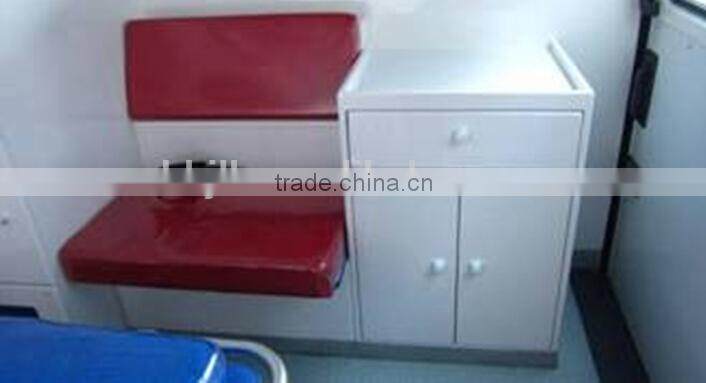

A foldable doctor seat (with safe belt) mounted to floor near to compartment wall

1

3

Long bench bed one piece (suitable for 3 people), mounted in right side of patient's compartment

1

4

Oxygen bottle (10L×2) ,mounted in left side of vehicle

5

Oxygen flow controller

2

6

Wall and door in patient's compartment, made of aluminous-plastic composite material

7

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

8

Raised edge of patient's compartment, dust-proof, anti-skidding, washable

9

Concealed type infusion support mounted to the interior roof of patient's compartment

1

10

Ventilation fan mounted in the interior roof of patient's compartment

1

11

Box type Illuminating lights mounted to the interior roof of patient's compartment

3

12

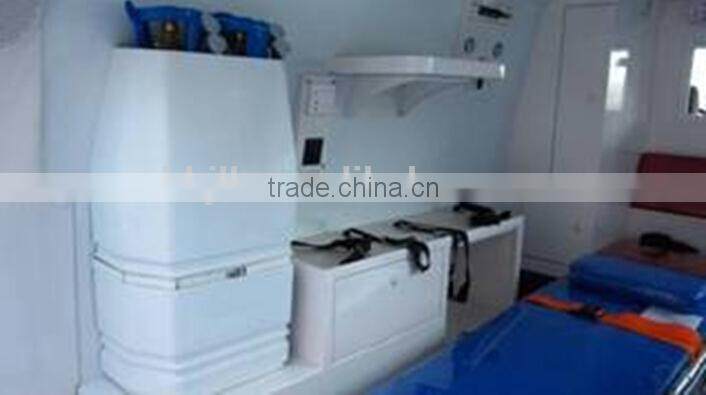

Storage cabinets which are used to store field first-aid kit mounted in the patient compartment.

13

Multi-functional cabinet, used for storage of medicine, first-aid case, also to be as a work bench

1

14

Vertical push-pull cabinet (3 layers) mounted in left front side of patient compartment.

1

15

Medical equipment support mounted above the medical equipment cabinet

1

16

Medical equipment cabinet mounted to the left side of Medical equipment cabinet

1

17

Strong blue or red reflective strip in waist of body

18

Mobile Self-lifting stretcher mounted in Patient's compartment

1

19

Adjustable shovel Stretcher mounted in Patient's compartment

1

20

220V outside power supply
