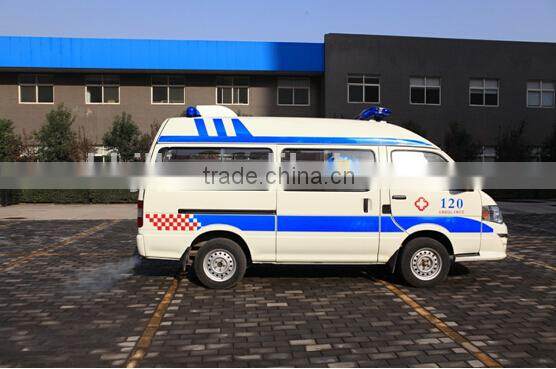

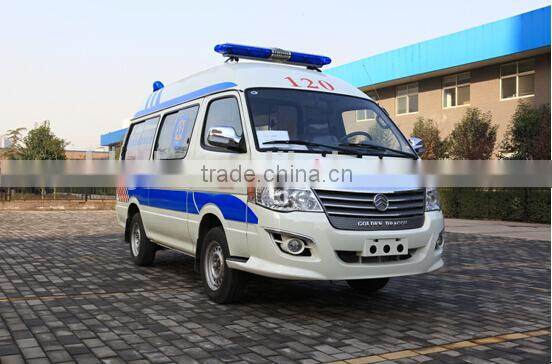

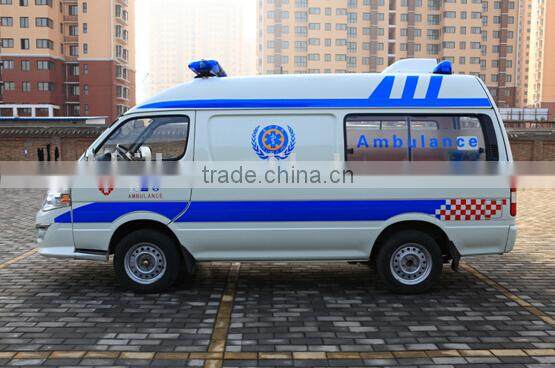

Golden Dragon XML5035XJH28 Ambulance Clx

A

Technical specs of vehicle

Wheelbase (mm):2590

Turning diameter(m):11

Overall dimensions (mm):4950×1700×2420

Dimension of patient's compartment (mm):2900×1540×1600

Complete vehicle curb mass:(kg):1755

GVW (kg):2800

Engine Model:GW2.8TC-2

Fuel type:  Diesel

Fuel consumption (L):11

Engine type:electronic fuel injection

Displacement (ml.): 2771

Emission standard:Euro IV

Max Power (kw/rpm): 70/3600

Max. torque (Nm/rpm): 225/2600

Gearbox:5 speed, manual

Front overhang/Rear overhang:1220/1140  1300/1140 (mm)

Front wheel tread/Rear wheel tread: 1450/1430

Brake: front disc / rear drum

Max. speed (Km/h):130

Steering system: gear, rack power-assisted steering

Fuel tank capacity(L):70

Tyre: 195/70R15CMeridian vacuum tyre

B

Standard configuration of vehicle

1

Electric side mirror

2

Power windows

3

Vehicle-mounted radio

4

Central control door lock

5

Hand-free Intercom system between driver's cab and patient's compartment

6

2 seats in driver's cab

7

Upward open rear door

C

Air conditioner and lighting system

1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in patient's compartment

1

3

Ventilation fan mounted on the roof of patient's compartment

1

4

Illumination lights in patient’s compartment

4

5

1 illumination spotlight in interior rear side of vehicle

1

6

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system

1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in patient's compartment

2

4

220V outlets in patient's compartment

2

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC power supply system

1

7

Intelligent inverted power supply system(12V -220V)

1

8

Central control system

1

E

Emergency Alarm System

1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

Adjustable volume alarm apparatus

1

3

100W loud speaker

1

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

1

F

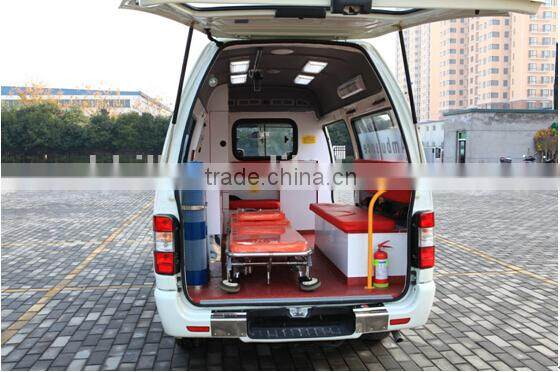

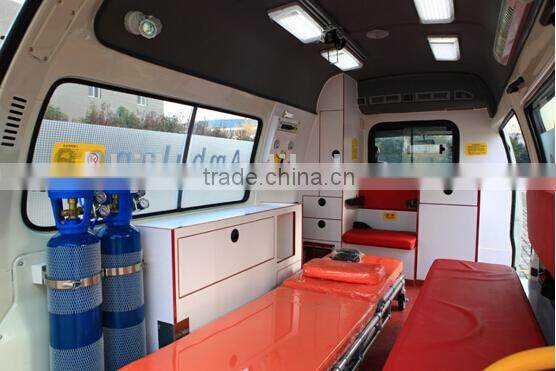

Patient's Compartment

1

Compartment wall one piece made of PVC with curved surface between driver's cab and patient's compartment, a glass window in wall to make observation

2

A foldable doctor seat mounted to floor near to compartment wall

1

3

Long bench one piece (suitable for 3 people) with safe belts, mounted in right side of patient's compartment

1

4

Oxygen bottles (10L) ,mounted in left side of vehicle

2

5

Oxygen flow controller

2

6

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

7

Covered perimeter of patient's compartment, dust-proof, anti-skidding, washable

8

Ventilation fan mounted in the interior roof of patient's compartment

1

9

Illuminating lights mounted to the interior roof of patient's compartment

4

10

Sliding transfusion hanging bracket mounted to the interior roof of patient's compartment

1

11

First-aid box cabinet installed in patient’s compartment

12

Multi-functional cabinet, used for storage of medicine and medical equipments, installed behind partition wall

1

13

Sliding medicine cabinet (with drawers), mounted to the left front side of patient's compartment

1

14

Strong blue or red reflective strip in waist of body

15

220V outside power

1

16

Auto loading stretcher and scoop stretcher

1
