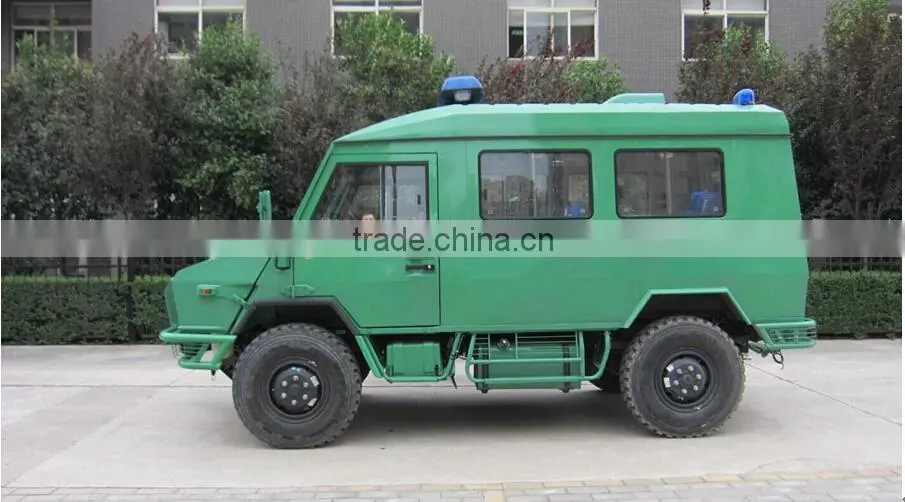

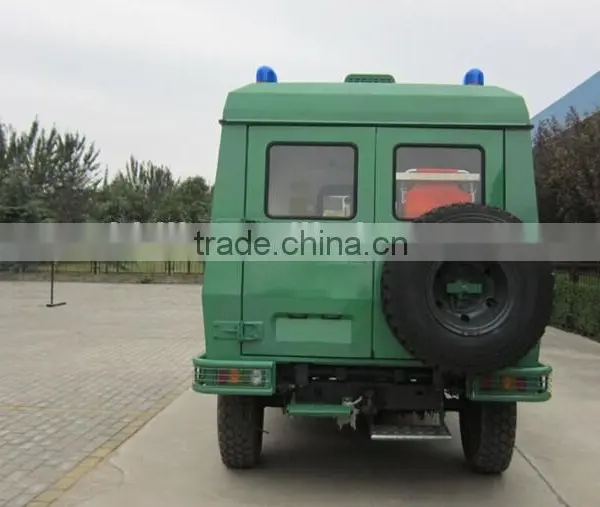

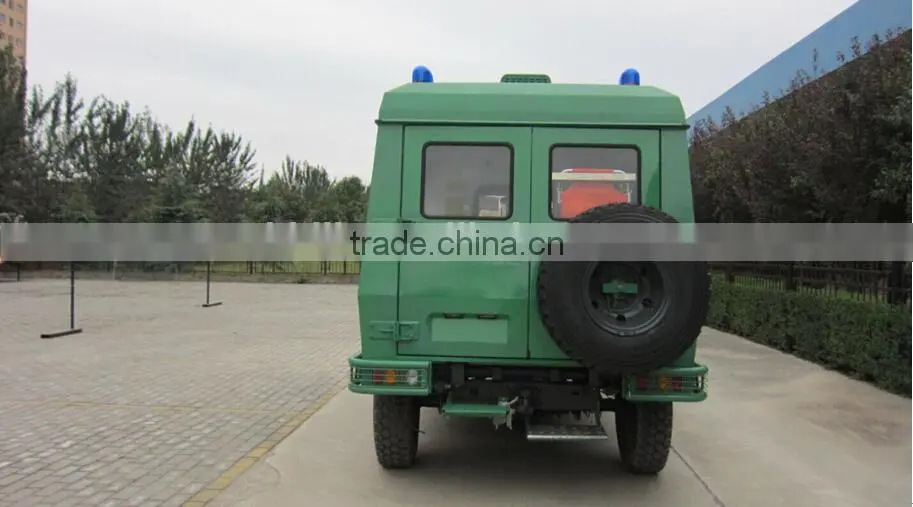

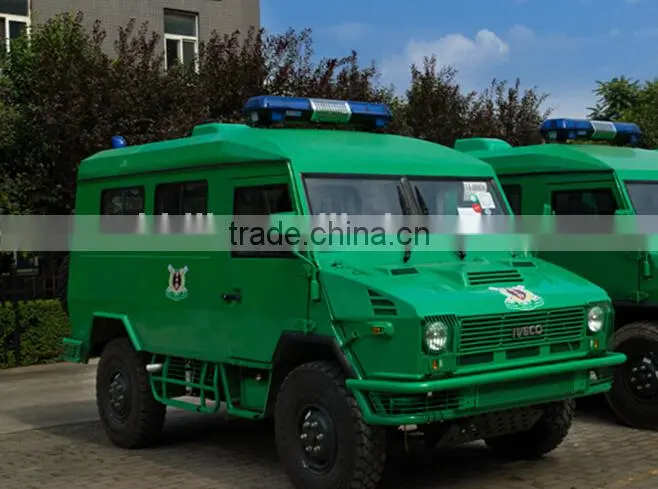

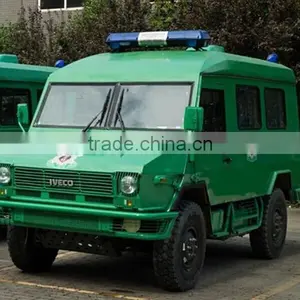

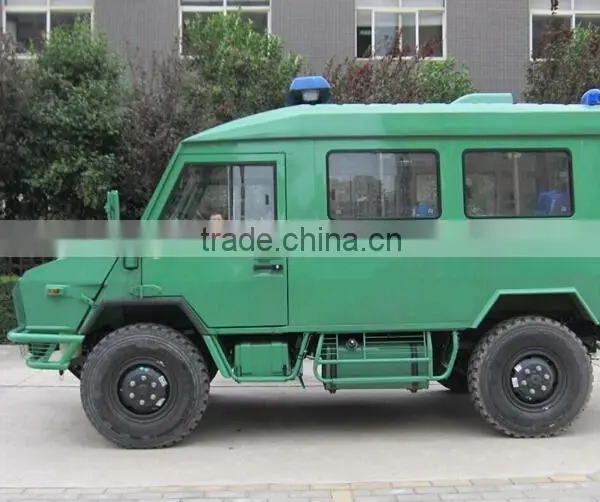

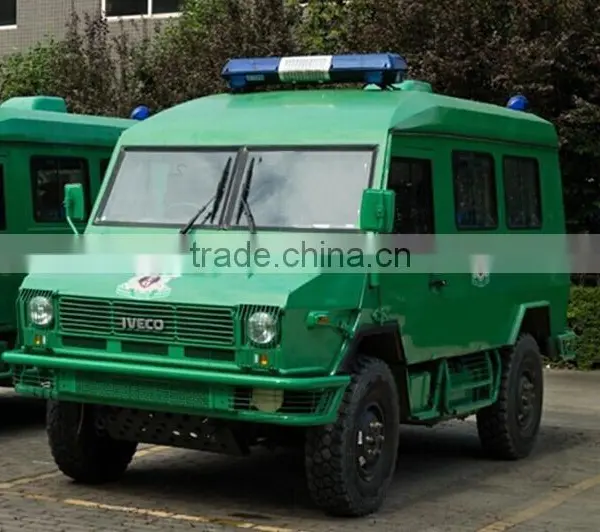

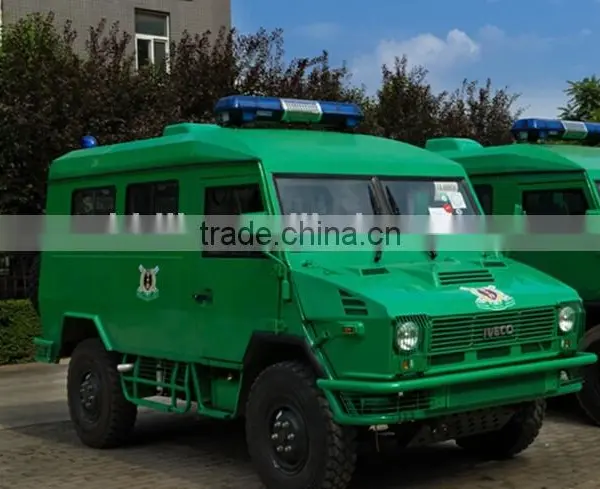

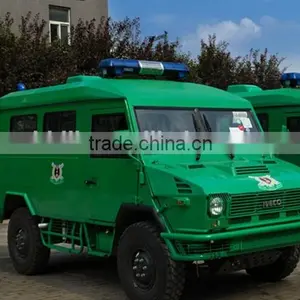

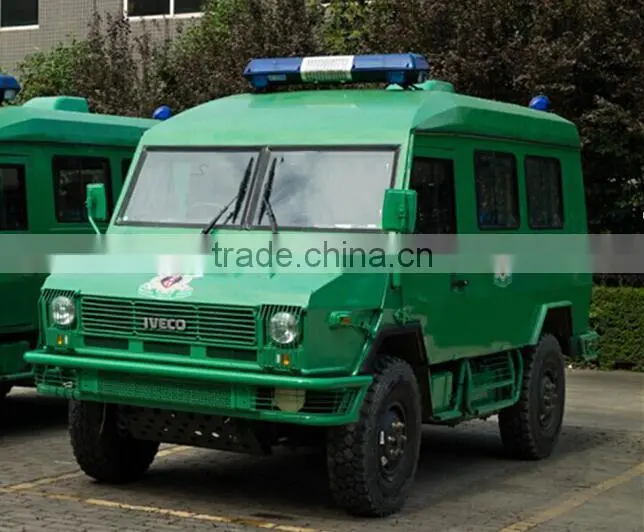

NJ2046SDD6 IVECO 4WD RHD military Ambulance

NJ2046SDD6 IVECO 4WD RHD military Ambulance

Standard Configurations

1)        NJ2046SDD6 IVECO 4WD vehicle: 1

2)        Independent A/C in cab room and patient compartment: 1set

3)        Blue alarm lamp and siren: 1set

4)        Transfusion support: 1set

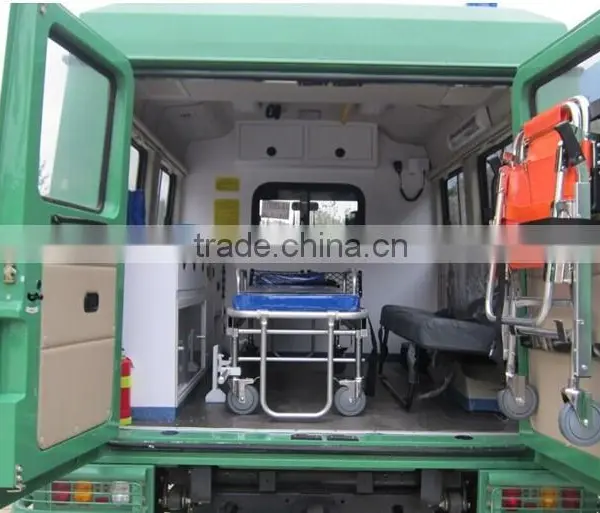

5)        Medicine and instrument cabinet in patient compartment: 1set

6)        Oxygen bottle: 10L, 2pcs

7)        Oxygen terminal: 1set

8)        Electric Ventilation fan system:1set

9)        Push-lift stretcher:1set

10)    Folding stretcher: 1set

11)    Bench bed:1set for 3 persons

12)    Partition wall with observation window:1 set

13)    Illumination light in patient room:1set

14)    Folding chair:1set

15)    Vice driver seat:1set

16)    Garbage bin: 1pc

17)    Inverted power supply: 1set

18)    Medical equipment cabinet:1set

19)    Non-contact interphone: 1 set

Technical Parameters of Chassis:

1)        Ambulance model: NJ2046SDD6, equipped with air conditioner and radio

2)        Chassis model: NJ2046SDY6

3)        Overall dimensions (mm): 5005×2030×2470 (Not including alarm light height)

4)        Patient's compartment dimensions (mm): 2220×1900×1490

5)        Complete vehicle curb mass: 3330kg

6)        GVW: 4450kg

7)        Wheelbase (mm): 2800

8)        Wheel tread (mm front/rear): 1670/1670

9)        Min. ground clearance (mm)(front/back): 260

10)    Min. turning radius (m): 6

11)    Approach/departure angel: 39/35 (°)

12)    Fording depth(mm): no more than 750

13)    Width of across trench(mm): no more than 650

14)    Trough Vertical the barrier height(mm): no more than 280

15)    Maximum travel slope(%): no more than 36

16)    Maximum grade ability(%):≥60

17)    Maximum speed(km/h):  105

18)    Fuel tank capacity (L): main fuel tank 76L (100L optional) +auxiliary fuel tank 20L

19)    Fuel: diesel

20)    Fuel system: turbocharging

21)    Fuel consumption (L/100km) (direct gear,50km/h uniform speed): ≤12.5

22)    Emission standard: Euro 3

23)    Tire: 255/100R16, off-road radial tire

24)    Brake system: front disc / rear drum

25)    Engine Model: SOFIM8142.43S

26)    Engine type: in-line, 4 cylinders, 4 strokes, water-cooled, overhear camshaft, direct Injection turbocharged inter-cooled common rail diesel engine

27)    Displacement (ml.): 2798

28)    Engine power (kw/rpm): 92kw/3600rpm

29)    Maximum torque(N.m/r/min): 285/1800

30)    Suspension (mm front/rear):1010 / 1145

31)    Gearbox: manual 5 speed, 5 forward gear, 1 reverse gear

Company special-purpose vehicle scope as following:

  Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.

1. Factory Supply:

A). the biggest and famous vehicle manufacturer in china,

B). more than 300 kinds of special truck for your selecting.

2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.

3. Good Quality:

A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,

B). ISO9001-2008 standard and the 3C (China Compulsory Certification),

C). China top brand with good reputation at home and abroad.

4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.

5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.

1. Price term: FOB Shanghai in China.CIF for destination port.

2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.

3. Delivery time: 10-35 working days after payment is received.

4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.
