A

Technical parameters

wheelbase (mm):3310

Turning diameter(m):12.1

Overall dimensions (mm):5990×2000×2720

Dimension of Patient's compartment (mm):3600×1750×1940

Complete vehicle curb mass:(kg):2740

GVW (kg):4280

Engine:SOFIM8140.43E4

Fuel type: diesel

Fuel consumption:9L

Working manner:in-line, 4 cylinders, water-cooled, direct Injection turbocharged inter-cooled diesel engine

Displacement (L):2.798

Emission standard:Euro IV

Maximum power (kw):100

Clutch: single plate, dry type, diaphragm spring, pull type clutch, mechanical inhaul cable

Transmission: mechanical type, forward gear with synchronizer

Front overhang/ Rear overhang: 1000/1680

Front wheel tread/ Rear wheel tread: 1695/1540

Brake system: four-wheel disc brake

Max. speed (Km/h):135

Steering system: power-assisted steering

Tire:6.50R16C

Fuel tank capacity(L):70

B

Standard configuration of vehicle

1

Manual side mirror

2

Power window

3

Double DIN radio (with CD)

4

Hand-free Intercom system between driver's cab and Patient's compartment

5

3 seats in driver's cab

6

Double open rear door

7

Foot pedal in rear door

C

Air conditioner and lighting system

1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in Patient's compartment

1

3

Ventilation fan mounted on the roof of Patient's compartment

1

4

2 illumination light s each side of vehicle outside

4

5

1 illumination light rear side of vehicle outside

1

6

Illumination light front side of vehicle outside

1

7

Illumination lights in Patient's compartment

6

8

Spotlight lights in the roof of Patient's compartment

2

9

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system

1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in Patient's compartment

3

4

220V outlets in Patient's compartment

3

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC power-supply system

1

7

Intelligent inverted power supply system(12V -220V)

1

8

Central control system

1

E

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

Control plate of siren and alarm lamp mounted in driver's cab

1

3

100W loud speaker

1

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

1

5

Blue Flashing alarm light mounted on four sides of roof of vehicle

8

F

Patient's compartment

1

Compartment wall mounted between driver's cab and Patient's compartment , a glass window in wall to make observation

2

One foldable doctor’s seat mounted to floor near to compartment wall

1

3

Long bench one piece, mounted in right side of patient's compartment

1

6

Oxygen bottle (10L×2) ,mounted in left side of vehicle

7

Oxygen reducing valve

1

8

Instruments cabinet mounted to the upper of wheel casing in the left side of patient's compartment

9

Wall, door, and vehicle roof adopts aluminum-plastic Composite materials

10

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

11

Raised edge of patient's compartment, dust-proof, anti-skidding, washable

12

Multi-functional interior roof in Patient's compartment , with handrail, concealed type transfusion hanging bracket, spotlight

13

Ventilation fan mounted in the interior roof of Patient's compartment

1

14

Illuminating lights mounted to the interior roof of patient's compartment

6

15

Multipurpose medicine cabinet mounted to the middle between driver’s cab and Patient's compartment

1

16

Cabinet for emergency goods mounted to patient's compartment

17

One vertical push-and-pull type cabinet (three layers) mounted to left front side of patient's compartment

18

Four sets of wall cabinet mounted to patient's compartment

19

Adjustable instruments support mounted to left front side of patient's compartment

1

20

Strong blue or red reflective strip in waist of body

21

Mobile Self-lifting stretcher mounted to patient's compartment

1

22

Adjustable shovel Stretcher mounted to the interior left side of rear door.

23

220V outside power supply mounted to left outside of vehicle body

1

G

Details of standard configuration

1

Front and rear independent air conditioning: Front and rear independent circulatory return air system, avoiding cross-infection

2

Marking of vehicle body:  adopts imported reflectorized material, Shining durable

Intelligent inverted power supply system:

500w or 1000W inverter, top brand automatic charger, supply stable 220V power supply. It can continuously work 5 hours.

Multi-functional control plate can control all electric equipment in patient's compartment

Hand free intercom system: clear tone quality, synchronous transmission

Oxygen system:10L×2, double reducing valve, one independent valve to humidifier, another valve to the terminal of respirator, with fixed support and easy dismounting device

Long bench:multi-functional bench with safe belt and rolling cushion. The under part can be as a storage box.

8

Middle cabinet:Top part is doctor work table; Left side has a push-and-pull cabinet (for medicine). There’s a concealed type cabinet behind Foldable doctor seat can be storage cabinet.

9

Instruments support in left side: a three-layer instrument support in left side, upper layer for breathing machine, middle layer for defibrillator, lower layer for aspirator; 12v and 220v power supply terminal respective 3pcs.

Foldable doctor seat

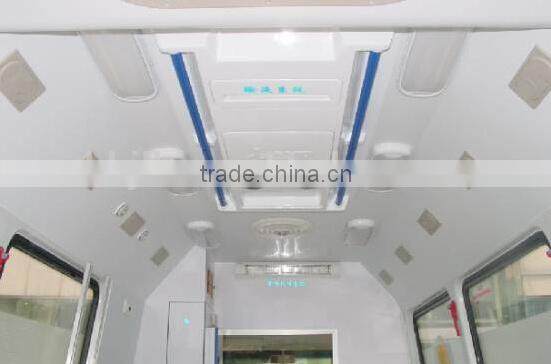

Ceiling:fluorescent lamp(20W×6)12V;2 spotlights( 20W)12V ,1 concealed type infusion support; 1 ventilation fan

12

Floor:anti-skidding and washable imported floor, Edge wrapping perimeter of Patient's compartment, Corrosion resistant, washable, germproof, flame resistant, fade resistant, compliant with environment protection

Automatic-loading stretcher in aluminum alloy material

14

Shovel Stretcher: Aluminum alloy shovel stretcher suitable for bone fracture patients

Partition wall with a glass window between driver's cab and patient's compartment
