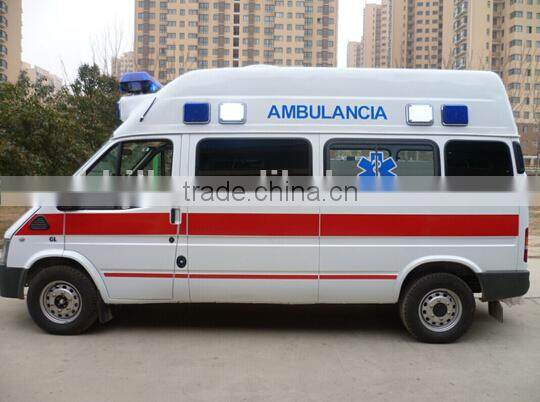

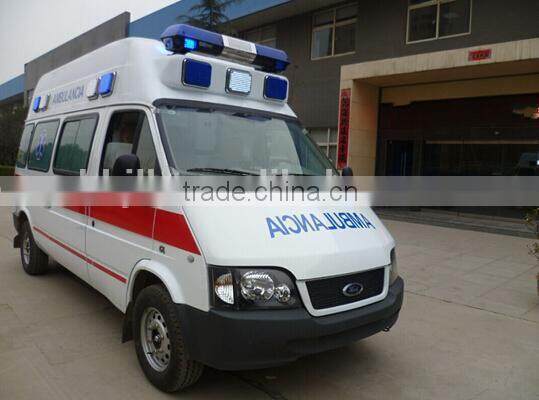

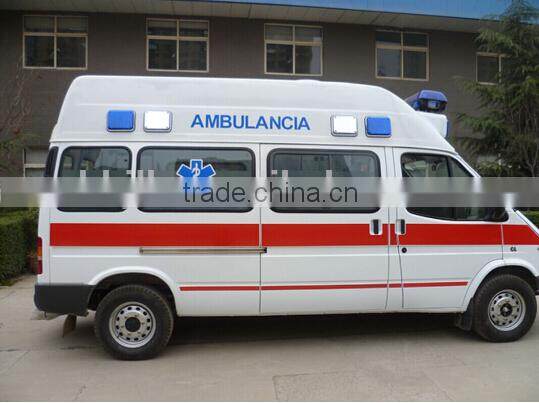

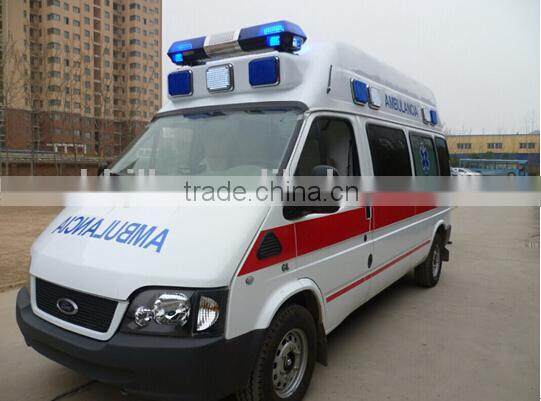

Ford Transit Ambulance XLG5030XJH4 Clx

A

Technical specs of vehicle

Quantity

Dimensions and masses

Wheelbase (mm):3570

Wheel tread (mm): 1692/ 1700  (front/rear)

Minimum ground clearance (mm):165

Turning diameter(m):13.8

Overall dimensions (mm): 5618×1974×2720

Dimension of Patient's compartment  (mm):3000×1700×1850

Complete vehicle curb mass:(kg):2440

GVW (kg):3300

Number of seats: 7 seats

Engine: 4G64S4N(petrol)

Fuel type:  Petrol

Fuel consumption:9L/100km

Working manner: in-line, 4 cylinders, 4 strokes, water-cooled

Single overhead camshaft, electronically controlled multi-point fuel injection gasoline engine

Displacement (ml.):2351

Emission standard:Euro IV

Maximum power:92kw

Gearbox:MT-75  5 speed, mechanical

Chassis :JX6547-H

Front overhang:independent suspension

Rear overhang:variable cross-section steel spring, hydraulic shock absorber

Brake: Front disc rear drum, power-assisted brake

Max. speed (Km/h):130

Steering system: gear, rack power-assisted steering

Tire:225/70R15C-8PR(tubeless type)

Fuel tank capacity(L):68

B

Standard configuration of vehicle

1

Manual side mirror

2

Power window

3

Vehicle-mounted radio

4

Central control door lock

5

Hand-free Intercom system between driver's cab and Patient's compartment

6

3 seats in driver's cab

7

Double open rear door

8

Foot pedal in rear door

C

Air conditioner and lighting system

1

Vehicle-mounted air conditioner in driver's cab

1

2

Vehicle-mounted air conditioner in Patient's compartment

1

3

Ventilation fan mounted on the roof of Patient's compartment

1

4

2 illumination lights each side of vehicle outside

4

5

1 illumination light rear side of vehicle outside

1

6

illumination light front side of vehicle outside

1

7

LED illumination light in Patient's compartment

6

8

spotlight lights inner roof of Patient's compartment

1

9

Ultraviolet radiation disinfector light

1

D

Central power supply distribution system

1

Automatic charging system

1

2

10m mobile cable

1

3

12V outlets in Patient's compartment

3

4

220V outlets in Patient's compartment

3

5

230V/16A waterproof outside outlet with protection cover

1

6

12V DC power-supply system

1

7

Intelligent inverted power supply system(12V -220V)

1

8

Central control system

1

E

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

1

2

Adjustable volume alarm apparatus

1

3

100W loud speaker

1

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

1

5

blue flashing alarm lamps four sides of vehicle outside roof

8

F

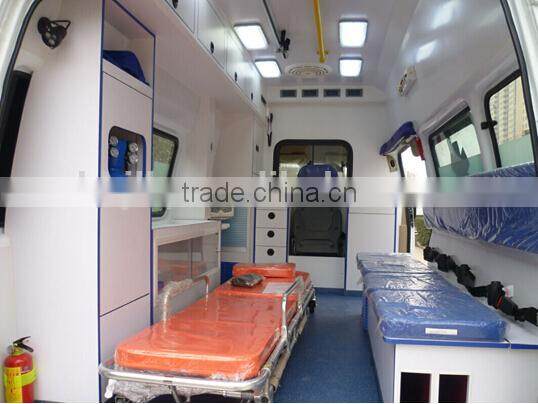

Patient's compartment

1. 1.

Composite material roof , mounted in driver's cab

1. 2.

Compartment wall with PVC panel between driver's cab and Patient's compartment , a glass window in wall to make observation(Options: push-pull window)

1. 3.

A foldable doctor seat(with safe belt) covered with red(or blue)leather, mounted to floor near to compartment wall

1

1. 4.

PVC cabinet bench (suitable for 3 people) with safe belts, the seat cushion and the back of a chair are covered with leather, mounted in right side of Patient's compartment

1

1. 5.

Wall, door and roof of Patient's compartment, adopting aluminous model board material

1. 6.

Oxygen bottle (10L×2) ,mounted in left side of vehicle

1. 7.

Oxygen flow and pressure controller

1

1. 8.

Medicine cabinet made of high polymer material, mounted in Patient's compartment

1. 9.

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

1. 10.

perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable

1. 11.

transfusion hanging bracket, spotlight mounted in the roof of Patient's compartment

1

1. 12.

Ventilation fan mounted in the interior roof of Patient's compartment

1

1. 13.

LED illumination lamps mounted in the roof of Patient's compartment

6

1. 14.

Strong blue or red reflective strip in waist of body

1. 15.

Emergency room have all-around yellow safety armrest(two safety armrest on the top, one behind the cabinet bench)

1. 16.

The medicine box installed the middle of medical equipment cabinet ,behind the partition, lower for draw-out type medicine box partition can be adjusted freely

1. 17.

One set of PVC Medical equipment cabinet, mounted in left side of Patient's compartment

1

1. 18.

Mobile Self-lifting stretcher

Mounted in Patient's compartment

1. 19.

Adjustable shovel Stretcher

Mounted to the interior left side of rear door.

1. 20.

220V outside power supply under rear foot pedal

G

Collision avoidance head restraint mounted in the door of Patient's compartment
