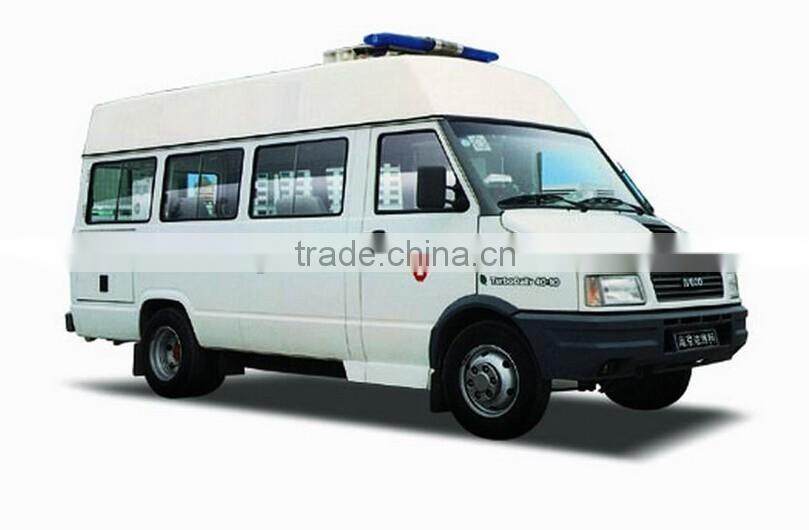

IVECO NJ5044XJHC 4X2 Medical Dental Clinic

A

Technical parameters of Chassis

wheelbase (mm):3310

Turning diameter(m):12.1

Overall dimensions (mm):5990×2000×2970

Dimension of Patient's compartment (mm):3600×1750×1940

Complete vehicle curb mass:(kg):2740

GVW (kg):4280

Engine:SOFIM8140.43E4

Fuel type: diesel

Fuel consumption:9L

Working manner:in-line, 4 cylinders, water-cooled, direct Injection turbocharged inter-cooled diesel engine

Displacement (L):2.798

Emission standard:Euro 4

Maximum power (kw):100

Clutch: single plate, dry type, diaphragm spring, pull type clutch, mechanical inhaul cable

Transmission: mechanical type, forward gear with synchronizer

Front overhang/ Rear overhang: 1000/1680

Front wheel tread/ Rear wheel tread: 1695/1540

Brake system: four-wheel disc brake

Max. speed (Km/h):135

Steering system: power-assisted steering

Tire:6.50R16C

Fuel tank capacity(L):70

B

Standard configuration of chassis

1

Manual side mirror

2

Power window

3

Double DIN radio (with CD)

4

Hand-free Intercom system between driver's cab and Patient's compartment

5

3 seats in driver's cab

6

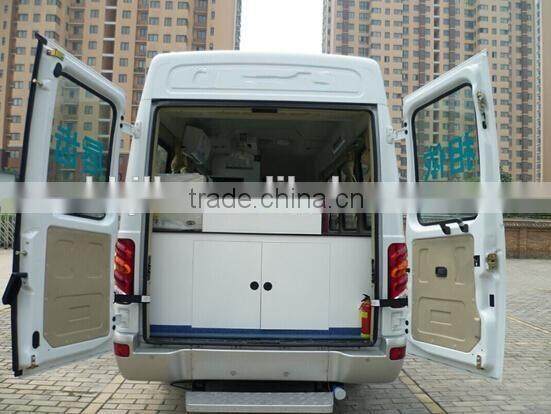

Double open rear door

7

Foot pedal in rear door

C

Standard configuration of Dental vehicle

Dental vehicle includes driver area and dental medical area. Compartment curtain is installed between driver's cab and dental medical area.

To ensure that modified vehicle is dust-proof, waterproof and sealed.

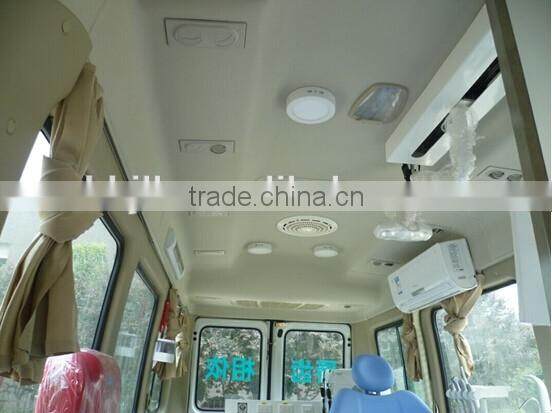

Outside air conditioner room, built-in heat insulation cotton to insulate noise and heat.

Windows can keep out sun.

Abrasion resistant, acid and alkali resistant, anti-skid, and anti-static, high-class quartz floor.

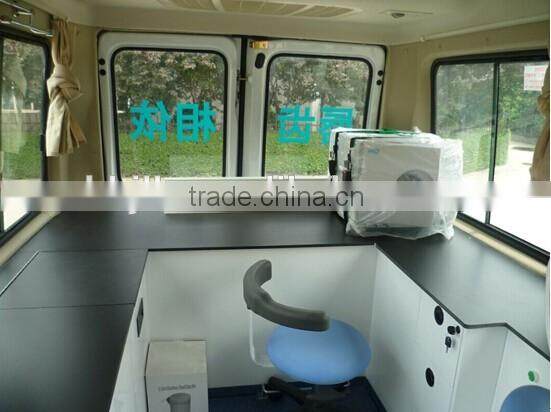

Customize medical multifunctional workbench according to instruments specifications, made of sectional material and steel skeleton electrostatic spray, table facet adopts chemical resistant Laminate, corner of cabinet adopts rounded corners grinding processing to prevent scratches. The surface of cabinet is resistance to chemical attack board, having flame retardant effect, the surface is smooth and tidy, easy to wash and disinfect. Fixed and shock absorption measures in the cabinet, instrument guide rail guide make it convenient to storage apparatus. Can be placed air compressor and other equipments. Medical workbench design fully aware of the instrument placement space, reasonable use of cabinets and countertops.

Air compressor internally installed do noise reduction and shock absorption processing.

Locker can be placed drugs and medical devices.

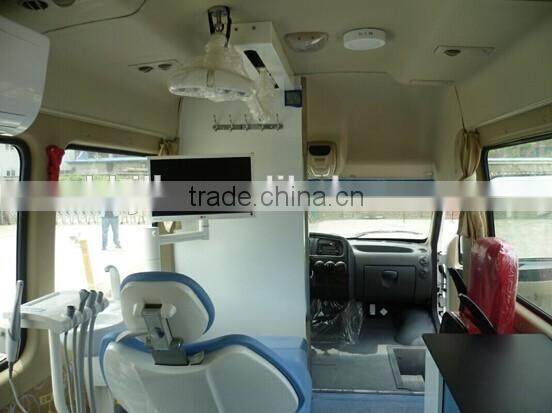

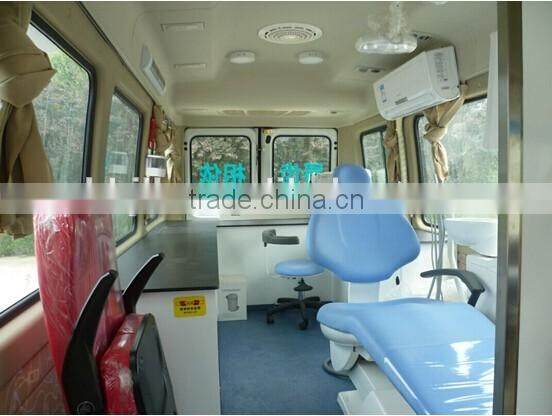

Whole vehicle crew is 3 people (including the driver), passenger district have two folding chairs (equipped with seat belts), treatment zone is equipped with one removable and  liftable and lowerable S407 medical chair, equipped with fixed fasteners connecting with vehicle body, can be fixed in driving condition.
