             Yudian AI-516 PID temperature controller Technical Specification:

___________________________________________________________________________

   I. Technical Specification:

1. Input type : Thermocouple: K,T, E, J, N

                         Resistance temperature detector: Pt100

2. Instrument Input range :

K, E, J, N :0~+999°C;  Pt100: 0~+800°C

3. Measurement accuracy : 0.3%FS±1°C

4. Temperature display resolution : 1 or 0.1 or 0.01

5. Control mode:

On-off control mode , or PID control with the function of parameter auto tuning.

6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.

7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.

8. Power consumption: ≤2W.

9. Ambient temperature: -10~+60°C, Humidity: 0~90RH%

___________________________________________________________________________

   II. Front panel and Operation:

___________________________________________________________________________

   III. Model Code:

The ordering code of AI-516/AI-516P (V8.2) series instrument is made up of 9 parts. For example:

                             AI-516     A    N    X3    L5    N    S4
                                  1        2     3     4      5     6     7

  Part 1: AI-516 PID controller

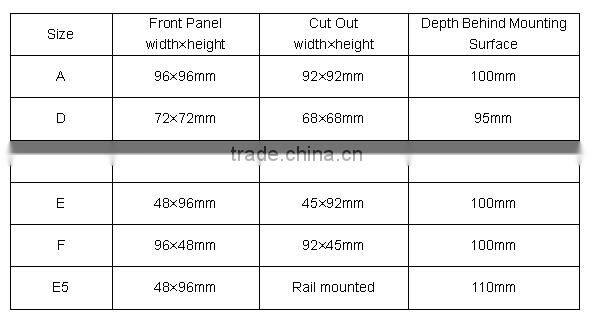

  Part 2: Dimension

    Part 3: Input Type

            N: no module inseted, support  K,T, E, J, N, PT100

            I4: support 0-20mA/4-20mA analog input

    Part 4: Main Output Type

            L1: RELAY output

            G: SSR output

            X3: 4-20mA output

            K1/K3: single/ triple zero crossing trigger output

            K5/K6: single phase- shifting trigger output 220VAC / 380VAC

    Part 5: Alarm

            N: no alarm

            L0: 1 alarm

            L3: 2 alarm

    Part 6:  Auxillary alarm/ Tansmitter output

            N: no alarm

            L0: 1 alarm

            L3: 2 alarm

            X3: 4-20mA transmitter output

    Part 7:  COMM

            S: RS485 communication
