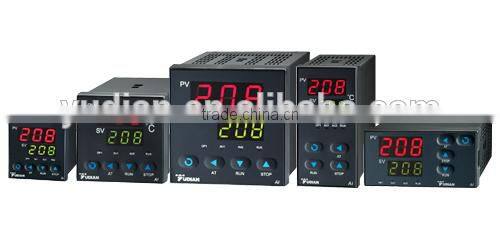

Yudian AI-208L intelligent digital temperature control
Yudian AI-208 digital temperature controller
___________________________________________________________________________
I. Technical Specification:
1. Input type : K,T, E, J, N, PT100
2. output type: Relay, SSR voltage output.
3. Accuracy : 0.3%FS±2°C
4. Resolution : 1℃ or 0.1 ℃
5. Control mode: On-off control or PID control
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC
8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%
___________________________________________________________________________

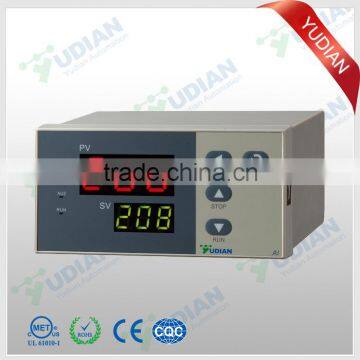

II. Front panel and Operation:
1. Process Valuse (PV), or parameter code
2. Set Values (SV), alarming code, or value of a parameter
3. Setup key, for accessing parameter table, and confirming change
4. Data shift key, also for activating auto turning
5. Data decrease key
6. Data increase key
7. Status display LED
___________________________________________________________________________
III. Model Code:
The type of AI-208 temperature control is made up of 4 parts:
AI-208 A1 L L0
1 2 3 4
Part 1:
AI-208 Type PID economic temperature controller, accurancy 0.3%FS±2°C
Part 2: Dimension
Part 3:Output Type
L: Relay contact output module, capacity 2A/250VAC, normal open.
Part 4: Alarm
N: No alarm.
L0: 1 alarm
L3: 2 alarm
___________________________________________________________________________
IV. AI-208L temperature control Installation and wiring:
( Wiring graph for A,B,E,F size ) ( Wiring graph for A1,B1,E1,F1 size )
( Wiring graph for D size ) ( Wiring graph for D1,D2 size )
___________________________________________________________________________
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
