Yudian widely used industrial temperature recorder for industrial applications
- 2000 Piece / Pieces per Month
- XIAMEN
- Credit Card
-
YUDIAN OEM/ODM customed temperature controller data logger
-
YUDIAN Multi channel paperless data logger recorder
-
data logger temperature humidity for industrial use
-
Good quality Yudian industrial digital data logger
-
Yudian industrial digital data logger factory
-
hot saling Yudian industrial digital temperature data logger manufacturer
Product Details
| Place of Origin: | Fujian, China | Brand Name: | YUDIAN | Model Number: | AI-3706M |
| Usage: | Industrial | Theory: | Other, Temperature recorder | Accuracy: | 0.2%FS ±1°C, 0.25%FS ± 0.1℃ |
| Temperature Range: | 0-9999 |
Packaging Details
STANDARD CARTON BOX
Product Description

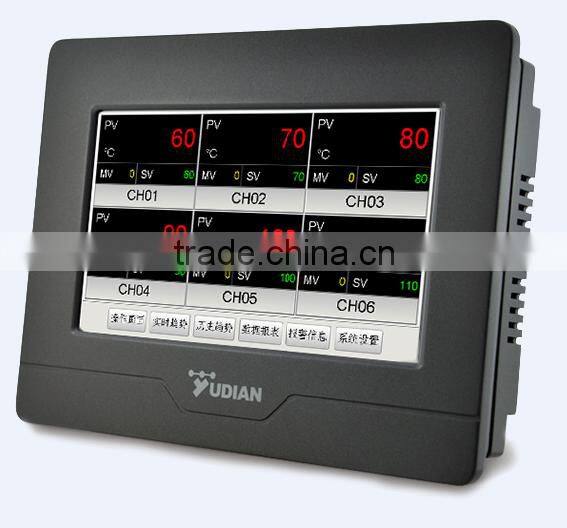

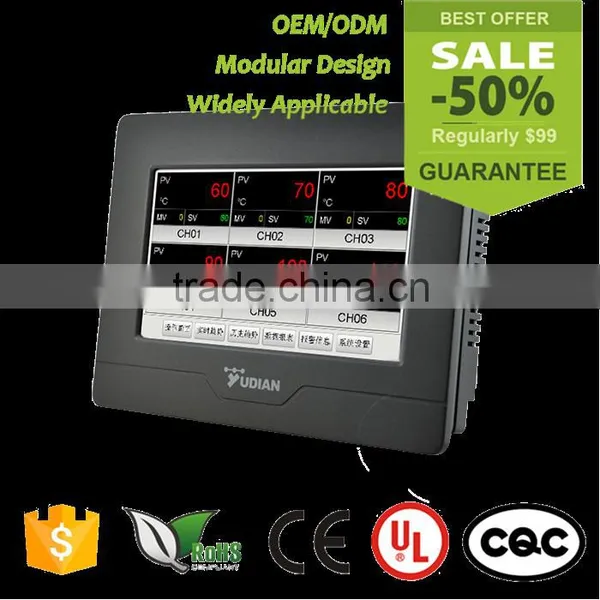

YUDIAN industrial temperature recorder
___________________________________________________________________________
I.Temperature data logger Technical Specification:
| Model | AI-370XM/370XM-W (with PC software): 7 inch |
| Resolution | 800×480 pixels |
| Display Color | TFT true color |
| Backlight | Long- lifespan LED |
| Memory | 150 MB |
| Communication | RS232, RS485, Ethernet interface |
| Power supply | 100~240VAC,-15%~ +10%, 50-60Hz |
| Power consumption | ≤5W |
| Operating Ambient | Temperature:-20℃~+80℃;Humidity:≤90%RH |
| Storage temperature | -10℃~+60℃ |
| Net weight | 0.7kg |
| Cooling | Natural |
| Degree of protection: | Equivalent to IP65 (front panel) |
___________________________________________________________________________

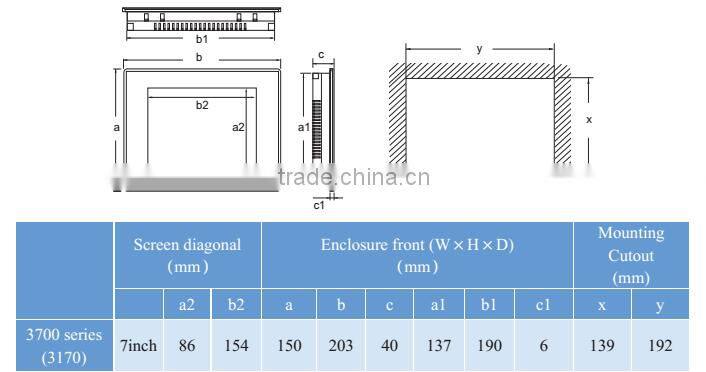

II.Temperature Data Logger Installation and Dimension:
___________________________________________________________________________

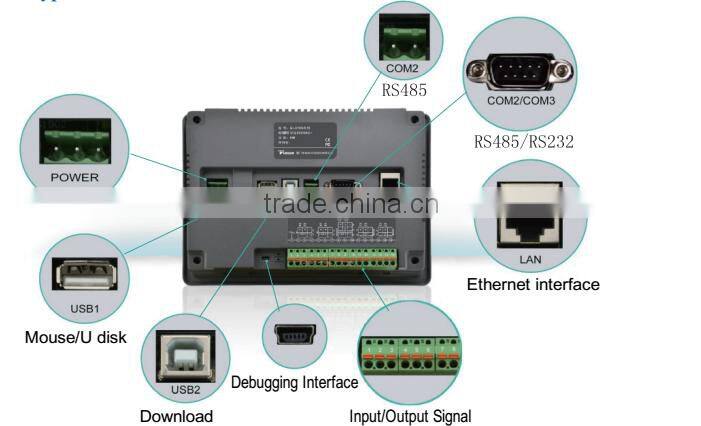

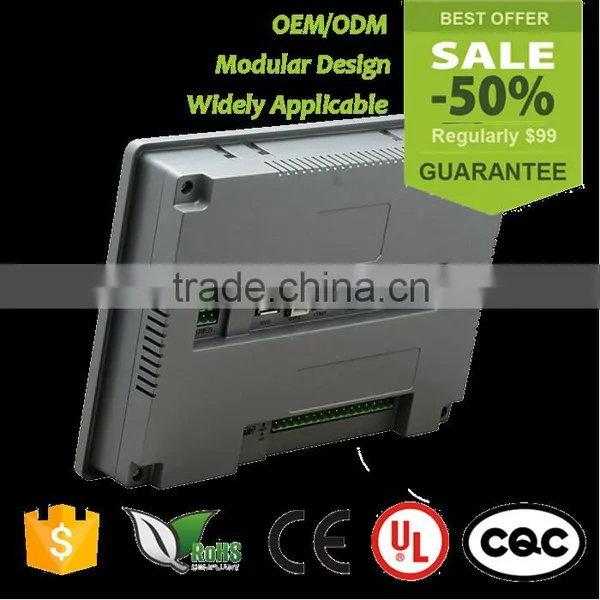

III. Temperature data logger Back View:
___________________________________________________________________________

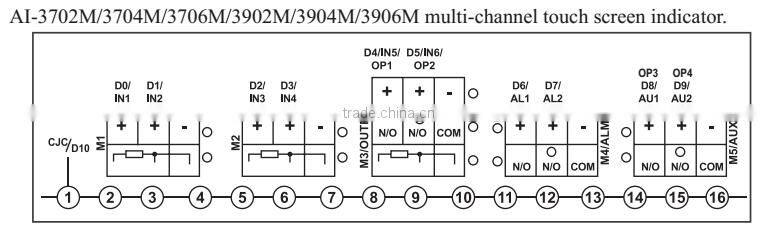

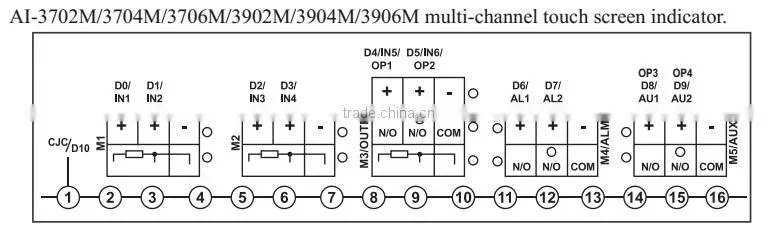

IV: Terminal Layout and Wiring:
___________________________________________________________________________
V: Order Code:
___________________________________________________________________________
VI: Screen View:
- Meter Operation:
- Historical Trends:
- Data List:
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of Temperature data logger
?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
Company Profile
Xiamen Yudian Automation Technology Co., Ltd(YUDIAN),has been devoted to the development and manufacture of industrial process automation controllers since 1991. Through several years of development, YUDIAN has become the number one Chinese intelligent instrument manufacturer, claiming the biggest domestic market share with the sales volume of over 400,000 instruments per year. Our instruments are applied to chemical, petroleum, metallurgy, pharmaceutical, food and beverage and academic industries. Our products are of high quality and competitive prices.
Yudian has constructed a 1000-Square-meter new type factory building in Xiamen Hi-Tech Industrial Development Zone. With multiple modern production and test equipment including fully automatic computer placement machines, lead-free dual crest welders, infrared reflowing welders, high-temperature and high-voltage aging rooms, electromagnetic compatibility testing equipment and humiture environment test laboratories, Yudian can manufacture automation products of the highest quality with the highest precision and reliability.
