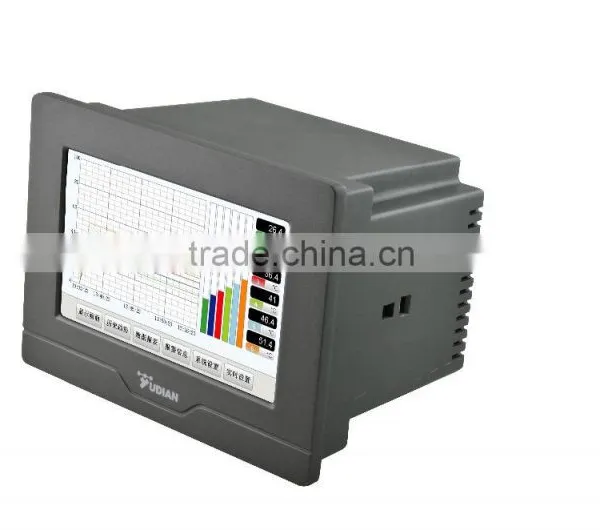

YUDIAN YUDIAN Multi channel paperless data logger recorder
___________________________________________________________________________
I.Temperature data logger Technical Specification:
| Model | AI-37028/37048-W (with PC software): 7 inch, 9 inch |
| Resolution | 800×480 pixels |
| Display Color | TFT true color |
| Backlight | Long- lifespan LED |
| Memory | 150 MB |
| Communication | RS232, RS485, Ethernet interface |
| Power supply | 100~240VAC,-15%~ +10%, 50-60Hz |
| Power consumption | ≤5W |
| Operating Ambient | Temperature:-20℃~+80℃;Humidity:≤90%RH |
| Storage temperature | -10℃~+60℃ |
| Net weight | 0.7kg |
| Cooling | Natural |
| Degree of protection: | Equivalent to IP65 (front panel) |
___________________________________________________________________________

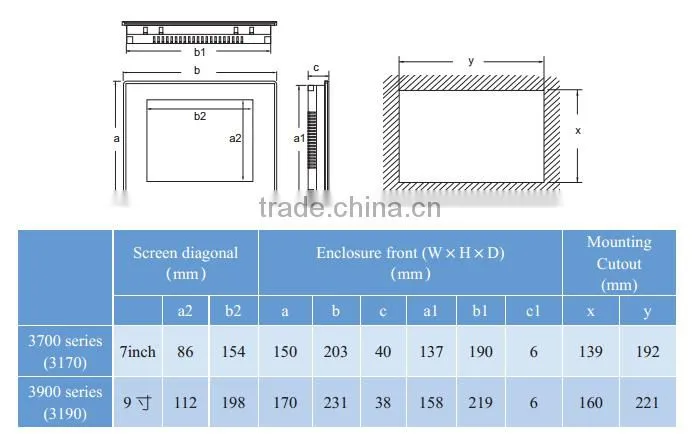

II.Temperature Data Logger Installation and Dimension:
___________________________________________________________________________
III. Temperature data logger Back View:
___________________________________________________________________________

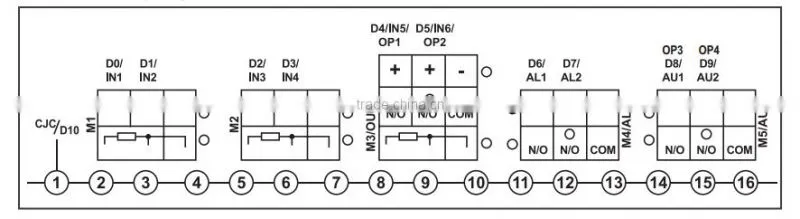

IV: Terminal Layout and Wiring:
___________________________________________________________________________
V: Screen View:

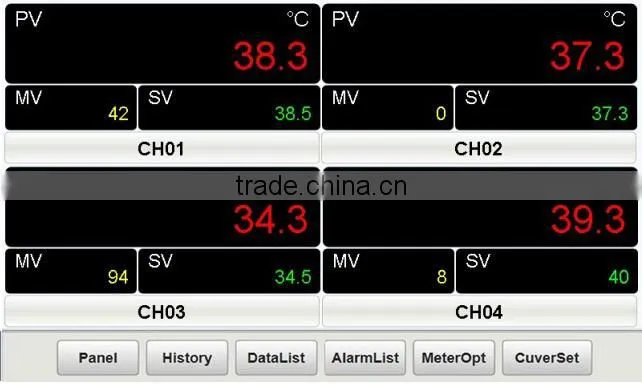

- Meter Operation:

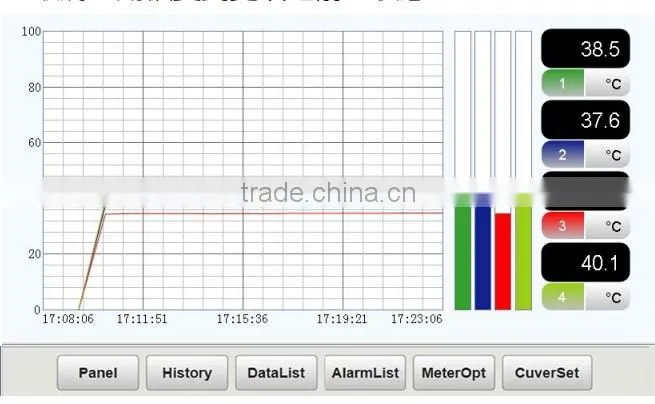

- Historical Trends:

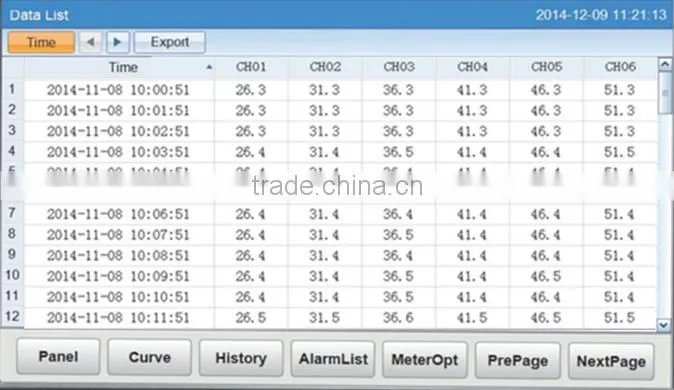

- Data List:
___________________________________________________________________________

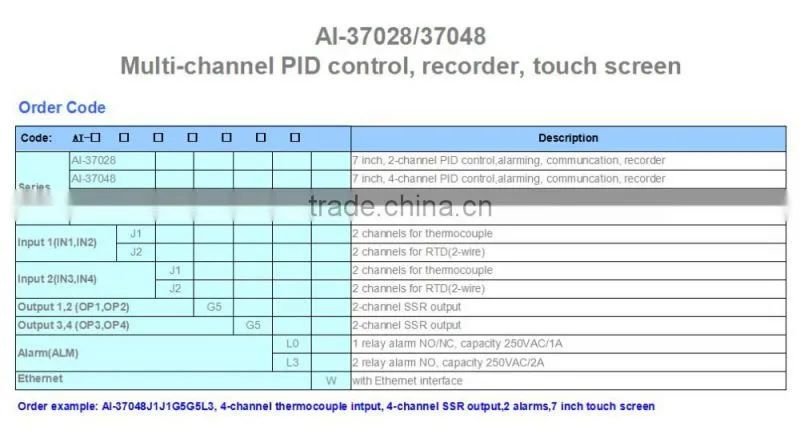

VI: Order code:
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of Temperature data logger
?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
