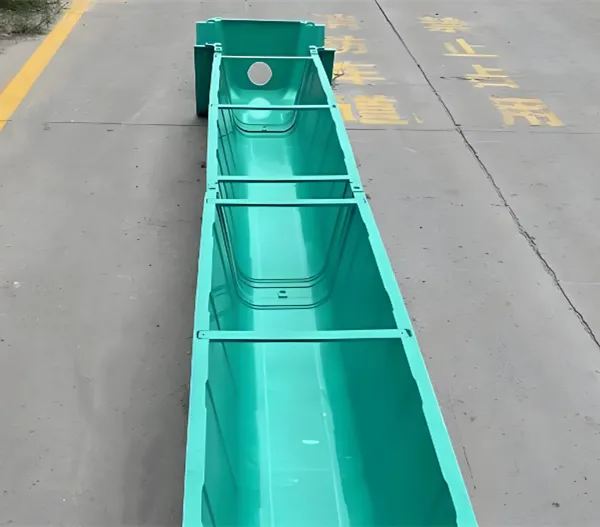

Help CenterHeavy Load Fiberglass Drainage Channel for Airport Runway and Port Area Water Management
Product Spotlights
Related Products
-
Precast Fiberglass Drainage Channel 1000mm x 200mm x 200mm With Integrated Slope and Galvanized GratingNegotiableMOQ: 300 Meters -
Durable Fiberglass Drainage Channel Resistant to Chemicals and UV Light Standard Compliant DesignNegotiableMOQ: 300 Meters
-
Fiberglass Drainage Channel 1.5m Length 250mm Width FRP Material With 5mm Thick Grating Slotted DesignNegotiableMOQ: 300 Meters
-
Fiberglass Drainage Channel With 1-Year Warranty Anti-Corrosion Coating Mill Test Report ProvidedNegotiableMOQ: 300 Meters
-
FRP Drainage Channel With 304 Stainless Steel Bolts 50mm Width 100mm Depth for Pedestrian AreasNegotiableMOQ: 300 Blades
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a factory spanning 1,000-3,000 square meters and over 100 skilled employees, proudly presents our Heavy Load Fiberglass Drainage Channel – specifically engineered for the demanding water management needs of airport runways and port areas. This robust drainage solution combines exceptional load-bearing capacity with superior corrosion resistance, ensuring long-term performance even under the harshest environmental conditions. Our product is designed to meet the highest industry standards, providing reliable water evacuation and preventing surface flooding that could compromise safety and operations.
At the core of our drainage channel is a high-strength fiberglass reinforced plastic (FRP) construction, which offers remarkable advantages over traditional concrete or metal alternatives. The material is lightweight yet incredibly durable, simplifying installation and reducing structural load on substrates. Our channels are designed to handle heavy loads up to F900 classification (per EN 1433), making them suitable for aircraft traffic, heavy container handling equipment, and other extreme loading scenarios commonly found in airports and ports.
Key Features & Technical Specifications
- Exceptional Load Capacity: Engineered to withstand high static and dynamic loads, with reinforced ribs and thick walls. Tested to meet F900 load class for heavy-duty applications.
- Superior Corrosion Resistance: Fiberglass is inherently resistant to chemicals, saltwater, and de-icing agents – ideal for marine environments and airport runway de-icing fluids.
- Lightweight Design: Typically 70% lighter than concrete channels, reducing transportation costs and enabling faster, safer installation without heavy machinery.
- Modular System: Available in standard lengths (1m, 2m, etc.) with interlocking joints for easy assembly and alignment. Custom lengths and configurations available upon request.

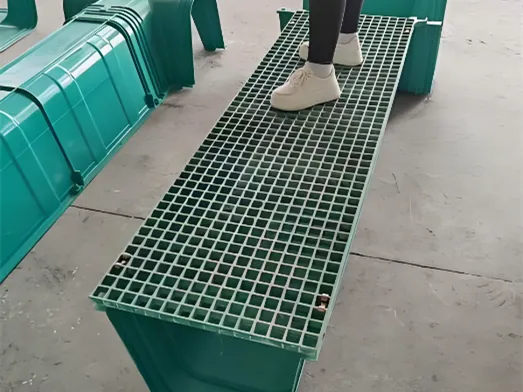

- Anti-Slip Grating (Optional): Can be paired with fiberglass gratings featuring high slip resistance (R12/R13) for pedestrian safety in wet areas.
- Low Maintenance: Smooth interior surface minimizes debris accumulation, and the non-porous material prevents algae growth, reducing cleaning frequency.
| Parameter | Standard Value |
|---|---|
| Material | Fiberglass Reinforced Polyester / Vinyl Ester |
| Load Class | F900 (EN 1433) – for heavy load areas |
| Internal Width | 100mm, 150mm, 200mm, 300mm (customizable) |
| Overall Height | 100mm – 500mm (customizable) |
| Standard Length | 1,000mm / 2,000mm (other lengths upon request) |
| Operating Temperature | -40°C to +80°C |
| Resistance to Chemicals | Excellent against acids, alkalis, salts, and hydrocarbons |
Our drainage channels are specifically designed for airport runways and port areas, where water management is critical. In airports, standing water on runways can cause hydroplaning and safety hazards; our efficient drainage system quickly removes rainwater and meltwater, maintaining optimal friction. In ports, heavy rainfall and tidal surges must be managed to protect cargo and equipment – our channels handle high flow rates and resist corrosive saltwater. The fiberglass material also offers excellent electrical insulation, reducing risks of static discharge in fuel-handling areas.
Benefits to Customers
- Extended Service Life: With UV-stabilized resin and corrosion-proof construction, our channels last 20+ years with minimal degradation, reducing replacement costs.
- Easy Installation: Lightweight sections can be handled by 2-3 workers without cranes, and the interlocking system ensures precise alignment. Installation time is typically 30-50% faster than concrete.
- Customizable Solutions: We offer bespoke designs for non-standard dimensions, load requirements, and grating types. Our engineering team can adapt to your specific project blueprints.
- Environmentally Friendly: Fiberglass production has a lower carbon footprint compared to cement, and the product is 100% recyclable at end of life.
As a dedicated manufacturer with ISO9001 and ISO9000 certified quality management systems, Hengshui Ruibin New Materials LLC ensures every channel meets rigorous quality checks. Our factory, covering 1,000-3,000 square meters, houses advanced pultrusion and molding equipment, and we employ over 100 skilled workers. With an annual export value of US$2.5 million to US$5 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania, shipping from the ports of Tianjin and Qingdao. Our experienced team provides end-to-end support, from design consultation to after-sales service.
Choose our Heavy Load Fiberglass Drainage Channel for a reliable, cost-effective, and durable water management solution. Contact us today for a quote or to discuss your project requirements. We are committed to delivering excellence in every order.
Frequently Asked Questions
-
Q: What is the maximum load capacity of your drainage channel?
A: Our channels are designed to meet F900 load class per EN 1433, which means they can withstand static loads up to 900 kN and dynamic loads commonly encountered in airport runways and port areas. -
Q: Can the channels be used with aggressive chemicals or de-icing fluids?
A: Yes, the fiberglass material is highly resistant to a wide range of chemicals, including de-icing agents (e.g., sodium chloride, calcium chloride, and urea), as well as saltwater, acids, and alkalis. We recommend vinyl ester resin for maximum chemical resistance. -
Q: Are the channels available in custom sizes?
A: Absolutely. We can customize the width, height, length, and even the shape of the channel to match your specific project requirements. Please provide your drawings or specifications for a tailored solution. -
Q: How are the channels installed? Do you provide installation instructions?
A: We provide detailed installation manuals and technical support. The channels are lightweight and can be installed using a simple trench preparation, base concrete, and interlocking connection. No special heavy equipment is needed. -
Q: What grating options are available for these channels?
A: We offer fiberglass gratings in various configurations: slotted, plate, and mesh types, with different load ratings and slip resistance levels. Anti-slip coatings or grit can be applied for enhanced safety. -
Q: Do you have quality certifications?
A: Yes, our factory is ISO9001 and ISO9000 certified. We also comply with international standards such as EN 1433 for drainage channels. Each batch is tested for load capacity, dimensional accuracy, and material quality. -
Q: What is the typical lead time for an order?
A: For standard sizes, lead time is 15-20 days after order confirmation. Custom orders may take 25-35 days depending on complexity. We can expedite for urgent projects upon request. -
Q: Do you ship internationally? Which ports do you use?
A: Yes, we export worldwide. Our main shipping ports are Tianjin and Qingdao, China. We have experience packing containers efficiently to minimize shipping costs and ensure product safety during transit.
