Home > Chemicals > Rubber & Rubber Products > Other Rubber Products > FRP Drainage Channel 1.2m x 200mm x 150mm, Load Class C250, Standard Compliant With EN 1433

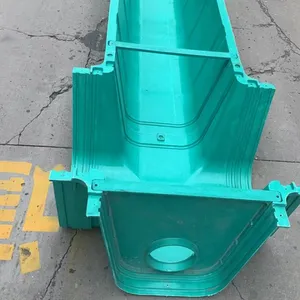

FRP Drainage Channel 1.2m x 200mm x 150mm, Load Class C250, Standard Compliant With EN 1433
Product Spotlights
Lightweight FRP construction with C250 load rating (EN 1433 compliant). Corrosion-resistant, easy to install, and customizable. Ideal for parking lots, driveways, and industrial areas. Backed by ISO9001 certified manufacturer with global export experience.
Negotiable
MOQ: 300 Blades (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Fiberglass Reinforced Polymer (FRP)
Length:
1200 mm (1.2 m)
Width:
200 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slotted FRP Drainage Channel 2m Length, 4mm Thick Wall, Corrosion Resistant for Chemical PlantsNegotiableMOQ: 300 Blades -
Heavy Duty FRP Drainage Channel D400 Load Rating, 1m x 300mm x 100mm, Isophthalic PolyesterNegotiableMOQ: 300 Blades
-
FRP Drainage Channel With C250 Load Class, 1.2m Length, Vinyl Ester Resin, UV ResistantNegotiableMOQ: 300 Blades
-
FRP Drainage Channel With 304 Stainless Steel Grate, 1m Length, 200mm Width, for Pedestrian AreasNegotiableMOQ: 300 Blades
-
FRP Drainage Channel for Airport Runway Drainage Systems Heavy Duty C250 Load ClassNegotiableMOQ: 300 Blades
Material
Other, Fiberglass Reinforced Polymer (FRP)
Length
1200 mm (1.2 m)
Width
200 mm
Height
150 mm
Load Class
C250 (EN 1433)
Standard
EN 1433
Color
Gray (customizable)
Application
Roads, parking lots, airports, industrial areas
Certification
ISO9001, ISO9000
Surface Finish
Smooth anti-slip (optional)
Hengshui Ruibin New Materials LLC, a reliable manufacturer established in 2019 with a factory spanning 1,000–3,000 square meters and over 100 skilled employees, proudly presents our FRP Drainage Channel 1.2m x 200mm x 150mm in Load Class C250, fully compliant with EN 1433. This high-performance trench drain combines the lightweight strength of fiberglass reinforced polymer with rigorous European standards, offering an ideal solution for efficient water management in heavy-duty traffic areas. Engineered to withstand vehicle loads up to 25 tonnes, our channel delivers exceptional durability and corrosion resistance, making it a smart investment for long-term infrastructure projects.
Key Features & Technical Specifications
- Superior Material: Made from high-quality FRP (fiberglass reinforced polymer) – non-corrosive, non-conductive, and resistant to chemicals, UV, and extreme temperatures.
- Precise Dimensions: Length 1.2 m (1200 mm), width 200 mm, height 150 mm – modular design for easy installation and alignment.
- Load Class C250: Certified to withstand static and dynamic loads up to 250 kN (25 tonnes) per EN 1433, suitable for areas with light vehicle traffic (cars, vans, and occasional trucks).
- EN 1433 Compliance: Full adherence to the European standard for drainage channels, ensuring safety, performance, and interchangeability.
- Lightweight yet Strong: Approximately 70% lighter than traditional concrete channels, reducing transportation and installation costs without compromising strength.
- Anti-Slip Surface: Available with optional textured grating for enhanced pedestrian safety.
- Easy Installation: Interlocking joints with integrated sealing gaskets prevent leakage; can be cut on-site to custom lengths.
- Low Maintenance: Smooth inner surface minimizes debris buildup; resistant to rust and biological growth.
Product Parameters (Table)
| Parameter | Value |
|---|---|
| Length | 1200 mm (1.2 m) |
| Width (internal) | 200 mm |
| Height | 150 mm |
| Load Class | C250 (25 tonnes) |
| Material | Fiberglass Reinforced Polymer (FRP) |
| Standard | EN 1433 |
| Weight per unit | ~8 kg (approx.) |
| Color | Gray (custom colors available upon request) |
Benefits to Your Project
- Cost Savings: Lightweight FRP reduces shipping costs and speeds up installation – no heavy machinery required.
- Long Service Life: Resistant to corrosion, freeze-thaw cycles, and road salts, ensuring decades of reliable performance.
- Environmental Friendly: Produced with low energy consumption; 100% recyclable material.
- Versatile Applications: Perfect for parking lots, driveways, pedestrian zones, airports, warehouses, and more.
- Customizable Options: Different grating types (slotted, perforated, solid), colors, and connection accessories available.
Why Choose Hengshui Ruibin New Materials LLC?
As a dedicated manufacturer with over 100 employees and an annual export value of US$2.5–5 million, we have built a strong reputation across North America, Europe, Southeast Asia, and beyond. Our factory is ISO9001 & ISO9000 certified, ensuring strict quality control from raw material to finished product. We ship from the ports of Tianjin and Qingdao, offering fast and reliable logistics. With a team of experienced engineers, we provide technical support, custom designs, and prompt after-sales service. Choose our FRP drainage channel for a durable, compliant, and cost-effective drainage solution.
Contact us today for a quote or sample. We are ready to partner with you for your next infrastructure project.
Frequently Asked Questions (FAQ)
-
Q1: What does Load Class C250 mean?
A: C250 is a load class defined by EN 1433, indicating the channel can withstand a static load of 250 kN (approximately 25 tonnes). It is suitable for areas with light vehicle traffic, such as car parks, driveways, and service roads. -
Q2: Can this FRP channel be used in chemically aggressive environments?
A: Yes, FRP is inherently resistant to a wide range of chemicals, including acids, alkalis, and salts, making it ideal for industrial sites, gas stations, and coastal areas where corrosion is a concern. -
Q3: How do I install the channels?
A: The channels feature interlocking joints with rubber seals. They can be laid on a concrete base or gravel bed, aligned using the integrated locking system, and then grouted in place. Detailed installation instructions are provided with every order. -
Q4: Is the channel compatible with standard EN 1433 gratings?
A: Yes, our channel is designed to accept gratings that comply with EN 1433. We offer compatible gratings in various materials (ductile iron, steel, FRP) and load ratings. -
Q5: Can I get a custom length or color?
A: Absolutely. We can cut the channels to any length between 1.0 m and 2.0 m, and we offer custom colors for large orders. Please contact our sales team with your requirements. -
Q6: What is the expected lifespan of this FRP drainage channel?
A: With proper installation and minimal maintenance, FRP channels can last 20–30 years or more, thanks to their resistance to UV degradation, moisture, and temperature extremes. -
Q7: Do you provide samples before bulk order?
A: Yes, we offer free samples for evaluation. You only need to cover the shipping cost. We encourage customers to test the product quality and compatibility. -
Q8: What is the minimum order quantity (MOQ)?
A: Our standard MOQ is 50 pieces per size. However, for new customers or trial orders, we can discuss smaller quantities. Please inquire.
