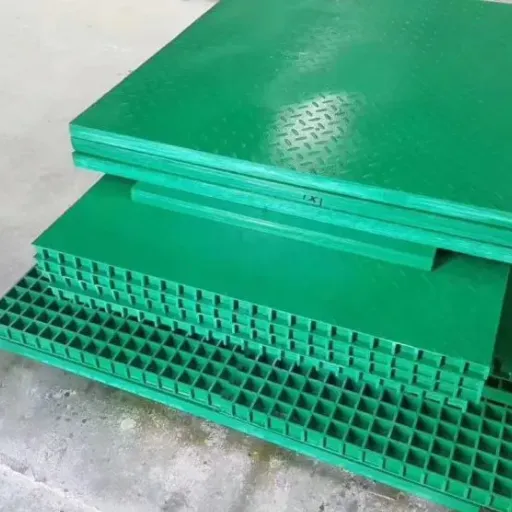

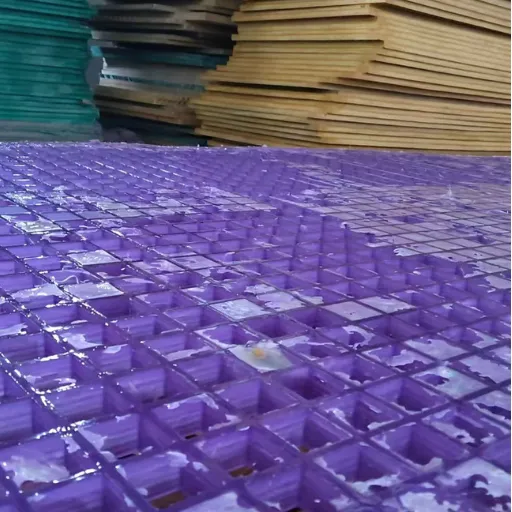

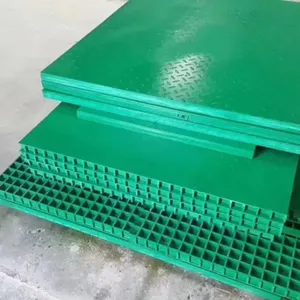

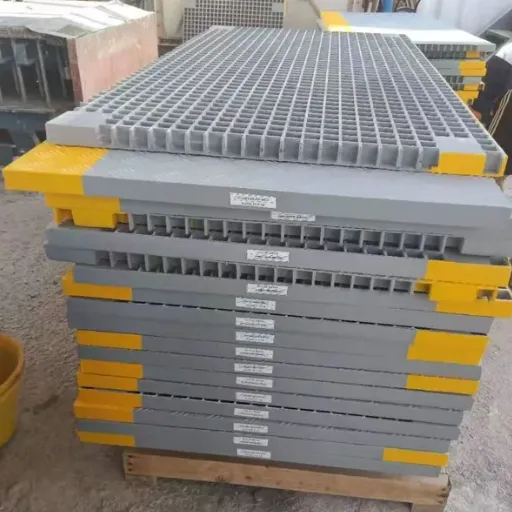

Hengshui Ruibin New Materials LLC, a trusted manufacturer established in 2019 with a factory spanning 1,000–3,000 square meters and a team of 101–200 skilled employees, proudly presents our premium Fiberglass Grating with a 5-Year Warranty, Mill Test Report available, standard compliant, and 25mm thick. This product is engineered to deliver exceptional durability, corrosion resistance, and safety for demanding industrial environments. Our grating is designed to meet the rigorous requirements of global markets, supported by annual export value of US$2.5 Million–US$5 Million and shipping from major ports such as Tianjin and Qingdao.
The 25mm-thick fiberglass grating offers a robust solution for heavy-duty applications, including walkways, platforms, catwalks, and drainage covers. Its lightweight yet strong construction reduces installation costs and maintenance efforts. With a 5-year warranty and mill test reports available upon request, you can trust the quality and consistency of every panel. We ensure each product complies with international standards, making it a reliable choice for North America, South America, Europe, Southeast Asia, Africa, Oceania, and more.
Key Features & Benefits
- Corrosion Resistance: Ideal for harsh chemical environments, wastewater treatment plants, and marine applications. Non-conductive and non-magnetic.
- High Load Capacity: Engineered to support heavy loads with minimal deflection. Suitable for pedestrian and light vehicular traffic.
- Anti-Slip Surface: Concave/convex texture or grit-top options provide excellent traction even when wet, enhancing worker safety.
- Low Maintenance: No need for painting or coating. Resistant to UV degradation and weathering.
- Customizable Dimensions: Available in various panel sizes (length and width) to fit your project requirements. Cutouts and special shapes can be produced.
- Lightweight: Approximately 1/4 the weight of steel grating, reducing structural load and installation labor.
- Flame Retardant: Resin systems can be formulated to meet fire resistance standards (e.g., Class A flame spread).
Technical Specifications
| Property | Value |
| Thickness | 25 mm (±1 mm) |
| Panel Size (Standard) | 1220 mm × 3660 mm (custom sizes available) |
| Resin Type | Polyester, Vinyl Ester, or Phenolic (optional) |
| Glass Content | 30% – 50% by weight |
| Load Capacity (Uniform) | Up to 500 kg/m² (depending on span and resin) |
| Operating Temperature | -40°C to +80°C (higher with special resin) |
| Surface Type | Concave/convex (standard) or grit-top (optional) |
| Color | Yellow, Gray, or custom |
| Warranty | 5 Years |
Mill Test Report: A comprehensive mill test report is available for each batch, providing traceability of raw materials, mechanical properties, and compliance data. This ensures full transparency and quality assurance for your projects.
Why Choose Hengshui Ruibin New Materials LLC?
- ISO9001 & ISO9000 Certified: Our quality management system meets international standards, guaranteeing consistent product excellence.
- Experienced Team: With 101–200 employees, we have the expertise to handle complex orders and provide technical support.
- Global Reach: We export to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. Our products are trusted across diverse climates and industries.
- Reliable Supply Chain: Located in Hengshui, Hebei, China, we are close to major ports (Tianjin, Qingdao) for efficient worldwide shipping.
- Customer-Centric: We offer customizable solutions, fast turnaround times, and responsive after-sales service.
Our annual export value of US$2.5M–US$5M reflects strong market confidence in our products. Every fiberglass grating panel is manufactured with precision and tested to meet stringent quality criteria. The 5-year warranty stands as a testament to our confidence in the product's long-term performance.
Ready to improve safety and durability in your facility? Contact us today for a quote, sample request, or technical consultation. We are committed to delivering fiberglass grating solutions that exceed your expectations.
Frequently Asked Questions (FAQ)
- What is the standard panel size for 25mm thick fiberglass grating? Standard panels are 1220mm × 3660mm, but we can customize length and width up to 1220mm × 3660mm. Please inquire for non-standard sizes.
- Can this grating be used in contact with food or chemicals? Yes, with the appropriate resin selection (e.g., vinyl ester for chemical resistance). We recommend consulting our technical team for specific chemical compatibility.
- Is the grating UV resistant? Yes, the resin system includes UV inhibitors to prevent degradation from sunlight exposure. However, for long-term outdoor use, we recommend selecting a UV-stabilized option.
- How do I install the grating? Installation typically involves using clips, brackets, or adhesive. We provide installation guidelines and can offer recommendations based on your application.
- What is the lead time for orders? Lead time depends on quantity and customization. Typically 15–30 working days for standard panels. Urgent orders can be accommodated upon request.
- Do you provide samples? Yes, we can provide small samples for evaluation. Please contact us with your requirements.
- Is the mill test report included with every order? Yes, a mill test report is available upon request for each production batch. It includes material composition, mechanical properties, and compliance data.
- What certifications does your factory hold? We are certified under ISO9001 and ISO9000 quality management systems. Our products are manufactured to comply with international standards for grating.
