Home > Chemicals > Fiberglass Products > Other Fiberglass Products > Molded Fiberglass Grating 38mm, Isophthalic Polyester, 1.5"x1.5" Mesh, Anti-Slip, for Industrial Walkways

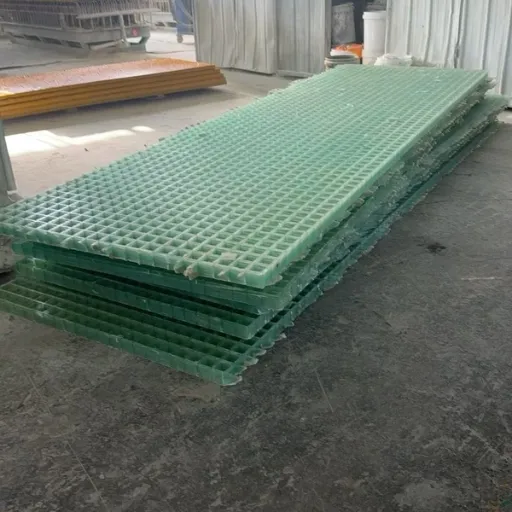

Molded Fiberglass Grating 38mm, Isophthalic Polyester, 1.5"x1.5" Mesh, Anti-Slip, for Industrial Walkways
Product Spotlights
38mm thick molded fiberglass grating with isophthalic polyester resin and 1.5"x1.5" anti-slip mesh. Superior corrosion resistance, high load capacity, lightweight, non-conductive, and low maintenance. ISO9001 certified, customizable colors/sizes, ideal for industrial walkways, platforms, and catwalks.
Negotiable
MOQ: 300 Blades (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Thickness:
38mm (1.5 inch)
Resin Type:
Isophthalic Polyester
Mesh Size:
1.5“ x 1.5“ (38mm x 38mm)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass Grating Trench Cover 38mm, 4ft x 8ft Panel, Orange Color, High Visibility, 2000kg Load CapacityNegotiableMOQ: 300 Blades -
Pultruded Fiberglass Grating 25mm, Vinyl Ester Resin, Grit Top, 38% Open Area, Load Capacity 5000kg/m²NegotiableMOQ: 300 Blades
-
Pultruded Fiberglass Grating With 1" x 4" Bar Spacing, 25mm Depth, 1000kg/m² Load, for Platform DeckingNegotiableMOQ: 300 Blades
-
Fiberglass Grating Factory Direct, 10-Year Warranty, Free Customization, 38mm Molded Type, Load TestedNegotiableMOQ: 300 Blades
-
Molded Fiberglass Grating for Chemical Plant Flooring, 38mm Depth, 1.5 Inch Grid, Anti-SlipNegotiableMOQ: 200 Blades
Thickness
38mm (1.5 inch)
Resin Type
Isophthalic Polyester
Mesh Size
1.5“ x 1.5“ (38mm x 38mm)
Surface Finish
Anti-Slip (Concave or Grit Top)
Material
Fiberglass Reinforced Plastic (FRP)
Application
Industrial Walkways, Platforms, Catwalks
Color
Yellow, Gray, Green (Customizable)
Load Capacity
High (per ASTM D3841 standards)
Fire Rating
Class 1 (per ASTM E84, optional)
Corrosion Resistance
Excellent (chemical resistant)
Hengshui Ruibin New Materials LLC is a professional manufacturer specialized in high-quality composite products. With over 5 years of experience and a factory spanning 1,000–3,000 square meters, we take pride in delivering Molded Fiberglass Grating 38mm made from Isophthalic Polyester resin with a 1.5"x1.5" mesh and anti-slip surface. This product is engineered to provide a safe, durable, and cost-effective walking surface for industrial environments. Our grating is manufactured under strict ISO9001/ISO9000 quality management systems, ensuring consistent performance and reliability. Whether you need walkways, platforms, or catwalks, this grating offers superior strength-to-weight ratio and long-term corrosion resistance.
Key Features & Technical Specifications
- High Load Bearing Capacity: The 38mm thickness combined with a dense 1.5"x1.5" mesh provides excellent structural integrity, capable of supporting heavy foot traffic and light industrial loads.
- Anti-Slip Surface: Either a concave surface or a grit-embedded top layer significantly reduces slip risks, meeting OSHA safety standards for wet or oily areas.
- Isophthalic Polyester Resin: Offers superior chemical resistance compared to orthophthalic polyester, making it ideal for chemical plants, wastewater treatment, and marine environments.
- Lightweight & Easy Installation: Weighs approximately 60% less than steel grating, reducing structural support requirements and labor costs. Panels can be cut on-site with standard tools.
- Non-Conductive & Non-Magnetic: Safe for use near electrical equipment and in areas where sparking must be avoided.
- Low Maintenance: Does not rust, rot, or corrode; requires only occasional washing to maintain appearance.
- Customizable Color & Size: Available in standard yellow, gray, green, or custom colors. Panel dimensions can be tailored to project needs.
Typical Applications
- Industrial walkways and catwalks
- Platforms for elevated work areas
- Stair treads and trench covers
- Flooring in chemical processing, food & beverage, and water treatment plants
- Outdoor walkways in marine and offshore environments
Technical Data (Typical Values)
| Property | Value |
|---|---|
| Panel Thickness | 38 mm (1.5 inch) |
| Mesh Opening | 1.5" x 1.5" (38 x 38 mm) |
| Resin System | Isophthalic Polyester |
| Glass Content | 30% – 35% (by weight) |
| Tensile Strength | ≥ 100 MPa |
| Flexural Strength | ≥ 200 MPa |
| Compressive Strength | ≥ 250 MPa |
| Operating Temperature | -40°C to +80°C (continuous) |
| Fire Rating (optional) | Class 1 per ASTM E84 (flame spread ≤ 25) |
| Standard Panel Size | 1.22m x 3.66m (4 ft x 12 ft) — customizable |
Why Choose Our Molded Fiberglass Grating?
- Corrosion & Chemical Resistance: Isophthalic polyester resin withstands harsh chemicals, acids, and alkalis, extending service life in aggressive environments.
- Safety First: The anti-slip surface reduces workplace accidents, while the non-conductive property eliminates electrical hazards.
- Cost-Effective: Lower installation and maintenance costs compared to traditional steel or aluminum grating.
- Environmentally Friendly: Long lifespan reduces replacement frequency; 100% recyclable at end of life.
- Global Shipping: Available from Port of Tianjin or Port of Qingdao, with reliable logistics to North America, Europe, Asia, Africa, and Oceania.
Trust & Reliability
Hengshui Ruibin New Materials LLC has been a trusted manufacturer since 2019. Our factory is ISO9001:2015 certified, ensuring strict quality control at every production stage. We have an annual export value of US$2.5 – US$5 million, serving clients in over 10 countries and regions. Our team of 101–200 dedicated employees, combined with a 1,000–3,000 sqm facility, allows us to deliver consistent quality and on-time shipments. Our molded fiberglass grating is widely used in industrial walkways across North America, South America, Eastern Europe, Southeast Asia, Africa, and the Middle East. We are committed to providing competitive pricing, custom solutions, and excellent after-sales support. Contact us today for a quote or sample request — experience the quality difference with Hengshui Ruibin.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum span for this 38mm grating?
A: The safe span depends on load requirements. For pedestrian traffic (100 psf), typical support spacing is 24–30 inches (610–762 mm). For light industrial loads, we recommend consulting our load tables. -
Q: Can this grating be used in contact with food?
A: Yes, Isophthalic polyester resin is FDA-compliant for incidental food contact. However, for direct food contact applications, we recommend a vinyl ester resin system. Please inquire for details. -
Q: Is the anti-slip surface permanent?
A: Our standard anti-slip surface is either a concave texture or a bonded silica grit. Both are integral to the panel and will not wear off easily under normal use. -
Q: Do you offer custom colors or sizes?
A: Absolutely. We can produce panels in custom dimensions (up to 1.22m x 3.66m standard) and a variety of colors. Minimum order quantities may apply for custom colors. -
Q: How long does the product last in outdoor UV exposure?
A: Isophthalic polyester grating has good UV resistance. For extended outdoor use, we can add UV inhibitors to the resin. Typical lifespan exceeds 10–15 years with minimal maintenance. -
Q: What certifications do you have for fire safety?
A: Our standard grating meets Class 1 flame spread rating per ASTM E84 (optional). If you require specific fire codes (e.g., IMO, BS476), please contact us for custom formulations. -
Q: Do you provide free samples?
A: Yes, we can provide small sample pieces (approx. 4"x4") for evaluation. Freight charges may apply for international shipments, but the sample is free. -
Q: What is the lead time for an order?
A: For standard panels, lead time is typically 15–20 working days after order confirmation. Custom colors or special sizes may require 25–30 days.
