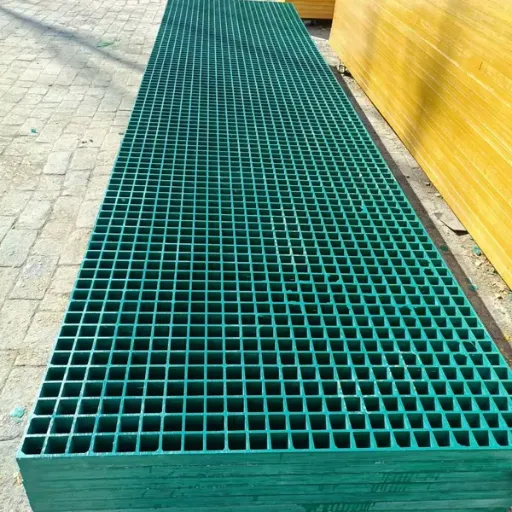

Help Center25mm Thickness Fiberglass Grating With 1.5 Inch Grid, 5000kg/m2 Load Capacity for Industrial Flooring
Product Spotlights
Related Products
-
Fiberglass Grating With 5-Year Structural Warranty, Free Sample Provided, Technical Support AvailableNegotiableMOQ: 200 Blades -
Corrosion Resistant Fiberglass Grating, 100mm x 38mm Panel, 5mm Bar Thickness, for Wastewater TreatmentNegotiableMOQ: 200 Blades
-
Isophthalic Polyester Resin Fiberglass Grating, Anti-Slip Surface, 38mm Depth for Chemical PlantNegotiableMOQ: 200 Blades
-
Standard Compliant Fiberglass Grating, 1 Year Warranty, Mill Test Report Included for Quality AssuranceNegotiableMOQ: 200 Blades
-
Fiberglass Grating for Food Processing Plant, Smooth Surface, 25mm Thick, Standard Compliant for Food ContactNegotiableMOQ: 200 Blades
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000-3,000 m² factory and ISO9001/ISO9000 certified production, proudly presents our 25mm Thickness Fiberglass Grating with a 1.5-inch grid and an impressive 5000 kg/m² load capacity. Designed specifically for heavy-duty industrial flooring, this grating offers exceptional strength, corrosion resistance, and long service life, making it the ideal choice for demanding environments such as chemical plants, offshore platforms, and wastewater treatment facilities. Our advanced pultrusion process ensures consistent quality, and with over 100 skilled employees, we deliver reliable products to global markets including North America, Europe, Southeast Asia, and Africa.
This fiberglass grating is engineered to support extreme loads while maintaining a lightweight structure, reducing installation costs and structural burden. The 25mm thickness provides robust rigidity, and the 1.5-inch square grid optimizes load distribution and slip resistance. Below are the key technical specifications:
| Parameter | Value |
|---|---|
| Thickness | 25 mm (1 inch) |
| Grid Spacing | 1.5 inch x 1.5 inch (38.1 mm x 38.1 mm) |
| Load Capacity | 5000 kg/m² (10,000+ psf) |
| Resin Type | Isophthalic polyester, vinyl ester (optional) |
| Glass Content | 30% – 35% by weight |
| Surface Finish | Concave grit top (standard) or smooth top |
| Color | Yellow, green, gray, or custom |
| Standard Panel Size | 1220 mm x 3660 mm (customizable) |
Product Features and Benefits:
- High Load Capacity: Withstands up to 5000 kg/m², suitable for heavy machinery, forklift traffic, and constant foot traffic in industrial plants.
- Corrosion Resistance: Made from fiberglass and premium resin, it resists chemicals, moisture, UV, and extreme temperatures – ideal for harsh environments.
- Slip Resistance: The grit-top surface provides excellent traction even when wet, reducing workplace accidents.
- Lightweight & Easy Installation: Only 1/4 the weight of steel grating, reducing handling costs and supporting structure requirements.
- Non-Conductive & Non-Magnetic: Safe for electrical environments and sensitive equipment.
- Low Maintenance: Does not rust, rot, or corrode; requires no painting or coating over its lifespan.
- Customizable Dimensions: Panels can be cut to exact size, and we offer custom mesh configurations upon request.
- Fire Retardant Options: Available with flame-retardant additives (meets ASTM E84 Class I/II).
Our 25mm thick grating is extensively used in industrial flooring, including:
- Chemical processing plants
- Oil and gas platforms
- Wastewater treatment facilities
- Food and beverage processing areas
- Marine and offshore structures
- Mining and heavy equipment platforms
- Pedestrian walkways and mezzanines
Why Choose Hengshui Ruibin New Materials LLC?
As a dedicated manufacturer with a 2,000+ m² production facility and a team of 101-200 experienced workers, we have exported US$2.5–5 million annually to over 20 countries. Our products are ISO9001 and ISO9000 certified, ensuring consistent quality and traceability. We ship from major ports in Tianjin and Qingdao, with reliable lead times. Backed by a strong R&D team, we can customize grating to meet your specific load requirements, grid sizes, and colors. Our after-sales service includes technical support and free samples for evaluation.
Invest in a flooring solution that delivers unmatched durability, safety, and cost-efficiency. Contact us today for a quote or to request a sample. Let Hengshui Ruibin be your trusted partner in industrial flooring.
Frequently Asked Questions (FAQ):
-
Q: What is the maximum span for this grating under 5000 kg/m² load?
A: Recommended maximum support spacing is 600 mm (24 inches) for concentrated loads. For uniform loads, 5000 kg/m² can be safely supported at 600 mm centers. We provide span tables upon request. -
Q: Can this grating be used outdoors in direct sunlight?
A: Yes, our grating uses UV-stabilized resin, and the grit top helps resist UV degradation. For prolonged exposure, we recommend adding a UV inhibitor layer (available as an option). -
Q: Is the grating fire-resistant?
A: Standard grade is self-extinguishing per ASTM D635. We also offer flame-retardant versions meeting ASTM E84 Class I/II with a –FR suffix. -
Q: How do you cut the grating to size?
A: Panels can be cut using standard carbide-tipped saw blades or abrasive cut-off wheels. We can also precut to your dimensions at the factory. -
Q: What colors are available?
A: Standard colors are yellow, green, and gray. Custom colors (e.g., safety orange, blue) are available with a minimum order quantity. -
Q: What is the typical lead time?
A: For standard panels, 15–20 working days. Custom orders may require 25–30 days. We expedite urgent orders when possible. -
Q: Do you provide installation accessories?
A: Yes, we offer stainless steel clips, bolts, and hold-down clips compatible with our grating. We also provide installation guidelines. -
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We provide free samples (300mm x 300mm) with shipping cost to be covered by the customer. Contact our sales team for details.
